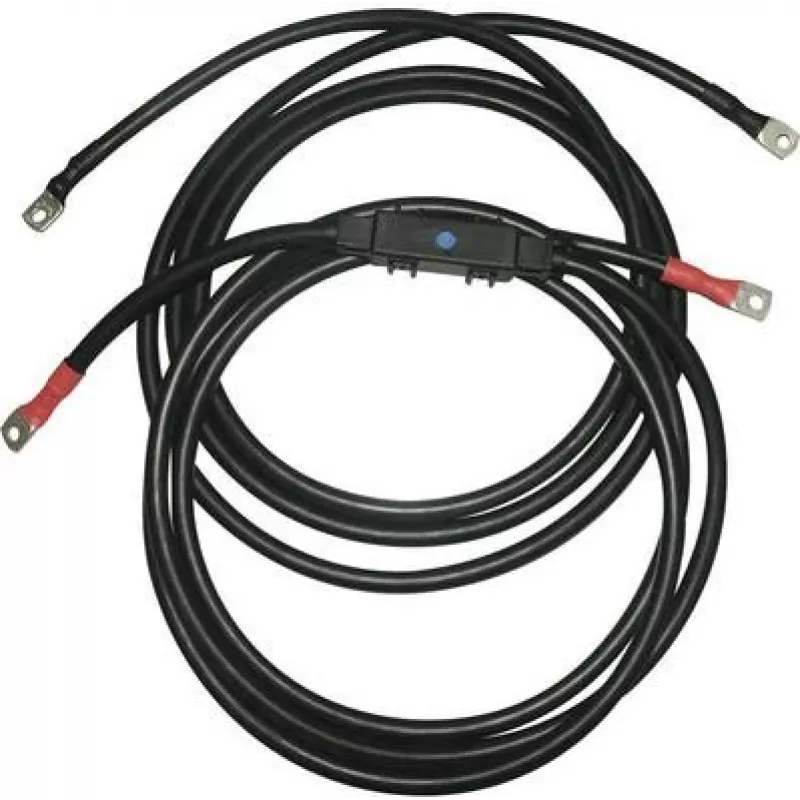

Conjunto de cabos IVT SW Serie 1 m 25 mm² para ligação de inversor, modelo 421002

The IVT cable set SW Series 1 m 25 mm² for inverter connection, model 421002 is a short, heavy-gauge power cable assembly designed to provide a reliable DC connection between an inverter and its battery or power distribution point. With a 1-metre length and 25 mm² conductor cross-section, this cable set is intended for installations where a robust low-resistance connection is required for high-current inverter systems compatible with Voltcraft-style terminals.

Advantages

This cable set combines a compact length with a substantial 25 mm² conductor to minimize voltage drop and heat build-up in high-current applications. The 1 m length reduces excess cable routing and helps maintain neat installations. Designed for inverter connection use, the assembly offers durable conductors and terminations suited to frequent power cycling and continuous operation under load. The construction supports safe current transfer and simplifies connections in tight or confined spaces.

Suitable for

Key specifications

How to use

Before installation, verify polarity and ensure system power is disconnected. Measure and confirm the 1 m length suits your layout and that a 25 mm² conductor meets the current rating of your inverter system. Strip the conductor ends as required by the inverter and battery terminals, attach appropriate cable lugs or connectors, and tighten terminations to the manufacturer’s torque specifications. Route the cable away from sharp edges and heat sources, and secure it to prevent movement. Recheck polarity and connections before restoring power.

Recommendations

Use this IVT cable set for short, high-current DC connections where minimizing voltage drop is important. Match the cable cross-section to the inverter’s continuous current rating and follow the inverter and battery manufacturer’s guidance for terminal preparation and torque values. If the installation requires longer runs or different environmental protection, select cables and fittings rated for those conditions.
