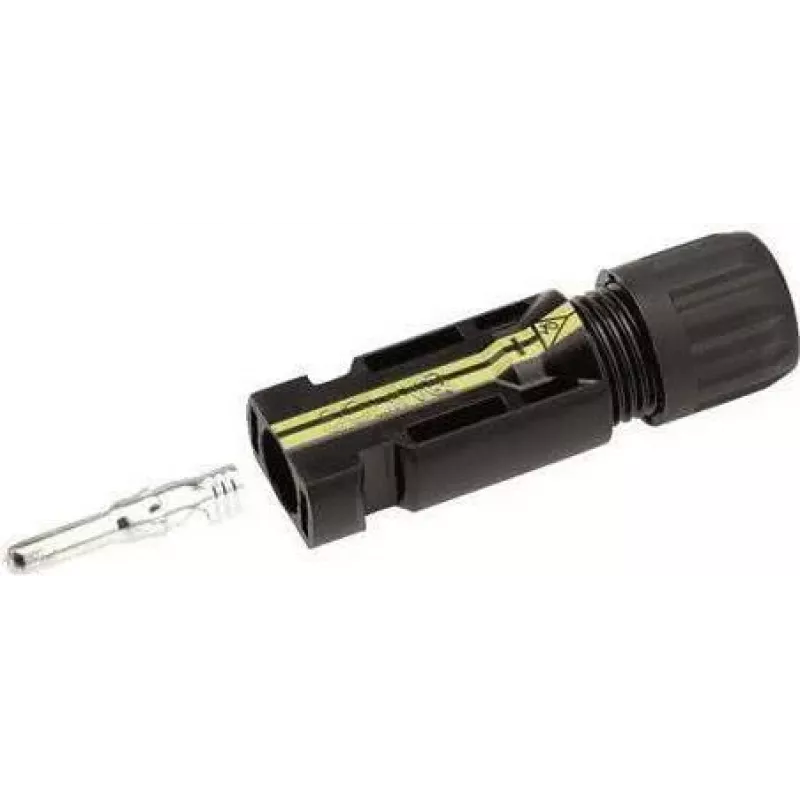

Conjunto de conectores solares cimco 188010 4-em-1 – kit de conectores para instalações fotovoltaicas

The cimco 188010 4-in-1 solar connector set is a connector kit designed for photovoltaic installations, providing four connector types or functions in a single kit to create secure electrical connections between solar panels and system wiring. The set supports assembly, maintenance and repair tasks in solar arrays and is intended to simplify wiring workflows while ensuring stable electrical contact under typical outdoor conditions.

Advantages

The kit combines multiple connector types and common accessories in one package, reducing the need to source separate parts. Components are engineered for reliable contact and strain relief, facilitating durable connections in rooftop or ground-mounted solar systems. Compact packaging and a clear selection of parts help speed up installation and maintenance operations while minimizing downtime.

Suitable for

Key specifications

How to use

Select the connector type required for the specific wiring task and prepare the cable ends according to standard PV installation practice: strip insulation to the recommended length, inspect conductors for damage, and insert conductors into the connector contacts. Secure contacts and housings as directed, verify correct polarity, and perform a pull test and visual inspection to confirm proper mechanical and electrical connection. Use appropriate tools for crimping or tightening when the connector design requires it and follow safety procedures for working on live circuits or isolated systems.

Recommendations

Store the kit in a dry place until installation and use only components that match the cable cross-section and polarity of the PV system. Follow local electrical codes and manufacturer guidance for torque settings, sealing methods and UV-resistant cable routing to maintain long-term performance.
