InLine 94001 conector de fios Standard4/MC4/PV4 preto ficha/conector fêmea

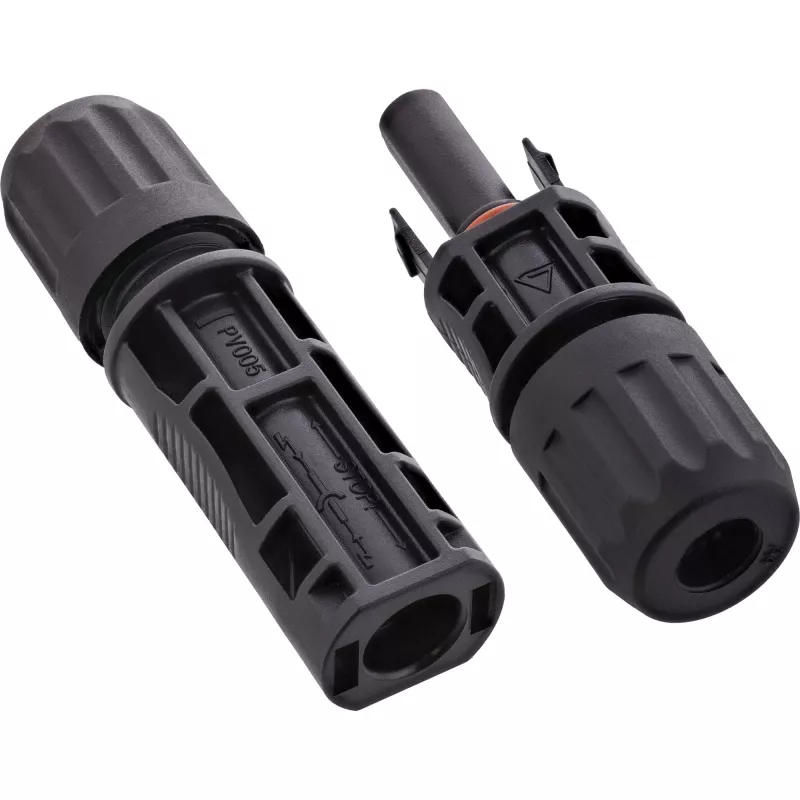

The InLine 94001 wire connector is a photovoltaic plug connector set featuring Standard4/MC4/PV4 compatible male and female plugs and sockets. Designed for use with solar panel systems and related cabling, the connector set is compact and lightweight (24 g) while meeting RoHS and TÜV requirements for safety and material compliance.

Advantages

The connector set combines Standard4/MC4/PV4 compatibility with a compact design that simplifies handling and installation. Its low weight makes it easy to carry and position during assembly. Compliance with RoHS and TÜV provides assurance of material and safety standards appropriate for photovoltaic applications.

Suitable for

• Connecting solar panels in photovoltaic arrays
• Repairs and replacements of MC4-style connectors
• Use in residential and small commercial solar installations

Key specifications

• Brand: InLine
• Model / MPN: 94001

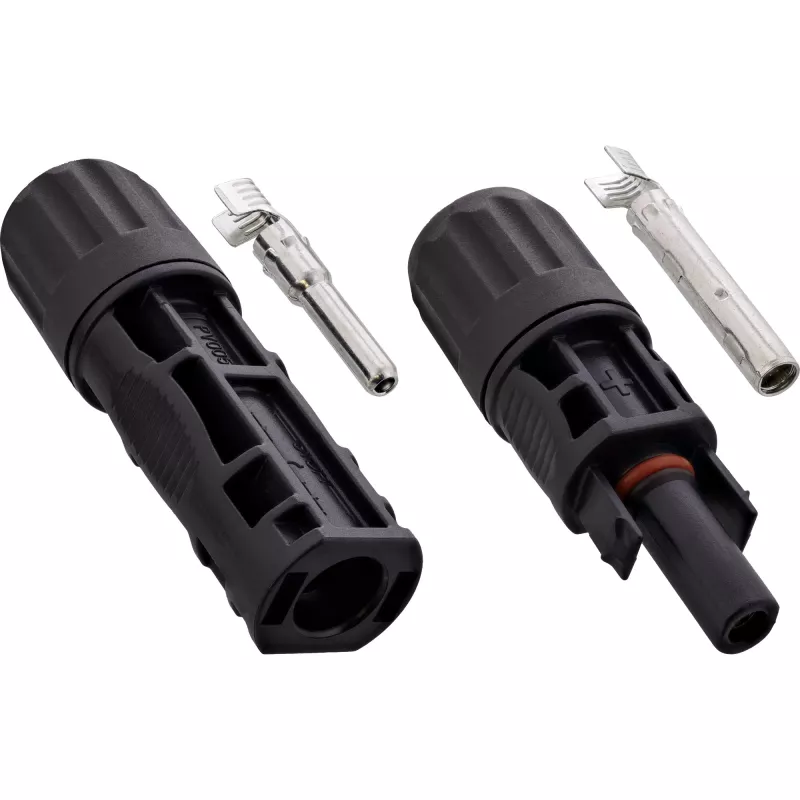

• Type: Photovoltaic plug connector set (Standard4/MC4/PV4 male & female)
• Weight: 24 g
• Compliance: RoHS, TÜV
• EAN: 4043718334780

How to use

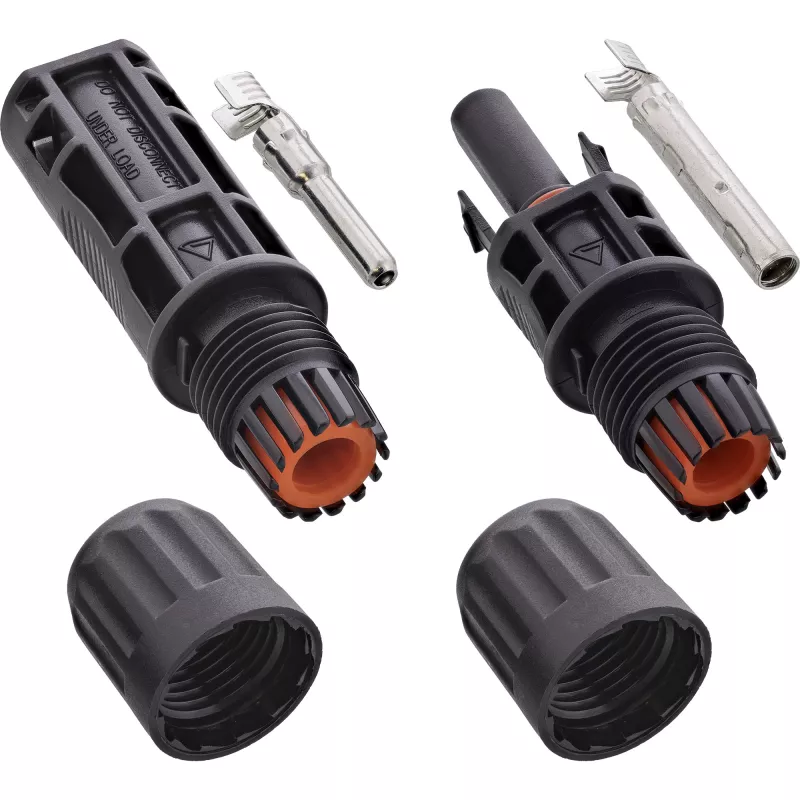

Match the male and female Standard4/MC4/PV4 plugs and sockets, ensuring correct polarity before making the connection. Strip the cable to the recommended length for your system, insert and secure conductors according to the connector’s assembly method, and verify a firm mechanical and electrical connection. Follow local electrical codes and manufacturer instructions when integrating the connectors into a photovoltaic system.

Recommendations

Use the InLine 94001 connectors only with appropriately rated PV cables and within the environmental and electrical limits of your installation. Inspect connectors periodically for signs of wear, corrosion, or loose contacts and replace them if necessary. For permanent or high-current installations, ensure connections are made by qualified personnel.
