Conjunto de extensão de cabos trançados Kolink Core Adept — 20+4 pinos, 8 pinos, 4+4 pinos, 3×6+2 pinos, azul, revestimento PET

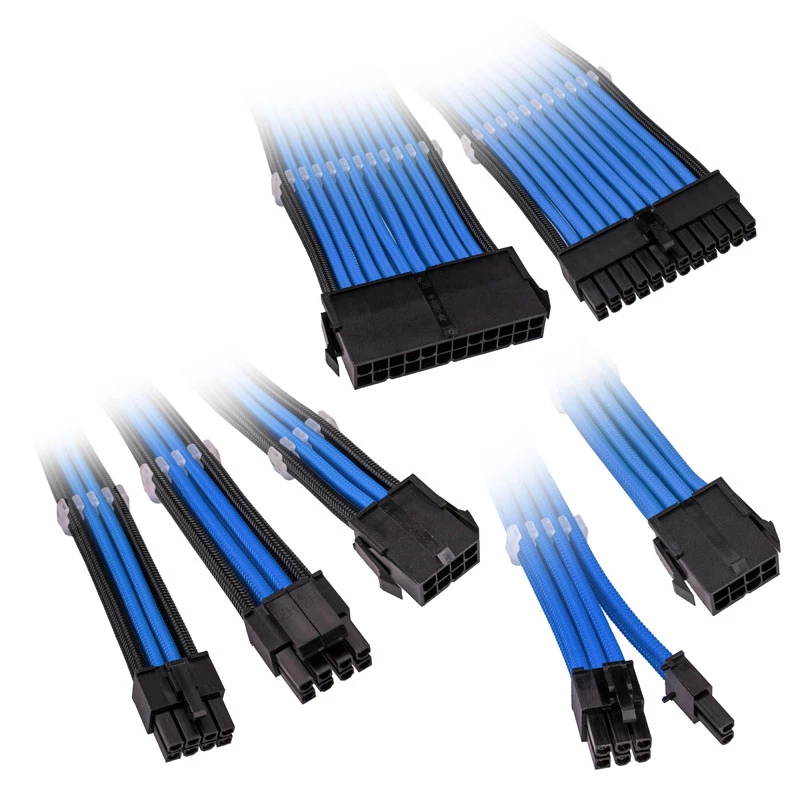

Kolink Core Adept braided cable extension kit provides six sleeved PSU extensions in blue designed for ATX custom PC builds. The set contains one 20+4 pin (300 mm) main connector, one 8‑pin (300 mm) CPU/GPU connector, one 4+4‑pin (300 mm) EPS connector and three 6+2‑pin (350 mm) PCIe extensions. Conductors are copper with a PET (Polyethylene Terephthalate) braided jacket that improves flexibility and protects the inner wiring while eliminating the need for heatshrink. With 16 AWG wire gauge, these extensions are intended to support higher-wattage configurations and provide reliable conductivity for modern GPUs, CPUs and PSUs.

Advantages

The braided PET jacket delivers a clean, uniform finish and increased abrasion resistance compared with bare cables. 16 AWG copper conductors offer lower resistance and better heat tolerance than thinner wires, supporting higher current loads typical of gaming and workstation systems. Pre‑installed cable combs (three per cable) plus a spare comb included with each cable simplify cable routing and produce tidy, symmetrical cable runs. The kit’s mixed lengths accommodate typical case layouts and help improve airflow and overall system aesthetics.

Suitable for

• ATX PC builds requiring extended PSU cable reach and improved cable routing
• Systems with modern GPUs and CPUs where 16 AWG conductors are preferred
• Users who want uniform braided cable aesthetics and easier cable management

Key specifications

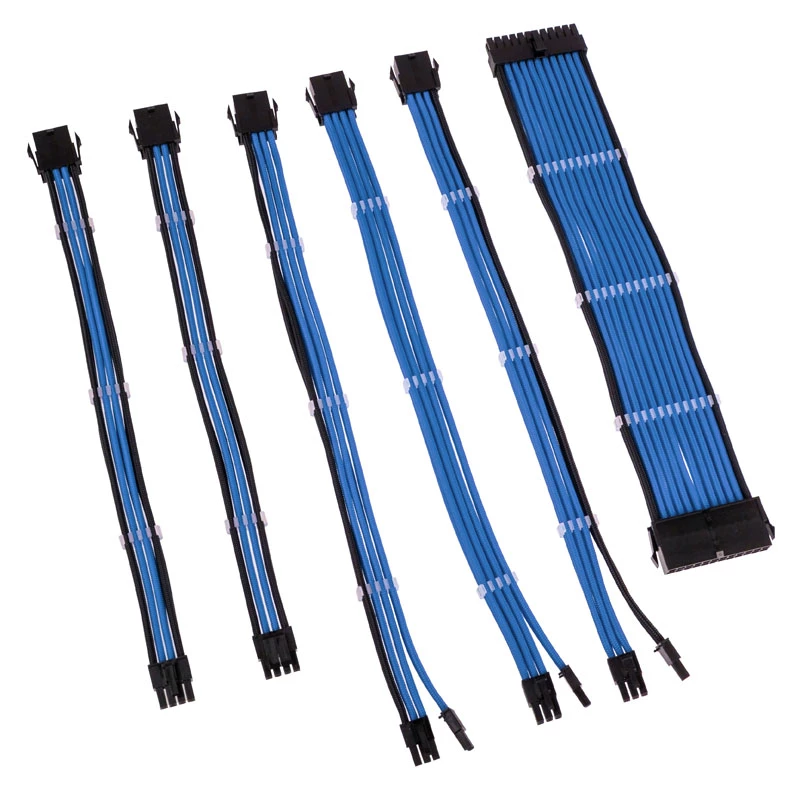

• Contents: one 20+4 pin extension (300 mm), one 8‑pin extension (300 mm), one 4+4‑pin extension (300 mm), three 6+2‑pin extensions (350 mm)
• Conductor material: copper
• Wire gauge: 16 AWG
• Jacket material: PET (braided)
• Colour: blue (braided sleeve)

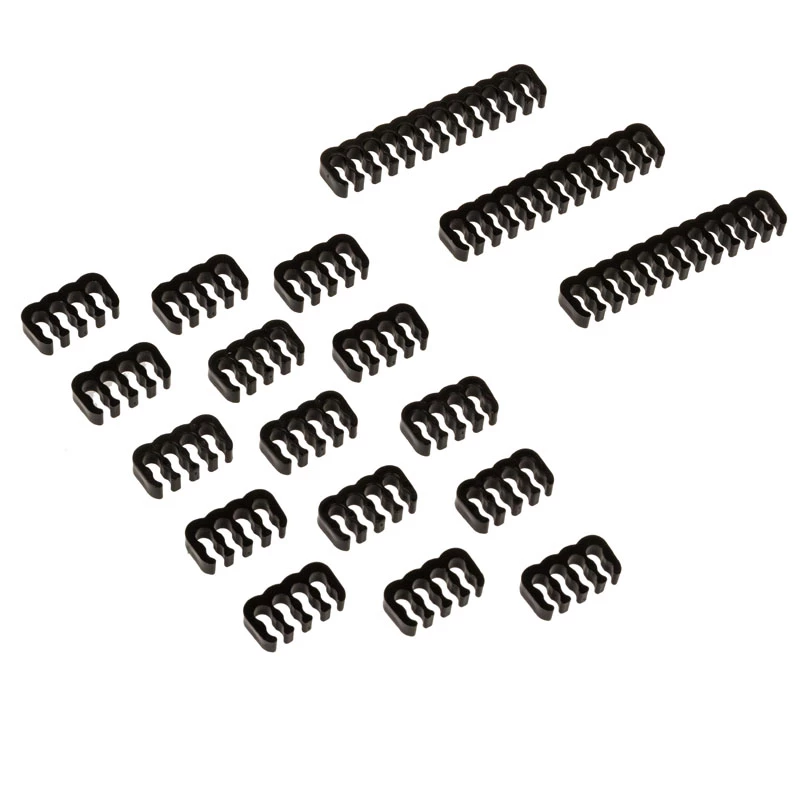

• Includes pre‑installed cable combs and one spare comb per cable

How to use

Power down the PC and unplug the PSU before installation. Disconnect the original PSU connectors from the motherboard and graphics cards, then plug the appropriate Kolink Core Adept extensions to the PSU-side connectors and the matching connectors to the motherboard or PCIe power inputs. Use the included combs to align individual sleeved wires and route the cables through the case to minimise obstruction to fans and components. Confirm all connections are secure before powering the system on.

Recommendations

Use these extensions with compatible ATX power supplies and components. Ensure connectors are fully seated and avoid sharp bends near the connector ends. For best airflow and appearance, route cables behind the motherboard tray where possible and secure them with the provided combs or cable ties. Do not modify or splice the cables; if higher current capacity is required, consult PSU specifications and select appropriate cabling.
