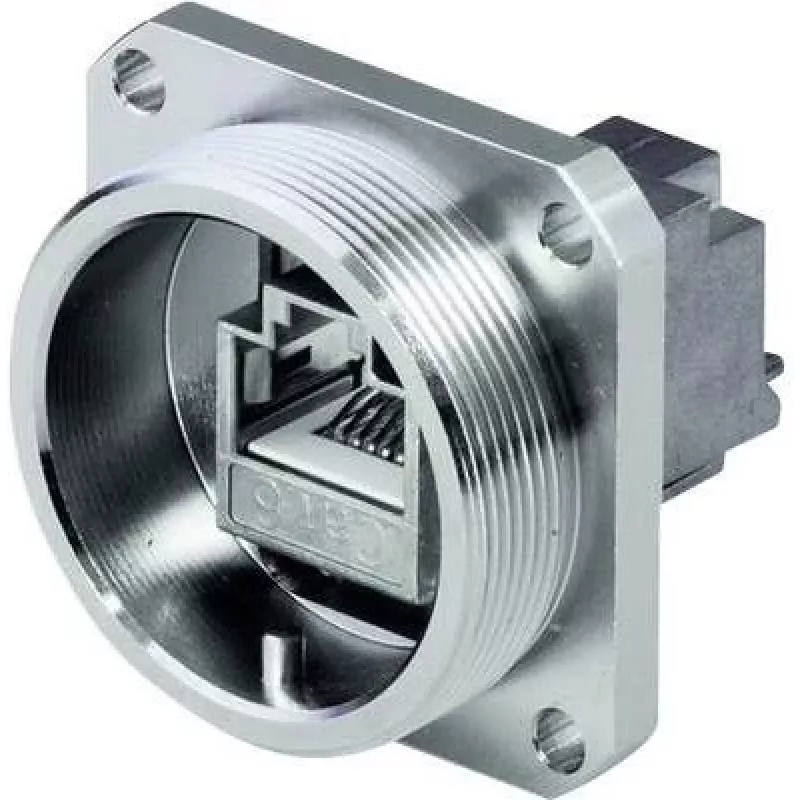

Conjunto de flange TOC Telegärtner IP68 AMJ Kupplung K Cat.6 - 1 unid. J60020A0002

Industrial Ethernet connections in harsh environments often fail due to dust, moisture, and mechanical stress. The Telegärtner TOC Flange Set IP68 provides a robust, sealed mounting solution for AMJ K Cat.6 modules, ensuring reliable data transmission even under extreme conditions.

Who is it for

This flange set is ideal for system integrators, panel builders, and network engineers who need to deploy high-performance Ethernet connections in industrial machinery, outdoor enclosures, or other demanding locations where protection against water and dust is critical.

Main features

• IP68 protection when mated and installed, safeguarding against dust and water immersion
• Compatible with Telegärtner AMJ K Cat.6 modules for reliable gigabit and 10-gigabit Ethernet
• Die-cast zinc housing for durability in industrial environments
• Flange mounting with screw fastening for secure panel installation
• Supports 10GBASE-T for high-speed data transfer

Specifications

• Product type: Flange set for industrial coupler
• Ethernet category: Cat.6
• IP rating: IP68 (when mated and installed)
• Mounting type: Flange mount
• Internal connector: RJ45 via AMJ K module
• Shielding: Shielded
• Housing material: Die-cast zinc
• Operating temperature: -40°C to +70°C
• Number of ports: 1
• Mating cycles: >750
• Transmission performance: Supports 10 Gigabit Ethernet (10GBASE-T)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best results, pair this flange set with Telegärtner AMJ K Cat.6 modules and use appropriate sealing gaskets to maintain the IP68 rating. Ensure proper torque on mounting screws to avoid compromising the seal.
