Conjunto de instrumentos de medição elétrica VOLTCRAFT ET-200+VC35 para motores e acionamentos, teste de isolamento até 20 GΩ, CAT IV

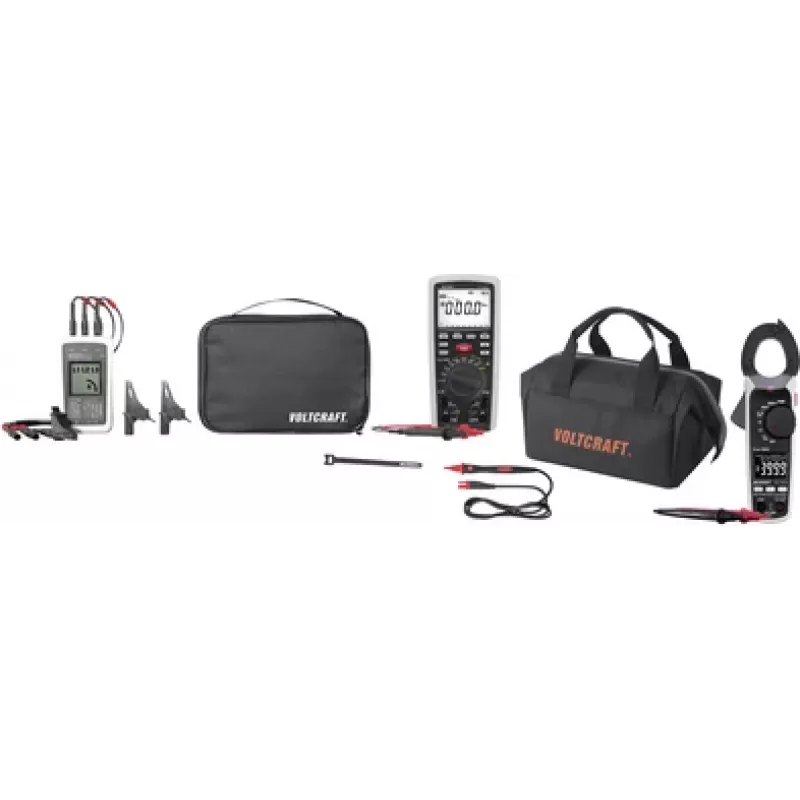

Measure insulation resistance up to 20 GΩ and AC/DC current up to 600 A with the VOLTCRAFT ET-200+VC35-Set. This set combines the VC-35 insulation tester and the ET-200 clamp meter, both essential for motor and drive maintenance.

Overview

The VC-35 insulation tester offers test voltages of 50 V, 100 V, 250 V, 500 V, and 1000 V, with a maximum insulation resistance of 20 GΩ. It also measures polarization index (PI) and dielectric absorption ratio (DAR), along with AC/DC voltage, resistance, and continuity. The ET-200 clamp meter features true RMS measurement for AC current up to 600 A and DC current up to 600 A, with a jaw opening of approximately 30 mm. It also measures AC/DC voltage up to 1000 V, resistance, capacitance, frequency, temperature, and performs diode tests and non-contact voltage detection.

What stands out

• High insulation test voltage up to 1000 V
• True RMS clamp meter for accurate AC measurements
• CAT IV 600 V safety rating on the insulation tester
• Includes polarization index and dielectric absorption ratio functions
• Backlit LCD displays on both instruments

Technical details

• VC-35 insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• VC-35 max insulation resistance: 20 GΩ
• VC-35 safety rating: CAT IV 600 V / CAT III 1000 V
• ET-200 max AC/DC current: 600 A
• ET-200 max AC/DC voltage: 1000 V
• ET-200 jaw opening: approx. 30 mm
• ET-200 measurement type: true RMS
• ET-200 safety rating: CAT III 600 V
• Display: LCD with backlight
• Power: battery operated (batteries included)

Our verdict

A comprehensive set for professionals working on motors and drives, offering high-voltage insulation testing and versatile clamp measurements in one package.
