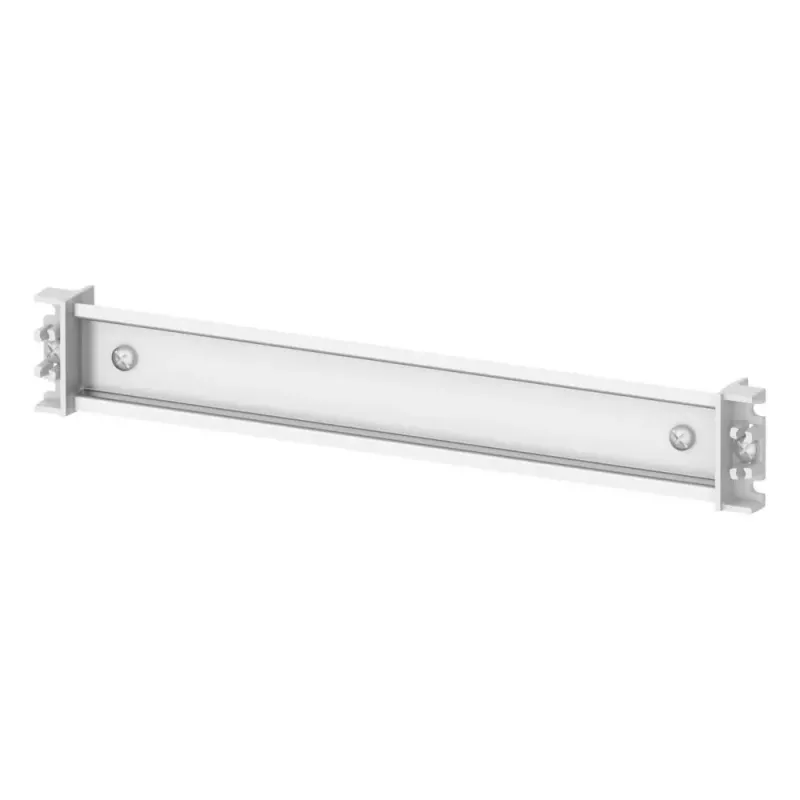

Conjunto de isolamento para calha DIN EATON ZSD-ISO/Set/HTS (257348)

For control cabinet builders who need reliable protection against accidental contact with live parts, the EATON ZSD-ISO/Set/HTS offers a tool-free insulation solution for TS 35 DIN rails. Unlike generic insulating strips, this kit combines two end pieces and an intermediate piece made of grey polyamide, ensuring complete coverage without compromising the rail's mounting function.

Highlights

• Clip-on installation – no tools required
• Made of polyamide (PA) with UL 94 V-0 flammability rating
• Operating temperature range from -40 °C to +100 °C
• Provides protective insulation (Class II) for DIN rails
• Compatible with TS 35 rails per EN 60715

In daily use

The kit's chemical and thermal resistance makes it suitable for demanding industrial environments. Its grey colour blends discreetly into standard cabinet interiors, while the snap-on design allows quick retrofitting or replacement during maintenance.

Full specifications

• Product type: DIN Rail Insulation Kit
• Material: Polyamide (PA)
• Colour: Grey
• Mounting type: Clip-on
• Kit contents: 2 end pieces, 1 intermediate piece
• Insulation class: Protective Insulation (Class II)
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +100 °C
• Compatibility: TS 35 DIN rails (EN 60715)

Final note

EATON's ZSD-ISO series is engineered for safe, code-compliant cabinet assembly without adding bulk to the rail.
