Conjunto de montagem DELOCK D-Sub 15 pinos fêmea para RJ12 fêmea, vermelho

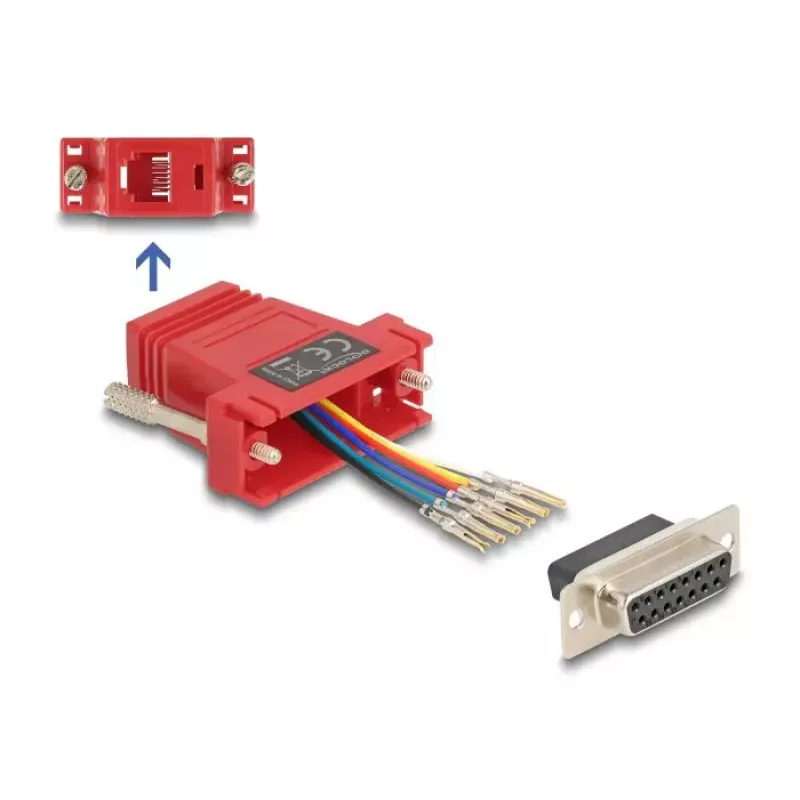

This DELOCK D-Sub 15 pin female to RJ12 female assembly kit in red provides the parts needed to create a compact adapter between an HD15 (D-Sub 15) connector and a 6-position RJ12 cable. The kit is intended for custom cable assemblies, signal or serial adaptations and repair tasks where a D-Sub to RJ12 interface is required. Contacts can be arranged individually inside the D-Sub housing and the sockets click into place to ensure stable electrical contact.

Advantages

The assembly kit allows flexible assignment of the D-Sub 15 interface pins to match specific wiring needs. A snap-fit mechanism secures the sockets inside the D-Sub housing for reliable contact without soldering directly to the shell. The red housing makes the finished adapter visually distinguishable in multi-cable environments. The kit is supplied as a single-piece solution suitable for DIY assembly or professional repair work.

Suitable for

• Custom cable assemblies linking HD15 D-Sub ports to RJ12 lines
• Signal routing or serial adaptations using telephone/ISDN cables
• Repair or replacement of damaged D-Sub to RJ12 adapters
• Prototyping and low-volume, on-site connector modifications

Key specifications

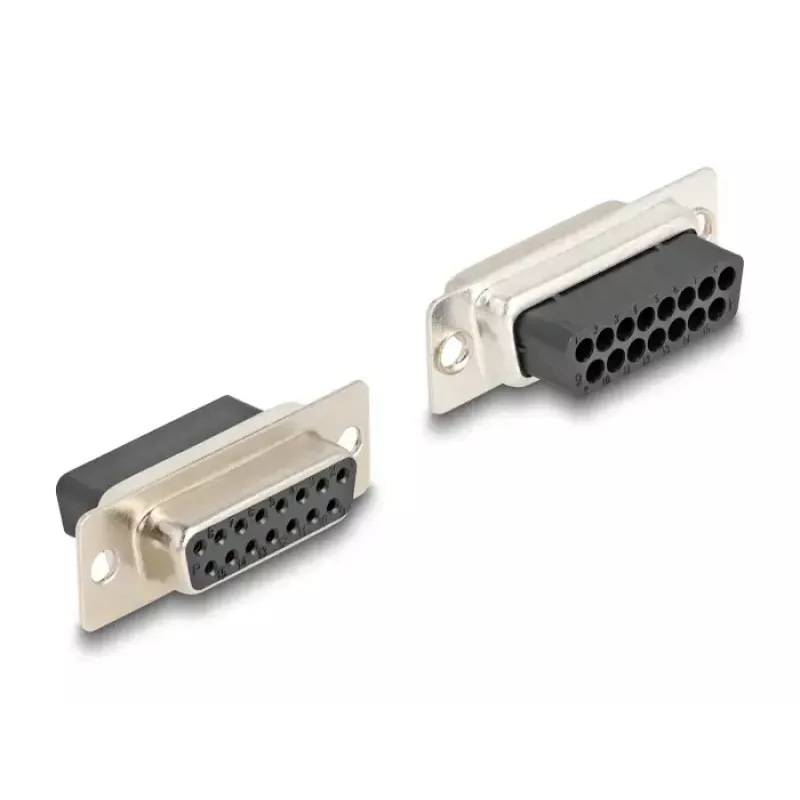

• Connector type (one end): D-Sub 15-pin, female (HD15)
• Connector type (other end): RJ12, female (6-position)
• Housing colour: red
• Packaging: assembly kit, contains components for one adapter
• Contact insertion method: snap-in sockets allowing individual pin assignment

How to use

Prepare the RJ12 cable by stripping the outer jacket and terminating the conductors as required. Arrange the D-Sub contact inserts in the housing according to the desired pin assignment, then press the RJ12 and D-Sub sockets into the housing until they click into place. Verify continuity and correct wiring with a multimeter before connecting to equipment. Follow any applicable safety procedures for working with signal or serial lines and ensure connectors are seated firmly to avoid intermittent contact.

Recommendations

Use the kit for low-voltage signal and serial connections only; avoid exposure to moisture and mechanical strain on the cable-to-housing junction. Confirm pin mapping against your equipment documentation before finalising the assembly to prevent miswiring. For frequent connect/disconnect cycles, consider strain relief or cable clamping to extend service life.
