Conjunto de montagem DeLOCK D-Sub 25 pinos macho para RJ12 fêmea preto

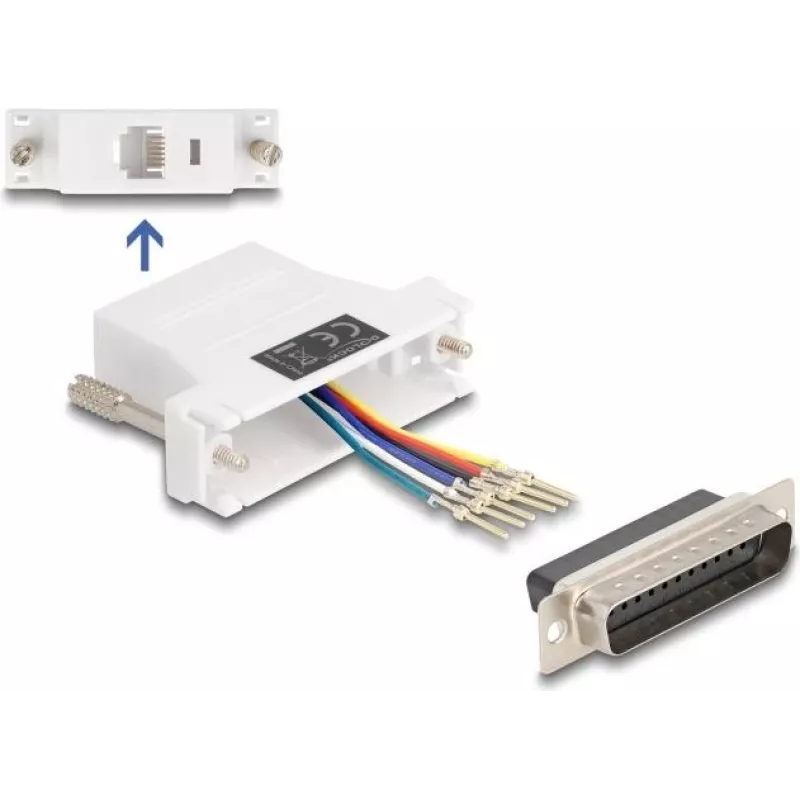

The DeLOCK D-Sub 25 pin male to RJ12 female Assembly Kit is an adapter kit that lets you wire a 25-pin D-Sub (DB-25) connector to an RJ12 cable. The kit provides a D-Sub 25 male housing and an RJ12 female socket so the serial D-Sub interface can be assigned individually and connected via ISDN, telephone or RJ12 cable. The product is black and intended for reliable, customisable serial connections in installations and devices.

Advantages

This assembly kit enables flexible assignment of D-Sub 25 contacts and straightforward insertion of contacts into the D-Sub housing according to required pinouts. The RJ12 female socket snaps into place with a slight click to ensure reliable contact. The modular design supports custom wiring and durable connections for field installations or repairs.

Suitable for (tasks / use cases)

• Wiring or repairing serial D-Sub 25 interfaces
• Connecting devices via ISDN, telephone or RJ12 cable
• Custom pinout assignments for industrial or legacy equipment

Key specifications

• Connector 1: D-Sub 25 (male housing, assembly kit)
• Connector 2: RJ12 (female socket)
• Product colour: Black
• Manufacturer: DELOCK, MPN: 67093, EAN: 4043619670932

How to use

Select the required pin assignment for the D-Sub 25 contacts and insert the contacts into the D-Sub housing according to the chosen wiring diagram. Terminate the corresponding wires on the RJ12 female socket and snap the socket into the D-Sub housing until it clicks to secure the connection. Verify pin continuity and correct wiring before connecting to equipment.

Recommendations

For reliable operation, use appropriate cabling (ISDN/telephone/RJ12) and follow device-specific pinout diagrams. Check connections with a multimeter after assembly and avoid exposing the assembled connector to excessive mechanical stress or moisture.
