Conjunto de montagem em calha DIN Digitus AN-25188

The DIN rail mounting set from DIGITUS® is designed for mounting desktop patch panels in electrical distribution boxes and cabinets. The kit includes two DIN rails and two M5 screws for straightforward attachment to standard DIN rails. The housing is die-cast metal, providing a robust solution suitable for high operating and storage temperatures and manufactured to meet relevant EU requirements.

Advantages

The mounting set offers easy and quick installation on a DIN rail, a compact design that fits patch panels and rack units in cabinets, and durable die-cast metal construction for long-term reliability. The product meets international cabling standards and holds EU certifications.

Key specifications

• Manufacturer: DIGITUS®

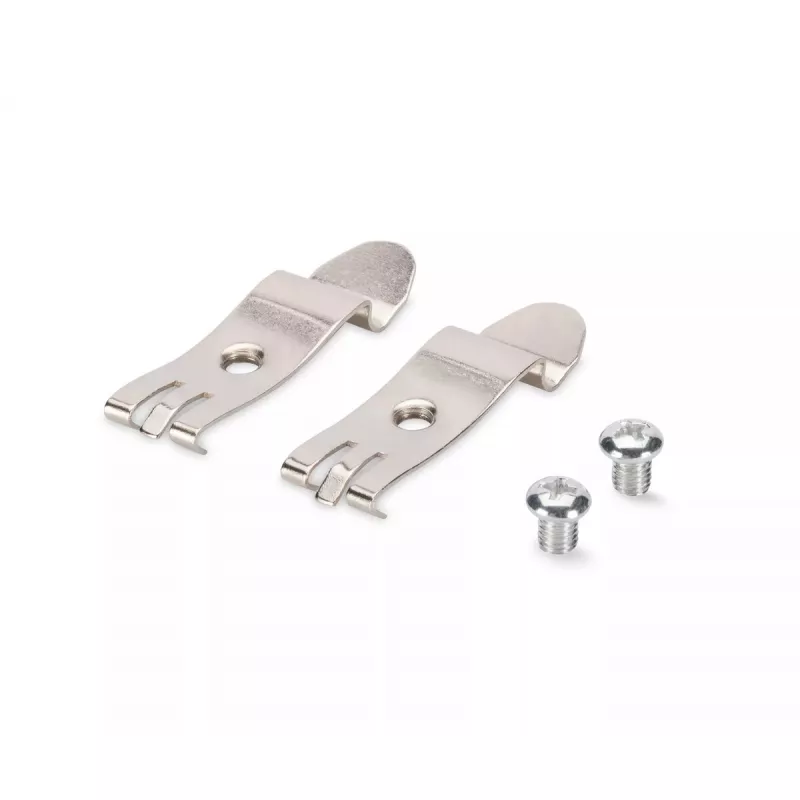

• Included parts: 2x DIN rails, 2x M5 screws
• Material: die-cast metal
• Compatibility: desktop patch panels for installation in distribution boxes and cabinets
• Temperature resistance: suitable for high operating and storage temperatures
• Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• Certification: complies with EU standards

How to use

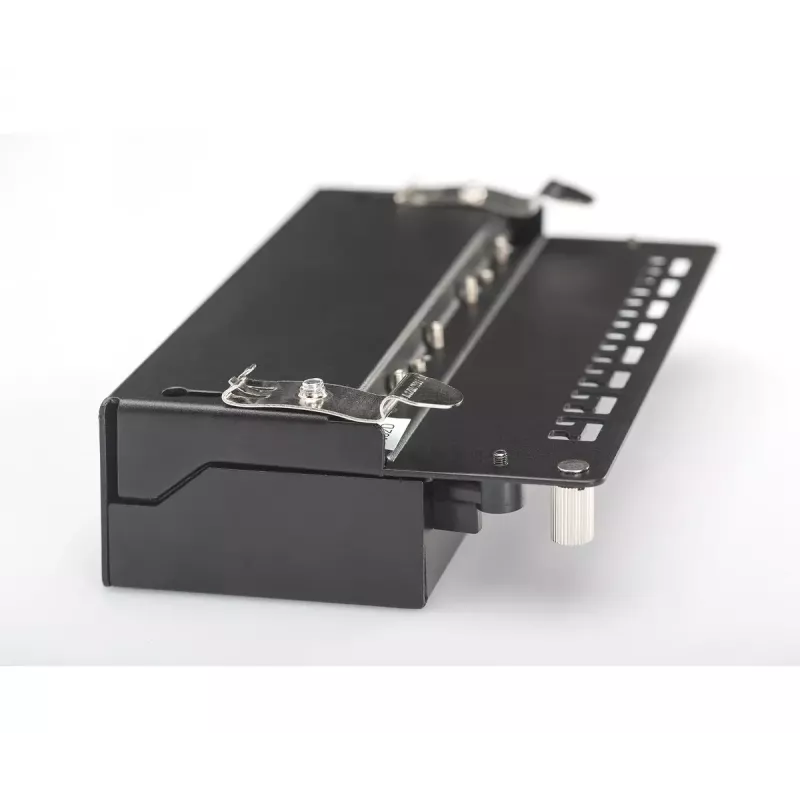

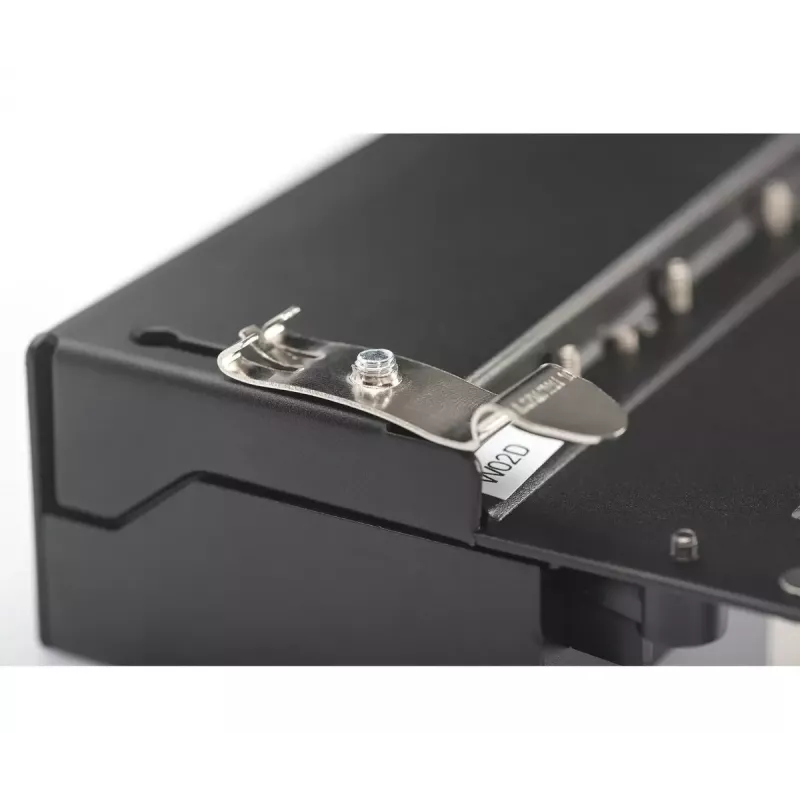

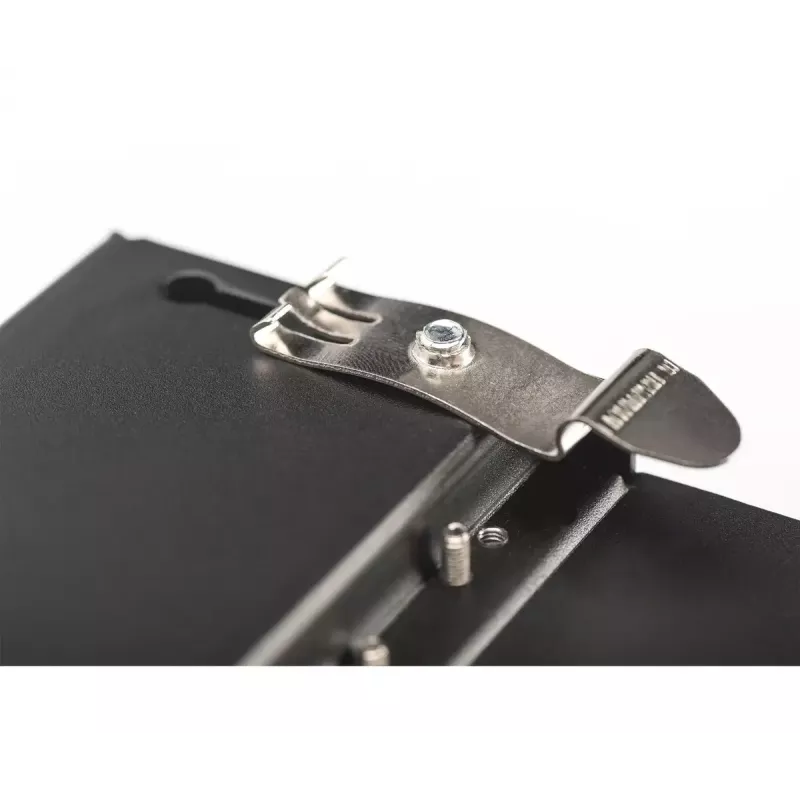

Position the DIN rails inside the distribution box or cabinet at the required height, align the patch panel with the rails, and secure the panel using the supplied M5 screws. Ensure the rails are fixed firmly to the cabinet structure and that the panel is level before completing the installation. Verify that all connections and mechanical fastenings comply with local installation practices and safety requirements.

Recommendations

For safe and reliable operation, use appropriate tools when fitting the DIN rails and screws, follow cabinet manufacturer guidelines, and verify compatibility with the specific desktop patch panel model before installation.
