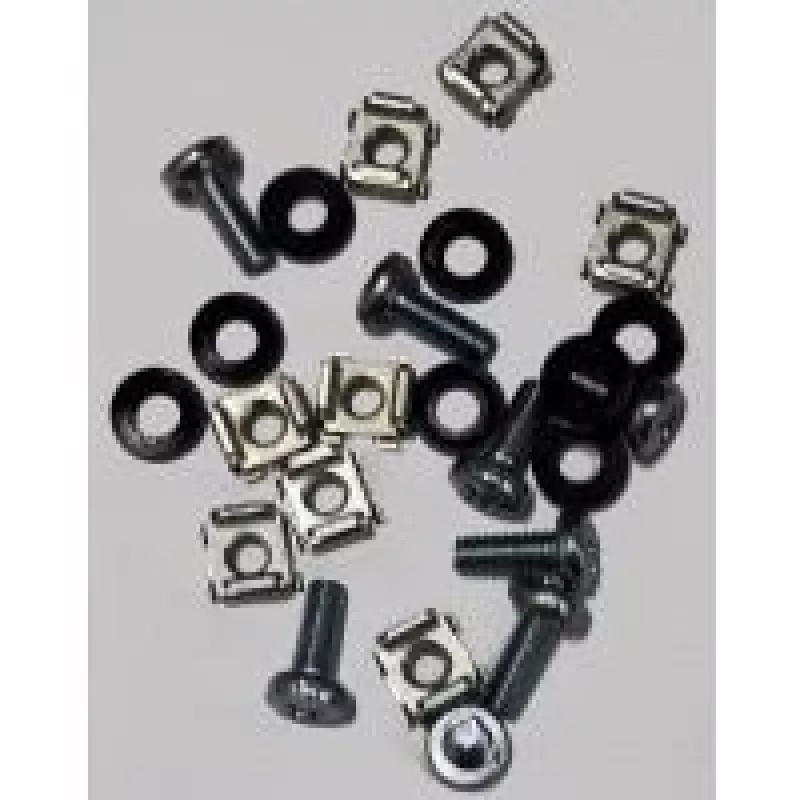

Conjunto de montagem SCHROFF 21100-435 — 1 unid. acessório de montagem para racks e caixas de equipamento

The SCHROFF 21100-435 mounting set is a single-piece accessory designed to install and secure electronic equipment inside 19-inch racks and enclosures. Supplied as one mounting component, it provides a compatible mechanical interface from the SCHROFF series for use with industrial cabinets, telecommunications racks and laboratory or service installations. The design focuses on mechanical stability and straightforward integration with standard rack mounting points.

Advantages

This mounting set offers robust fixation with a compact form factor that minimizes occupied space while ensuring consistent alignment of installed equipment. Its compatibility with common rack and enclosure standards simplifies installation and reduces the need for additional adapters. The single-piece design reduces assembly time and lowers the risk of missing parts during maintenance or retrofitting.

Suitable for

• Mounting servers, network switches and telecommunications modules in 19" racks
• Securing instrumentation and measurement devices in laboratory cabinets
• Service panels and field installations in industrial enclosures
• Retrofit upgrades where a reliable mechanical mounting point is required

Key specifications

• Quantity: supplied as one mounting component
• Compatibility: designed for standard 19" rack and enclosure mounting systems
• Function: provides mechanical attachment and alignment for electronic equipment
• Construction: single-piece accessory intended for straightforward installation

How to use

Position the mounting set at the intended rack or enclosure mounting point and align it with the rack’s threaded or captive nut positions. Secure the component using appropriate rack screws or hardware compatible with your enclosure. Confirm alignment of the equipment to be mounted, then attach the equipment to the mounting set ensuring even contact and firm fixation. Follow any site-specific grounding or earthing procedures required for your installation.

Recommendations

Use appropriate rack screws and torque settings for the enclosure type to prevent thread damage. Verify load capacity and distribute weight across multiple mounting points for heavier equipment. Inspect fastenings during routine maintenance and replace the mounting component if visible deformation or corrosion is present.
