Conjunto de suporte para patch panel agfeo para centrais telefónicas ES 730 IT e ES 770 IT, acessórios de montagem

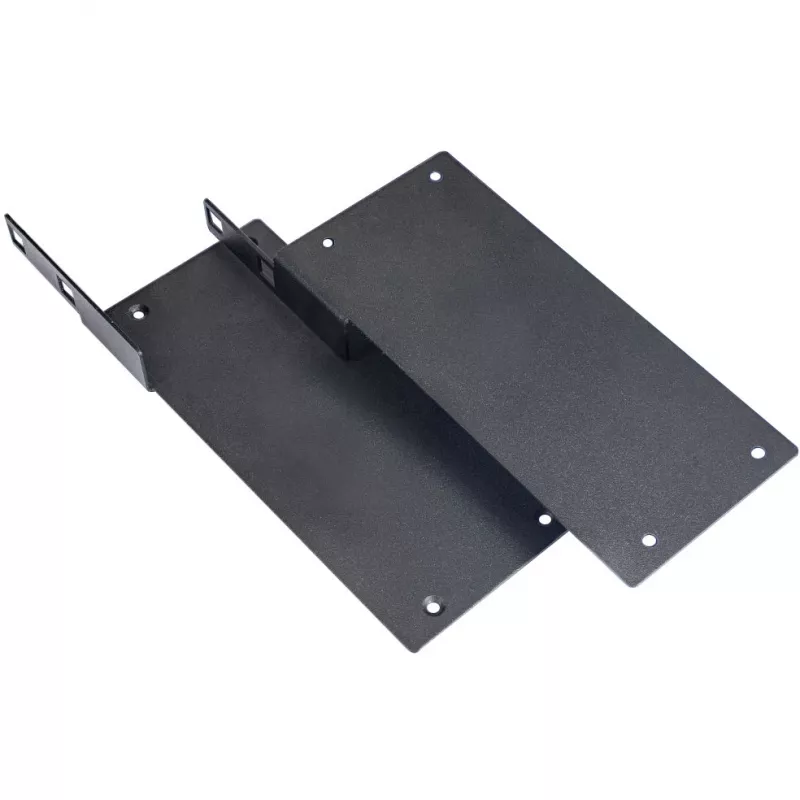

Holder set for mounting a patch panel in agfeo ES 730 IT and ES 770 IT telephony systems. This mounting accessory contains the brackets and fittings required to attach a compatible patch panel to the chassis or rack locations designed for the ES 730 IT and ES 770 IT units. The set is intended for professional installation to help organize structured cabling and secure telephony connections within installations using agfeo systems.

Advantages

The holder set provides a compact and purpose-built mounting solution for patch panels used with agfeo ES 730 IT and ES 770 IT systems, reducing installation time by supplying compatible brackets and fixings. It ensures a stable and secure attachment of the patch panel to the system chassis or rack points, helping to maintain tidy cable routes and preventing strain on connections. The accessory is designed to match the mechanical interfaces of the specified agfeo units to avoid ad hoc modifications during setup.

Suitable for

• Professional telephony installations using agfeo ES 730 IT
• Professional telephony installations using agfeo ES 770 IT
• System integrators and installers organizing structured cabling in small to medium business PBX racks
• Securing modular patch panels adjacent to agfeo telephone system chassis

Key specifications

• Compatibility: designed for mechanical mounting points of agfeo ES 730 IT and ES 770 IT telephony units
• Contents: mounting brackets and associated fittings for patch panel installation
• Mounting type: chassis/rack attachment compatible with designated agfeo chassis locations
• Material: metal components for secure fixation and mechanical stability
• Intended use environment: indoor telecom equipment racks and cabinets

How to use

Position the bracket assembly at the designated mounting points on the agfeo ES 730 IT or ES 770 IT chassis or rack location. Secure the mounting brackets using the supplied fittings and tighten fasteners to the recommended torque for rack hardware. Attach the patch panel to the installed brackets, route cabling to maintain service loops and minimize strain on connectors, and verify that all connections are seated correctly. Follow standard safety practices: power down equipment if required by local procedures and avoid forceful insertion of connectors.

Recommendations

Use the holder set together with compatible patch panels sized to match the mounting bracket layout. Inspect fasteners periodically for retention and check cable routing to prevent undue stress on ports. For professional installations, combine this accessory with cable management panels and labeling to maintain clarity of telephony connections.
