Consola de rack ATEN CL5716MW 17,3 polegadas (43,9 cm) FHD 1920×1080 TFT-LCD, teclado e rato USB/PS/2, VGA, 1U metal/plástico

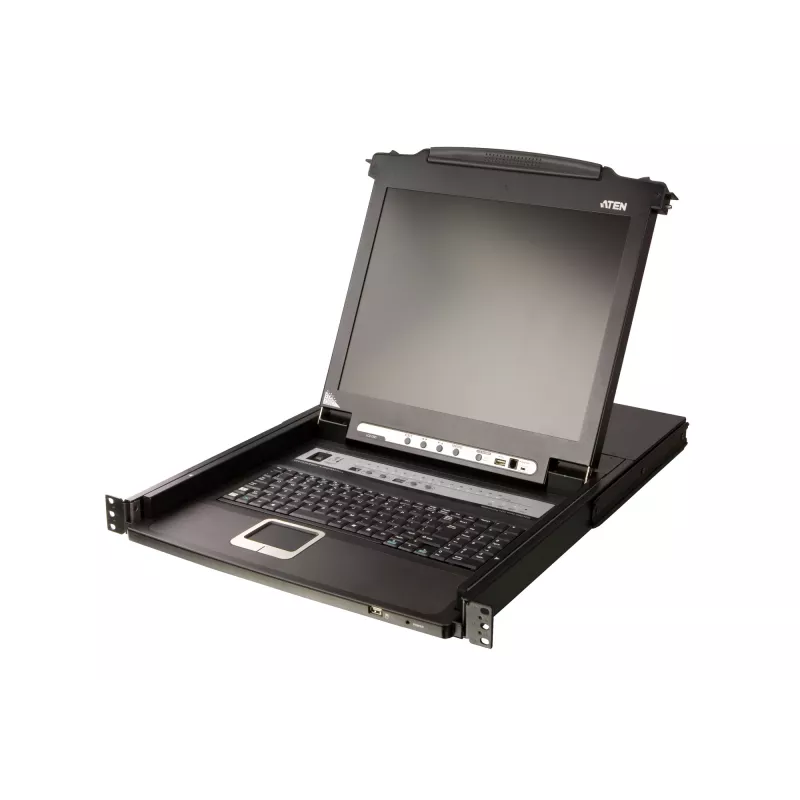

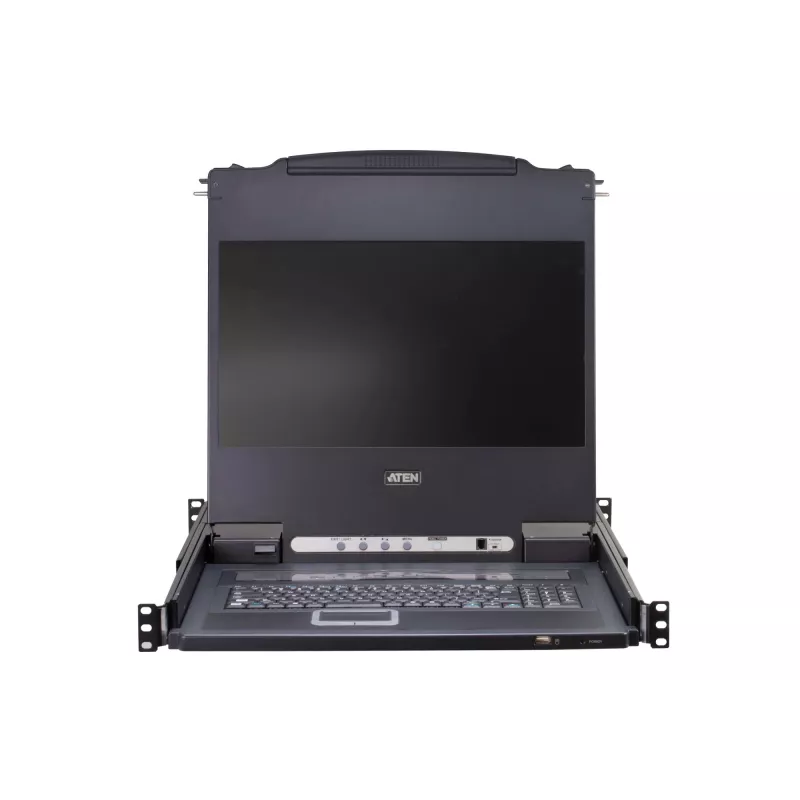

ATEN CL5716MW is a 1U rack-mount console combining a 17.3" (43.9 cm) FHD 1920×1080 TFT-LCD display with an integrated keyboard and touchpad in a metal/plastic Slideaway chassis. Designed for local management of servers and equipment in cabinets and control rooms, the unit supports both USB and PS/2 keyboard/mouse interfaces and provides VGA video input. Typical power consumption is 15.6 W with an external 100–240 V, 50/60 Hz adapter. The CL5716MW is part of a modular KVM solution that allows daisy-chaining of additional units for centralized access to multiple computers.

Advantages

The CL5716MW offers a space-saving 1U design that integrates monitor, keyboard and touchpad into a single sliding module, reducing rack footprint while providing full local access. Its FHD 17.3" display delivers 1920×1080 resolution for clear on-screen detail and the dual USB/PS/2 interfaces ensure compatibility with a wide range of systems. The modular build and daisy-chain capability enable scalable installations and simplified maintenance, and the metal/plastic chassis provides sturdy, rack-grade construction suitable for continuous use.

Suitable for

• Server cabinets and data center racks requiring direct local access
• IT rooms and network closets for configuration and troubleshooting
• Control rooms and monitoring stations where rack-mounted consoles are preferred
• Environments needing a compact KVM solution with VGA video input and multi-platform support

Key specifications

• Display: 17.3" (43.9 cm) TFT-LCD, 1920 × 1080 pixels, 250 cd/m² brightness, 800:1 contrast ratio

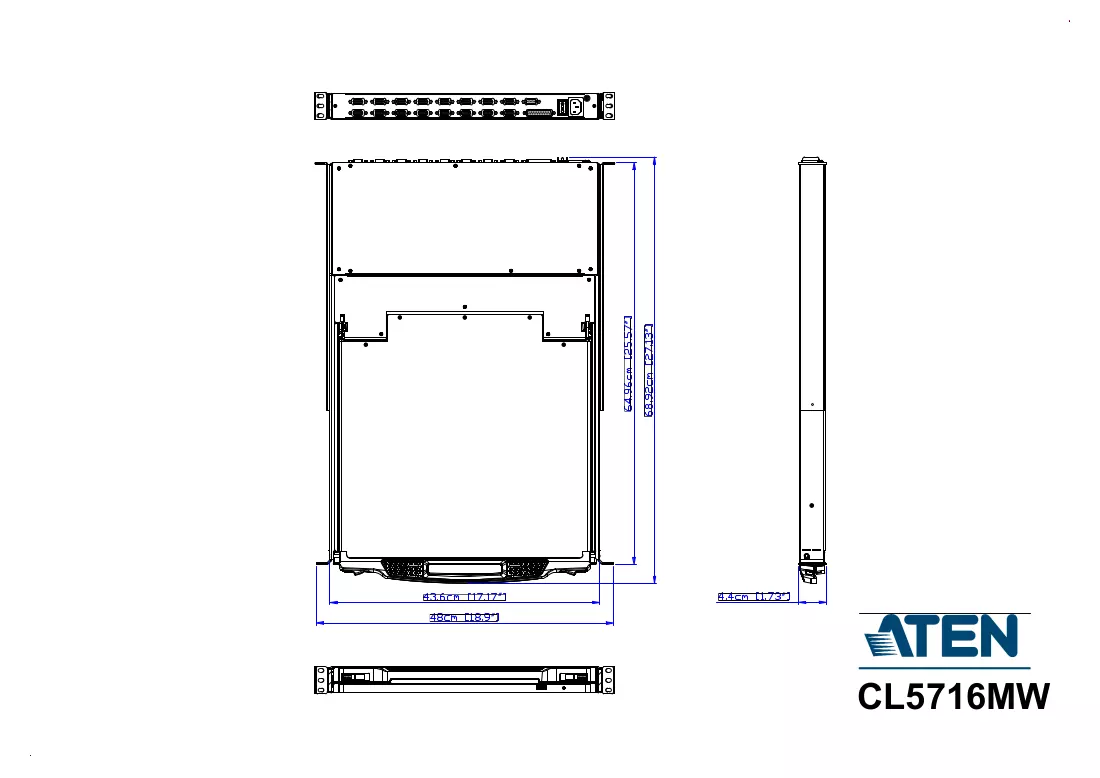

• Form factor: 1U rack-mount Slideaway housing (metal/plastic)
• Keyboard: integrated QWERTZ layout keyboard
• Pointing device: integrated touchpad

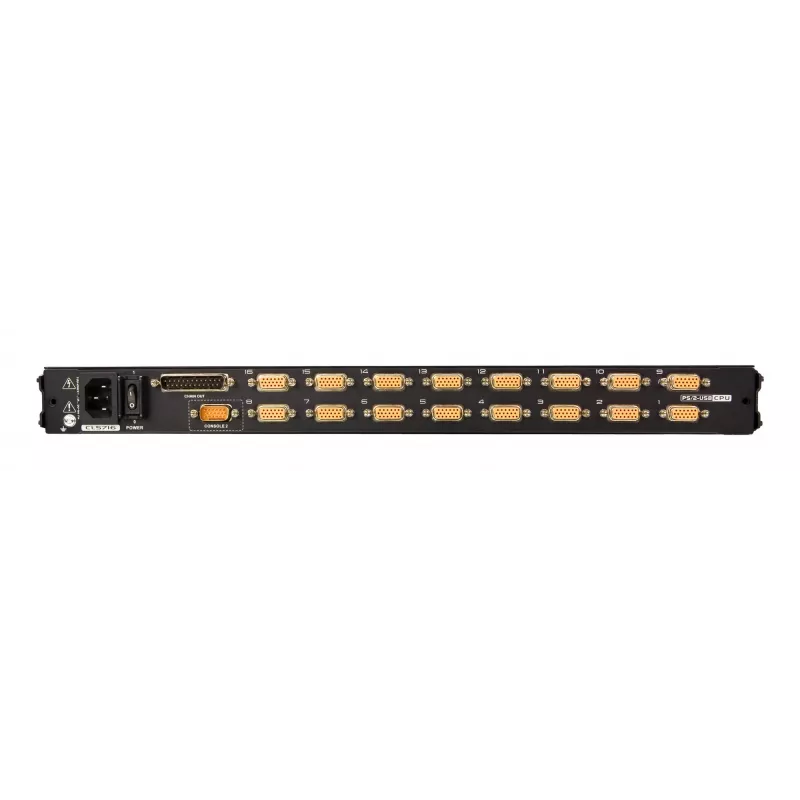

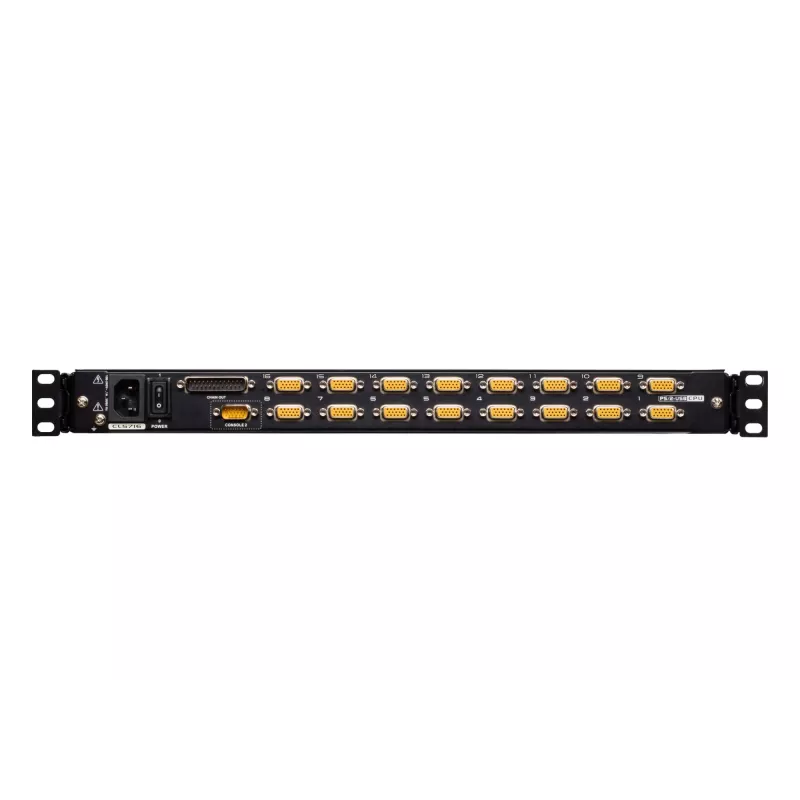

• Interfaces: USB and PS/2 keyboard and mouse ports; VGA video input
• Power: typical consumption 15.6 W with 100–240 V, 50/60 Hz adapter
• Compatibility: multiplatform support (Windows, Linux, Mac, Sun)
• Security: two-level password access with administrator and user accounts

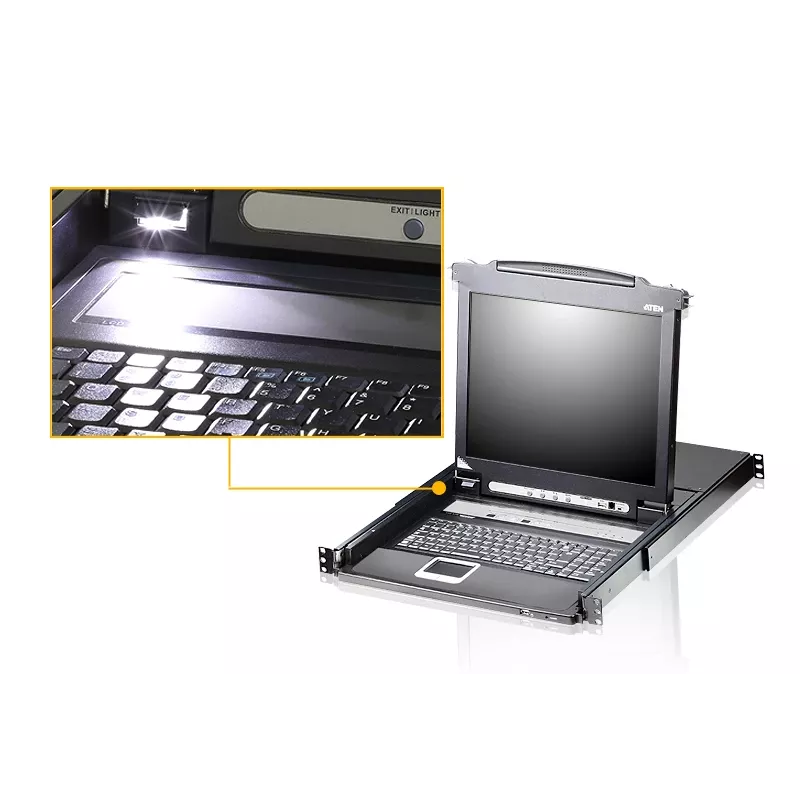

• Additional features: OSD menus, hot-pluggable, auto interface detection, LED keyboard illumination, LCD rotation up to 120°
• Color: black

How to use

Install the CL5716MW into a standard 19" rack occupying 1U of space and slide the unit into the rack rails or optional rack mount kit according to rack instructions. Connect VGA video and either USB or PS/2 keyboard and mouse cables between the console and the KVM switch or host systems. Power the console using the supplied 100–240 V adapter. Use the front-panel controls, hotkeys or on-screen display (OSD) to select target computers, set display and keyboard preferences, and manage user accounts. For multi-unit installations, daisy-chain additional compatible KVM switches following the manufacturer's cabling procedure and allow the system to auto-sense station positions.

Recommendations

Place the console in a well-ventilated rack location and avoid obstructing airflow around the unit. Use USB connections when possible for broader peripheral compatibility, and ensure VGA cabling is secured to prevent signal interruption. Regularly update firmware on chained KVM switches to maintain compatibility and apply two-level password protection to restrict unauthorized access.
