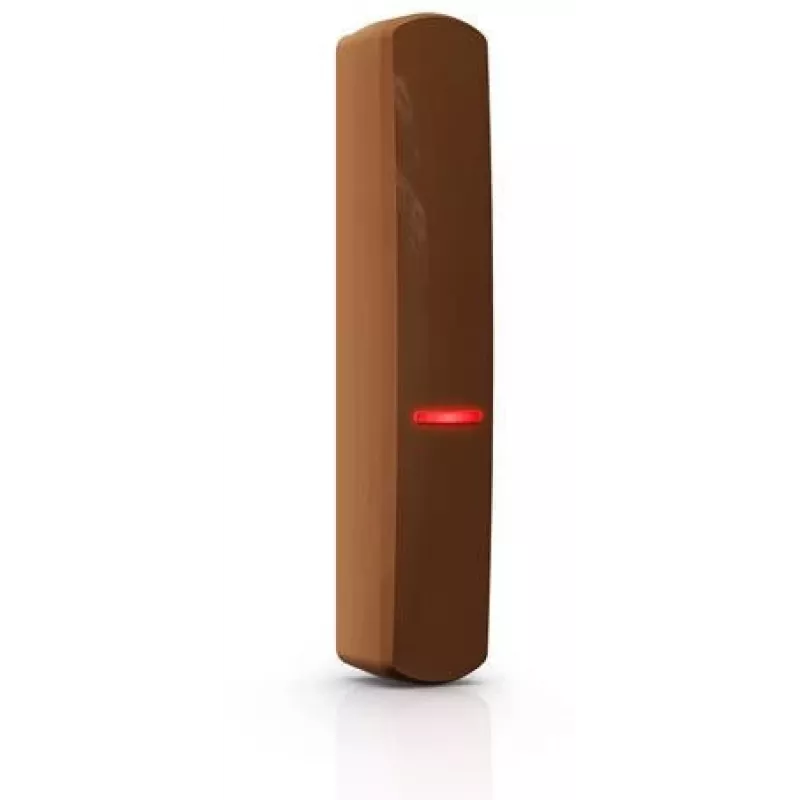

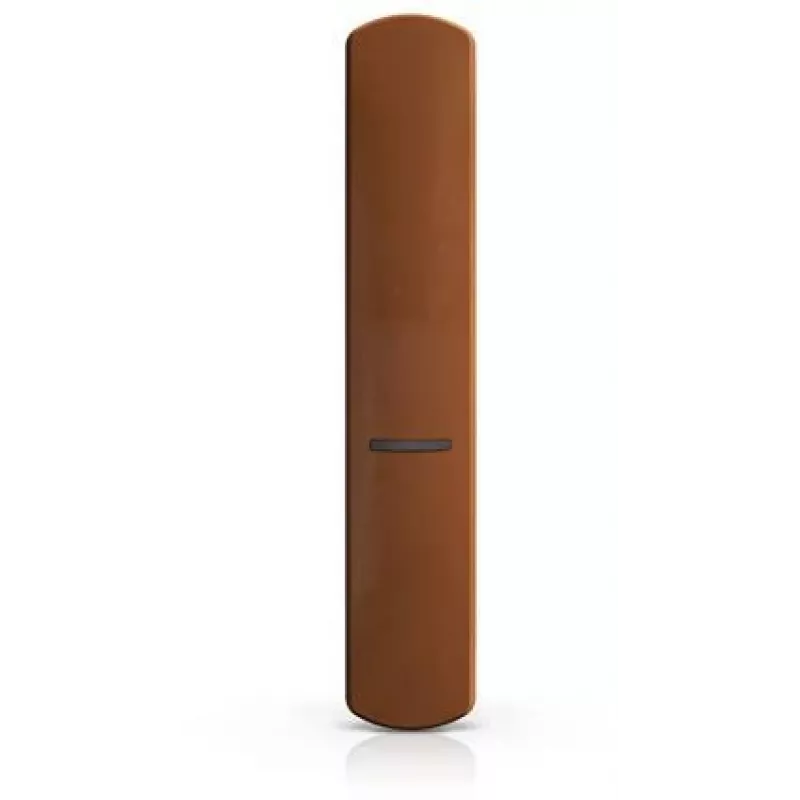

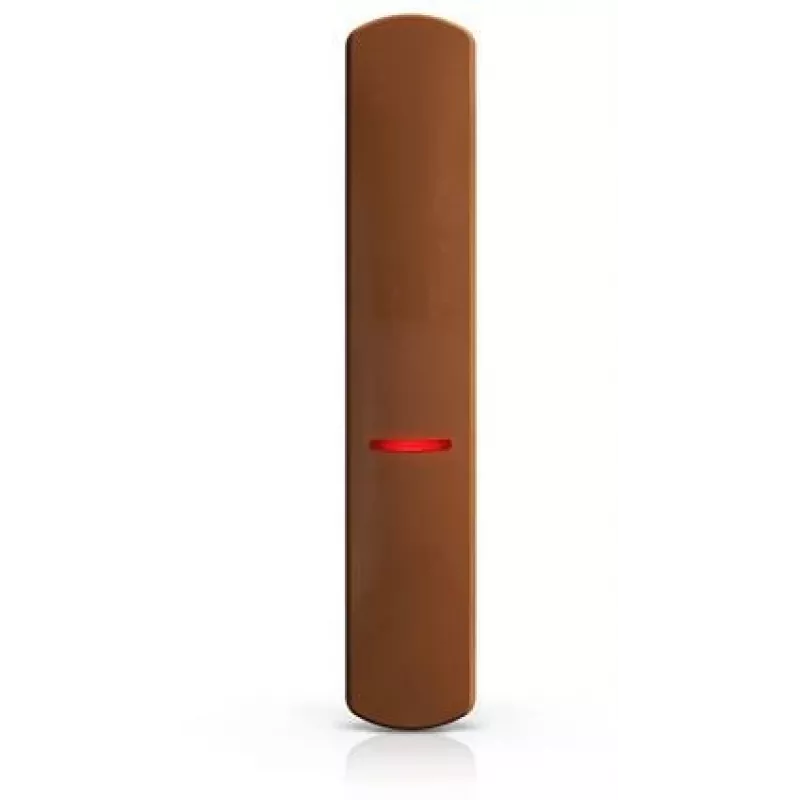

Contacto magnético universal com fio SATEL XD-2L BR castanho

The SATEL XD-2L BR is a wired universal magnetic contact detector designed for surface mounting. It provides reliable protection for doors, windows, and roller shutters in alarm systems. The brown enclosure blends discreetly with wooden or brown frames.

Advantages

Equipped with a reed switch and an additional NO/NC input for connecting an external detector (e.g., roller shutter sensor). Tamper protection against enclosure opening and detachment from mounting surface ensures high security.

Suitable for

• Protection of doors, windows, and roller shutters
• Integration with alarm control panels featuring NC inputs

Key specifications

• Detector type: Universal magnetic contact
• Connection: Wired
• Mounting: Surface mount
• Colour: Brown
• Magnetic contact input: 1 (reed switch)
• Additional input: 1 (NO/NC for external detector)
• Alarm output: NC (normally closed)
• Tamper output: NC (normally closed)
• Max. switching voltage: 20 V DC
• Max. switching current: 20 mA
• Max. switching power: 3 W
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Enclosure material: ABS plastic

Recommendations

For optimal performance, pair with a compatible alarm control panel. Ensure proper surface mounting and test the tamper protection during installation.
