Contador inline Rittal 7979711 16A 1P CEE – contador de energia inline monofásico, 16 A

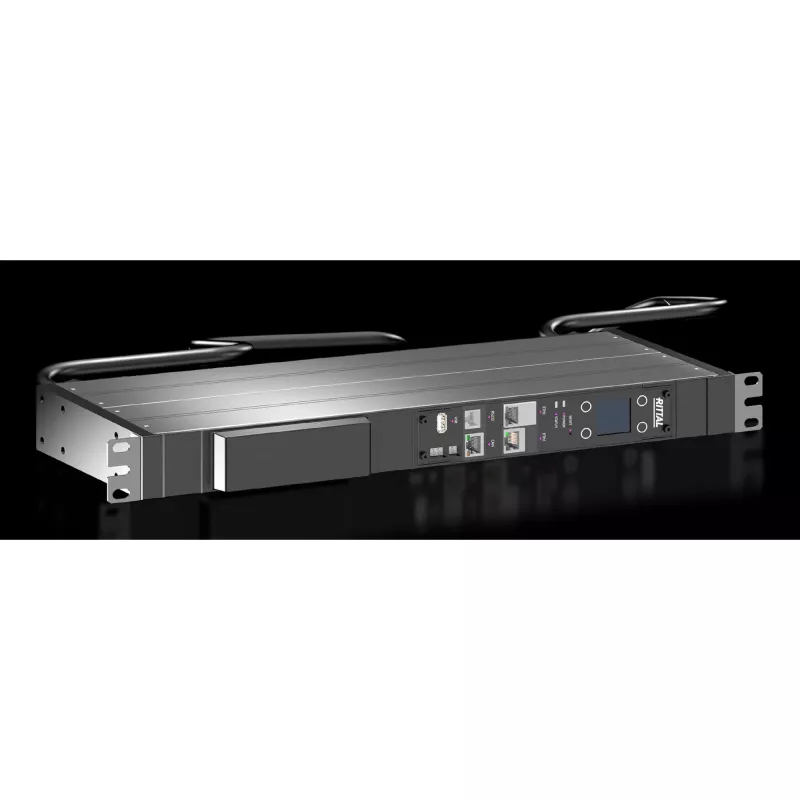

The Rittal inline meter 7979711 is a single‑phase inline power meter designed for integration in power distribution chains. It supports a rated current of 16 A and is compatible with CEE connectors, allowing direct inline placement between supply and equipment. The device measures electrical parameters to provide a real‑time view of current and consumption for racks, PDUs and compact industrial installations where space for metering is limited.

Advantages

The inline meter offers a compact form factor compatible with CEE connectors and a 16 A single‑phase rating, enabling inline measurement without major changes to existing cabling. It provides accurate monitoring of current and power consumption directly at the connection point, reducing the need for separate bulky metering panels. Its design is intended for integration with racks and PDUs common in data centers and industrial power distribution.

Suitable for

• Inline monitoring of single‑phase equipment with CEE connections
• Power distribution units (PDUs) in racks and cabinets
• Compact industrial installations requiring inline current and consumption measurement

Key specifications

• Phase configuration: single‑phase (1P)
• Rated current: 16 A
• Connector compatibility: CEE inline connection
• Function: inline measurement of current and power consumption
• Typical applications: racks, PDUs, industrial power distribution

How to use

Install the inline meter in series with the supply and the load using compatible CEE connectors, ensuring the unit is connected to a single‑phase supply and that the rated current does not exceed 16 A. After installation, verify electrical continuity and confirm the meter displays or transmits the expected measurement values according to the surrounding power management system. Follow local electrical codes and disconnect power before making or changing connections.

Recommendations

Use the meter in environments that match its single‑phase, 16 A rating and CEE connector type. Do not exceed the rated current and avoid exposure to conditions outside the intended installation environment for racks and PDUs. For safety and reliable measurements, integrate the meter with appropriate upstream protection and follow applicable installation standards.
