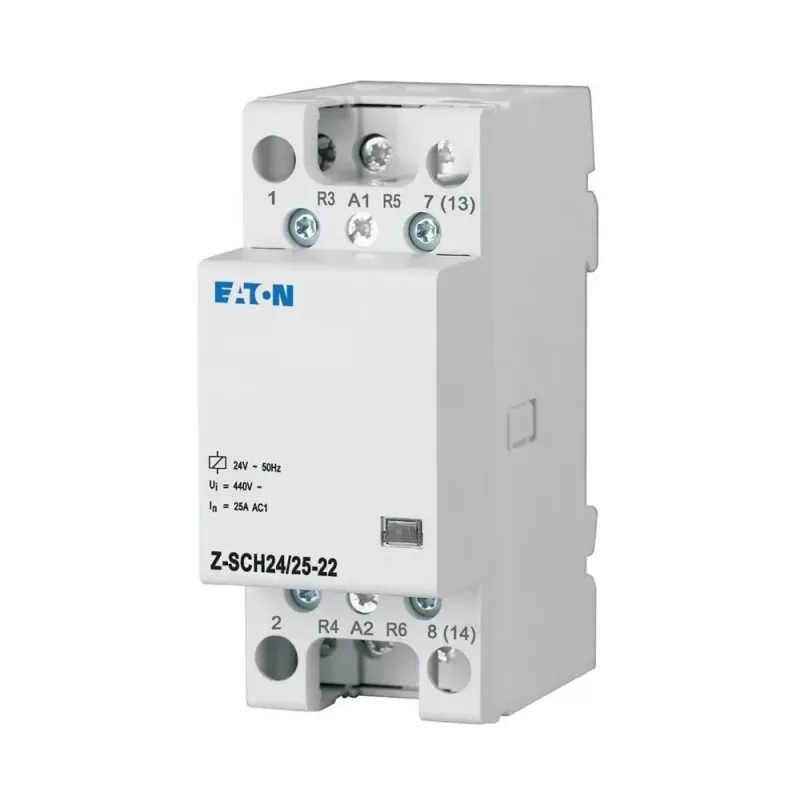

Contator de instalação EATON Z-SCH24/25-22 24V AC 2NO+2NC 25A 248850

In industrial and building control panels, switching resistive loads like heating or lighting circuits reliably requires a robust component that can handle frequent operations. The EATON Z-SCH24/25-22 installation contactor fulfils this role, providing a compact and durable solution for AC-1 duty.

Who is it for

This contactor is intended for electricians and panel builders who need to control resistive loads up to 25 A in distribution boards or control cabinets. It is suitable for applications such as electric heating, water heaters, and lighting systems where a 24 V AC coil is used for control.

Main features

• 4-pole contact configuration: 2 normally open (NO) and 2 normally closed (NC) contacts for flexible switching.
• Rated operational current of 25 A (AC-1) for handling significant resistive loads.
• 24 V AC coil voltage, compatible with standard control transformers.
• Compact 2-module (TE) width for DIN rail mounting, saving space in enclosures.
• High mechanical durability of 1,000,000 operations and electrical durability of 100,000 operations (AC-1).
• Screw terminals for secure and reliable wiring.

Specifications

• Product type: Installation contactor
• Coil voltage: 24 V AC
• Rated operational current (AC-1): 25 A
• Contact configuration: 2 NO + 2 NC
• Number of poles: 4
• Rated operational voltage: up to 400 V AC
• Rated insulation voltage: 440 V AC
• Rated impulse withstand voltage: 4 kV
• Mounting: DIN rail (EN 60715)
• Width: 2 modules (TE)
• Frequency: 50/60 Hz
• Electrical life (AC-1): 100,000 operations
• Mechanical life: 1,000,000 operations
• Ambient operating temperature: -25 to +40 °C
• Protection degree: IP20 (terminals), IP40 (enclosure)
• Coil power consumption: 10 VA (pull-in), 3.5 VA (holding)
• Terminal type: Screw terminals

Tips

Ensure the control circuit provides a stable 24 V AC supply within the specified frequency range. When mounting, allow adequate ventilation around the contactor to maintain operation within the temperature limits. For resistive loads only; do not use for motor starting unless the load characteristics are within AC-1 ratings.
