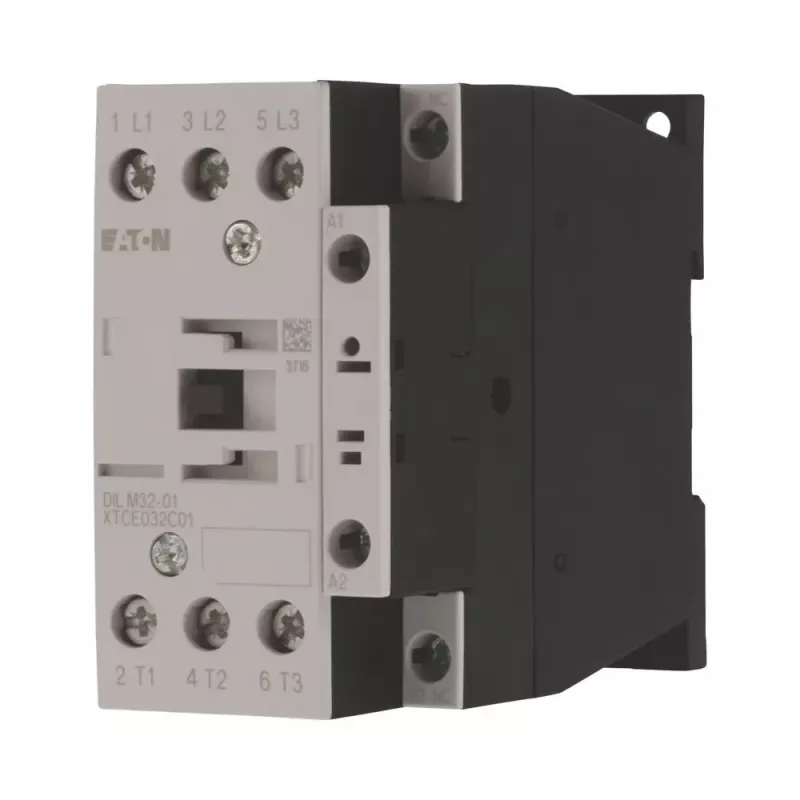

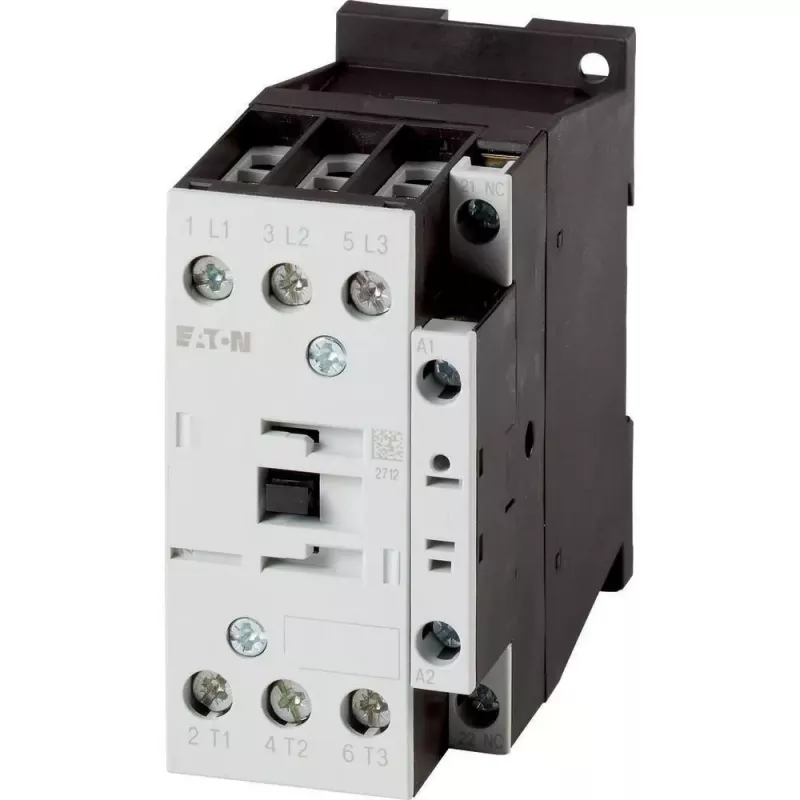

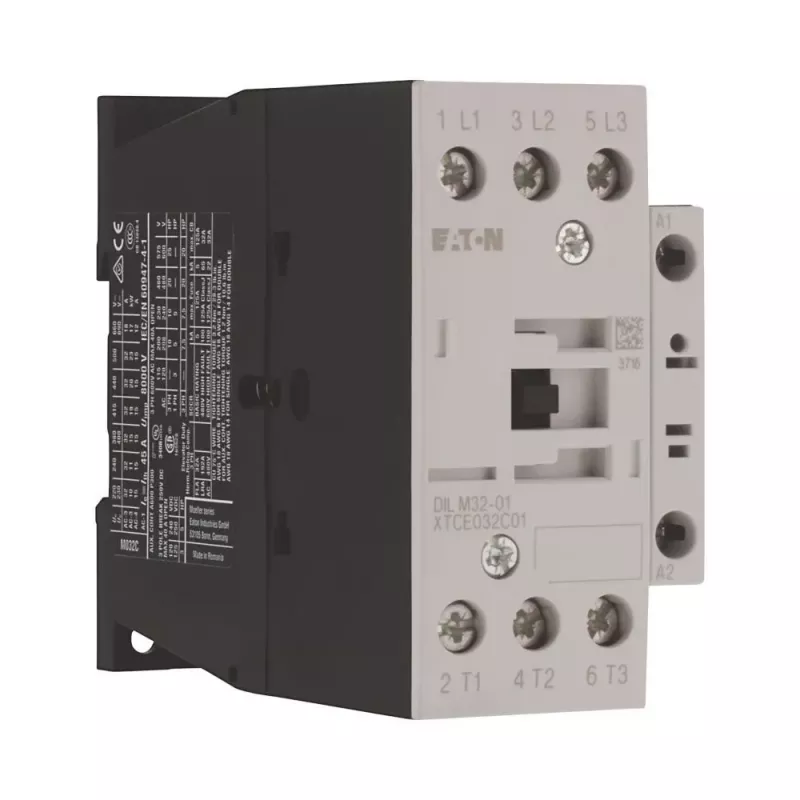

Contator de potência Eaton DILM32-01, 3 polos, 32 A, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 1 contacto auxiliar NF 277292

Industrial motor control demands a contactor that combines robust switching with reliable auxiliary feedback. The Eaton DILM32-01 power contactor addresses this need by providing a 3-pole main circuit rated for 32 A at AC-3 (400 V) and a single normally closed auxiliary contact for status monitoring or interlocking.

Who is it for

This contactor is intended for panel builders, machine OEMs, and maintenance engineers who need to switch three-phase motors up to 15 kW at 400 V AC. Its screw terminals and DIN rail or screw mounting make it suitable for standard industrial enclosures.

Main features

• 3-pole main contacts with rated operational current of 32 A (AC-3, 400 V) and 45 A (AC-1, 400 V)
• Coil voltage: 230 V AC at 50 Hz or 240 V AC at 60 Hz
• 1 built-in normally closed (NC) auxiliary contact
• Rated operational voltage up to 690 V AC
• High mechanical durability: 10 million operations
• Electrical durability (AC-3): 1.5 million operations
• Rated insulation voltage 690 V AC and impulse withstand 8 kV for reliable isolation
• Operating temperature range -25 to +60 °C
• Protection degree IP20 for use in enclosed panels
• Complies with IEC/EN 60947-4-1 and VDE 0660

Specifications

• Series: DILM
• Number of poles: 3
• Rated operational current (AC-3, 400 V): 32 A
• Rated operational current (AC-1, 400 V): 45 A
• Rated operational voltage (Ue): 690 V AC
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Auxiliary contacts: 1 NC
• Motor rating (AC-3, 400 V): 15 kW
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 8 kV
• Mounting type: DIN rail / screw mounting
• Protection degree: IP20
• Operating temperature range: -25 to +60 °C
• Electrical lifespan (AC-3): 1.5 x 10^6 operations
• Mechanical lifespan: 10 x 10^6 operations
• Terminal type: screw terminals

Tips

When selecting a contactor for motor starting, verify that the AC-3 rating matches your motor's full-load current. The NC auxiliary contact can be used for control circuit interlocking or to signal the contactor's state to a PLC.
