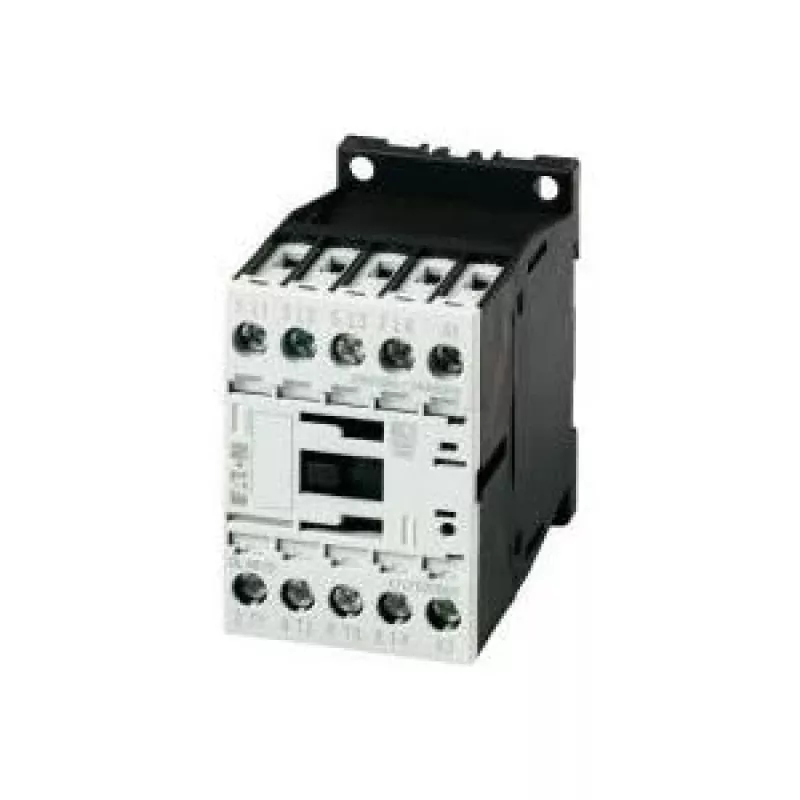

Contator de potência Eaton DILM9-01, 3 polos, 9 A, bobina 230/240 V AC, 1 contacto auxiliar NF

In industrial control panels, the Eaton DILM9-01 power contactor reliably switches three-phase motors up to 4 kW at 400 V AC. Its 230 V AC (50 Hz) or 240 V AC (60 Hz) coil and one normally closed auxiliary contact make it a versatile choice for machine builders and panel shops.

Key specifications

• 3-pole contactor with 1 NC auxiliary contact
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Rated operational current: 9 A (AC-3, 400 V), 22 A (AC-1, 400 V)
• Rated operational power: 4 kW (AC-3, 400 V)
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Protection degree: IP20
• Terminal type: screw terminals
• Mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations (AC-3)
• Operating temperature: -25 °C to +60 °C

Why choose it

The DILM series is known for its compact design and high reliability. This contactor meets international standards including IEC/EN 60947, VDE 0660, UL, and CSA, ensuring compliance in global applications. Its dual frequency coil rating allows use in both 50 Hz and 60 Hz networks without modification.

Ideal use cases

• Motor starting and stopping in industrial machinery
• Heating, ventilation, and air conditioning (HVAC) systems
• Pumps, fans, and compressors
• Control panel building and OEM equipment

Good to know

The contactor is suitable for ambient temperatures from -25 °C to +60 °C, making it robust for demanding environments. It mounts easily on standard 35 mm DIN rail or with screws, and screw terminals ensure secure wiring.
