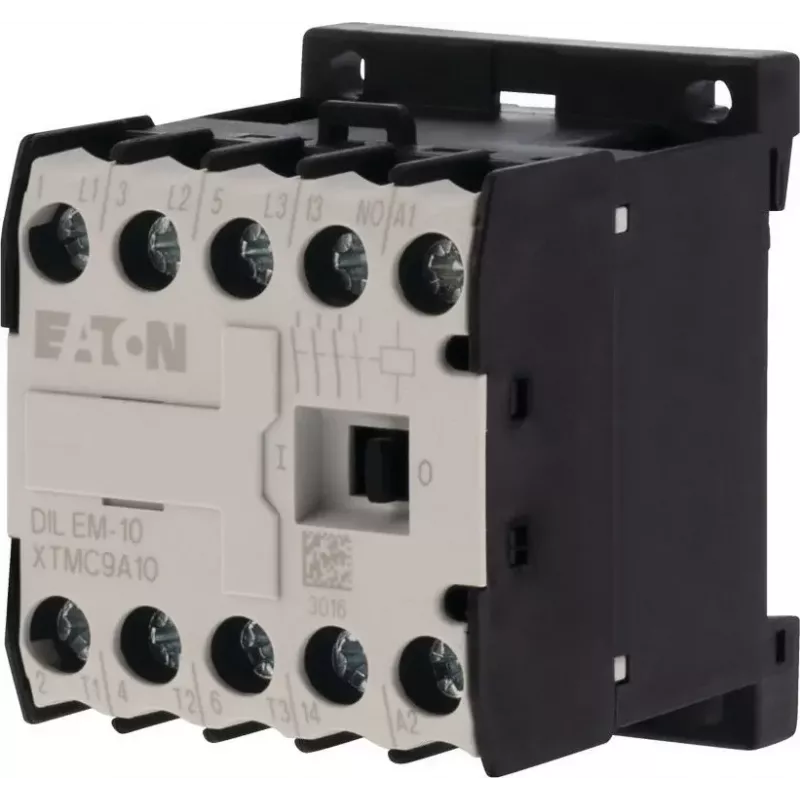

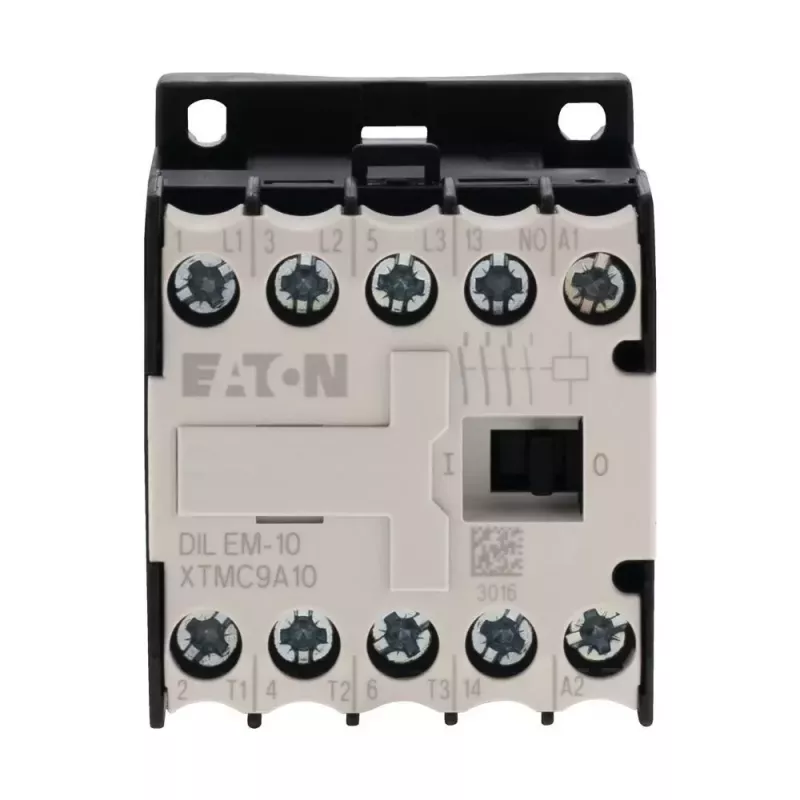

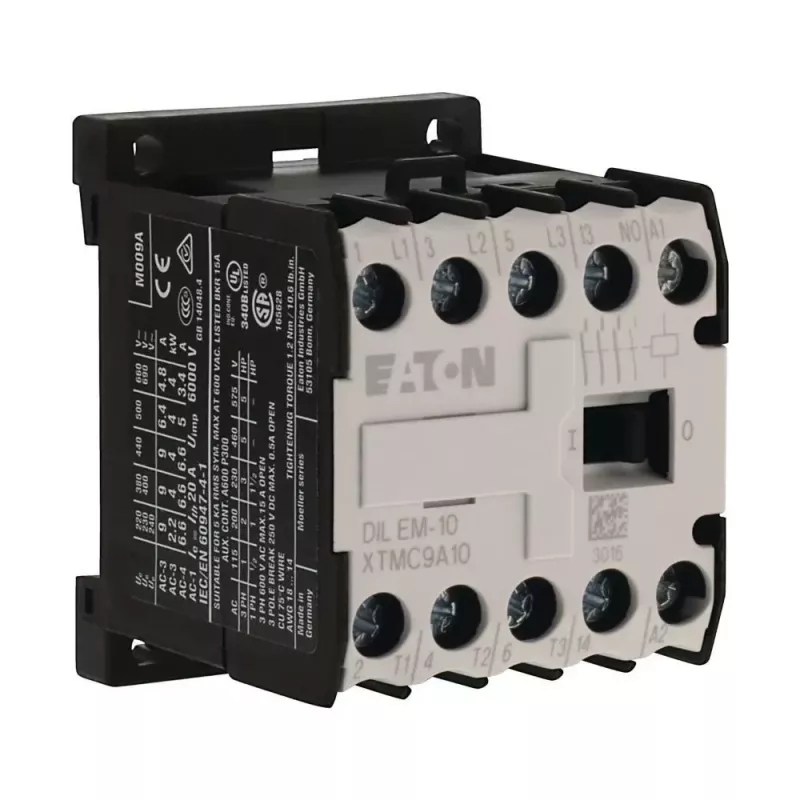

Contator mini Eaton DILEM-10 230V AC 50Hz / 240V AC 60Hz, 3 polos, 9A, 1NO, 690V, calha DIN 051786

Controlling three-phase motors up to 4 kW demands a compact, reliable switching solution that fits tight control panels and withstands frequent operation. The Eaton DILEM-10 mini contactor answers that need with a 3-pole design, 9 A AC-3 rating, and a coil that accepts both 230 V 50 Hz and 240 V 60 Hz, making it a versatile choice for global applications.

Who is it for

Panel builders, machine OEMs, and maintenance technicians who require a space-saving contactor for motor starting, heating loads, or auxiliary circuit switching. It is especially suited for installations where DIN rail space is limited but performance cannot be compromised.

Main features

• 3-pole main contacts rated 9 A (AC-3, 400 V) for motors up to 4 kW
• Dual-frequency coil: 230 V 50 Hz / 240 V 60 Hz
• Integrated 1 NO auxiliary contact for status feedback or interlocking
• High insulation voltage 690 V and impulse withstand 6 kV
• Compact 45 mm width saves panel space
• Complies with IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, CE

Specifications

• Brand: Eaton
• Model: DILEM-10
• MPN: 051786
• EAN: 4015080517863
• Contactor type: Mini contactor
• Number of poles: 3
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Auxiliary contacts: 1 NO
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Operating frequency: 50/60 Hz
• Standards: IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, CE
• Operating temperature range: -25 to 50 °C
• Mounting: DIN rail / screw
• Degree of protection: IP20
• Terminal type: Screw terminals
• Electrical durability (AC-3): 1,500,000 operations
• Mechanical durability: 10,000,000 operations
• Weight: 170 g

Tips

Always verify coil voltage compatibility with your control circuit. For motor loads, select the contactor based on AC-3 utilization category. Use the built-in auxiliary contact for seal-in circuits or PLC input. Mount on a 35 mm DIN rail and ensure adequate ventilation around the device.
