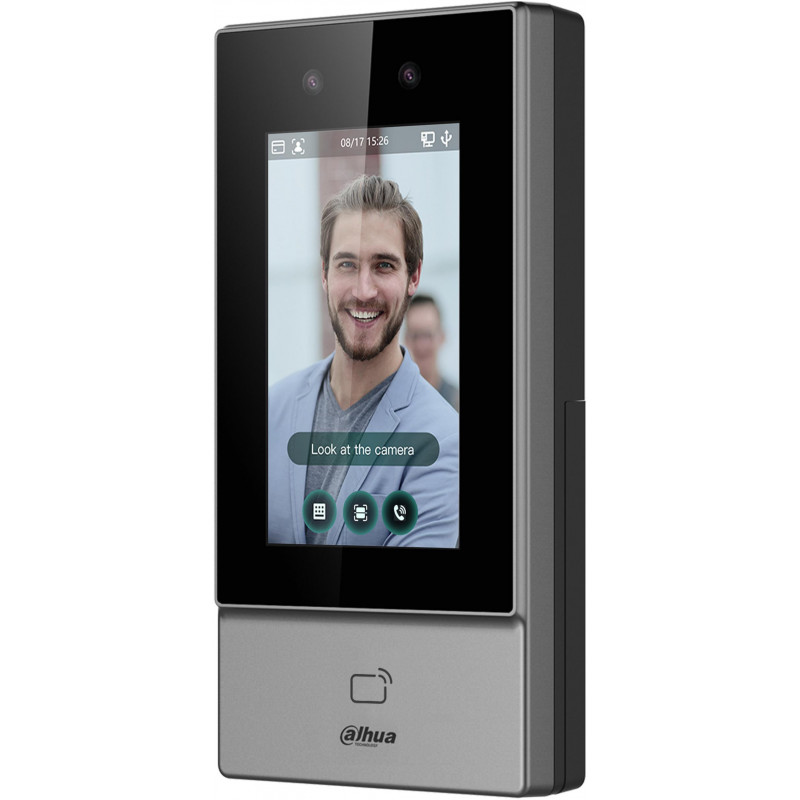

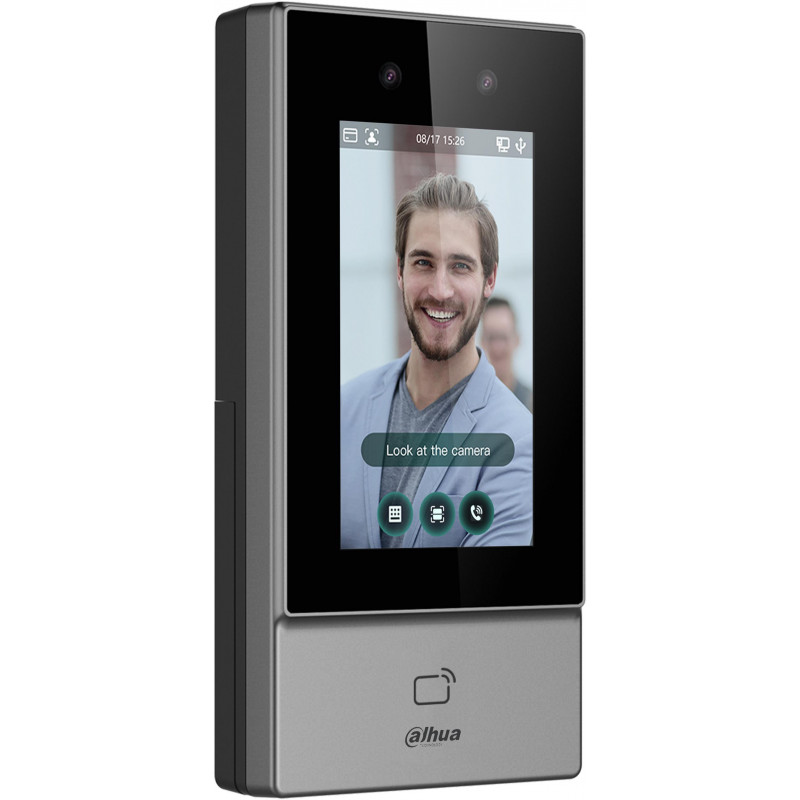

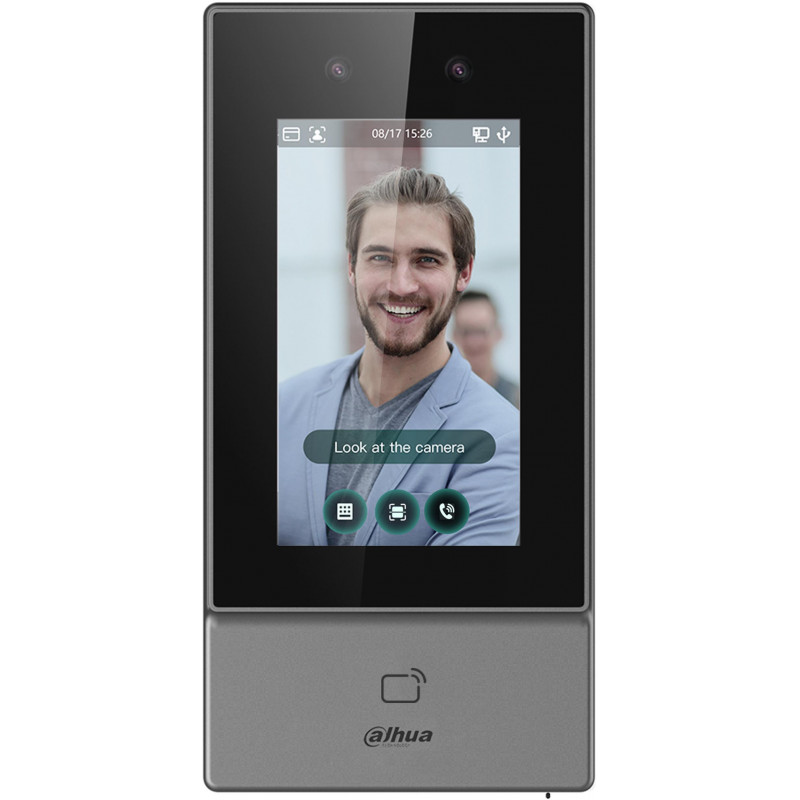

Controlador de acesso com reconhecimento facial Dahua ASI6213S-PW

The Dahua ASI6213S-PW is a face recognition access controller with a 4.3-inch glass touchscreen and a 2 MP dual-lens camera featuring IR illumination and DWDR. It supports multiple unlock methods including face, IC card, and password, and can manage up to 6000 users, 6000 faces, 6000 passwords, 10,000 cards, 50 administrators, and 300,000 records.

Key features

• 4.3-inch glass touchscreen with 272 × 480 resolution
• 2 MP dual-lens camera with IR illumination and DWDR
• Multiple unlock methods: face, IC card, password, QR code, remote control, and combination unlock
• Face recognition distance: 0.3 m–1.5 m (0.98 ft–4.92 ft)
• Face recognition accuracy: 99.9%
• Face recognition time: 0.2 s
• Supports 6000 users, 6000 faces, 6000 passwords, 10,000 cards, 50 administrators, and 300,000 records
• Mask detection and helmet detection
• Attendance management and export of attendance records
• Visitor QR code and doorbell function
• Video call and app for alarm notifications, remote door unlocking, and other tasks
• TCP/IP and Wi-Fi connection
• PoE power supply
• IP65 protection rating

Specifications

• Brand: Dahua
• MPN: ASI6213S-PW
• Material: Glass
• Product type: Standalone
• Display screen: 4.3" LCD
• Screen type: Capacitive touchscreen
• Screen resolution: 272 (H) × 480 (V)
• Camera: 2-MP CMOS HD with dual lens
• WDR: DWDR
• Light compensation: Automatic IR
• Voice prompt: Yes
• Buzzer: Yes
• Housing material: PC+GF
• Unlock mode: Card, remote control, password, QR code, face, and combination unlock
• Card type: IC cards
• Period list: 128 periods
• Holiday period: 128 periods
• Network update: Yes
• First user unlock: Yes
• Remote verification: Yes
• Blocklist/trusted list: Yes
• Wi-Fi: Yes
• Wireless standard: IEEE802.11b/802.11g/802.11n
• Wireless frequency range: 2.4 GHz
• Peripheral card reader: 1 × RS-485 card reader, 1 × Wiegand card reader
• Multi-user authentication: Yes
• Real-time monitoring: Yes
• Multi-factor authentication: Yes
• Capture function: Yes
• Network configuration: Yes
• Auto registration: Yes
• Card reading distance: 0 cm–3 cm (0"–1.18")
• Face recognition height range: 1.1–2.0 m (3.61–6.56 ft)
• Face recognition distance: 0.3 m–1.5 m (0.98 ft–4.92 ft)
• Face recognition accuracy: 99.9%
• Face recognition time: 0.2 s
• User type (cards): Regular user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2
• User capacity: 6000
• Face image capacity: 6000
• Card capacity: 10000
• Password capacity: 6000
• Record capacity: 300000
• RS-485 port: 1
• Wiegand: 1
• USB port: 1
• Network port: 1 × self-adaptive RJ-45 Ethernet port 10/100 Mb/s
• Alarm input: 1
• Alarm output: 1
• Alarm linkage: Yes
• Exit button: 1
• Status detection: 1
• Lock control: 1
• Anti-passback: Yes
• Tamper alarm: Yes
• Duress alarm: Yes
• Door sensor timeout: Yes
• Intrusion: Yes
• Illegal card threshold: Yes
• Power supply: Standard PoE, 12 V DC, 1.5 A
• Power consumption: ≤12 W
• Product dimensions: 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H)
• Network protocol: UDP; TCP; IPv4; RTSP; SIP; P2P; RTP
• OSDP protocol: Yes
• Interoperability: CGI; ONVIF compliance
• SDK and API: Yes
• Main processor: Embedded processor
• Button type: Touch button
