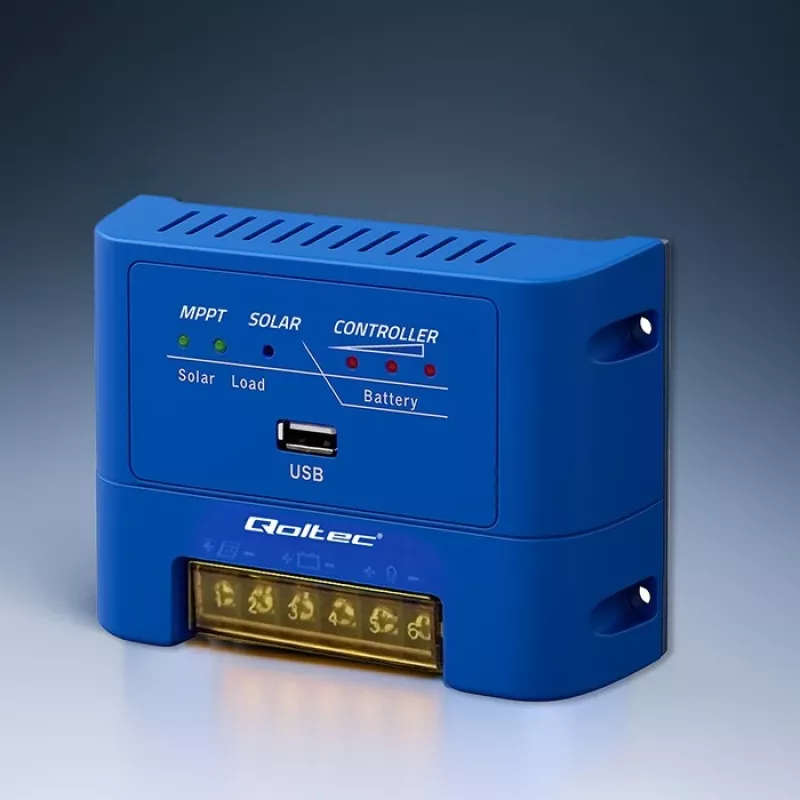

Controlador de carga solar QOLTEC MPPT 15A para alimentação de sistemas de corrente contínua, modelo 53666

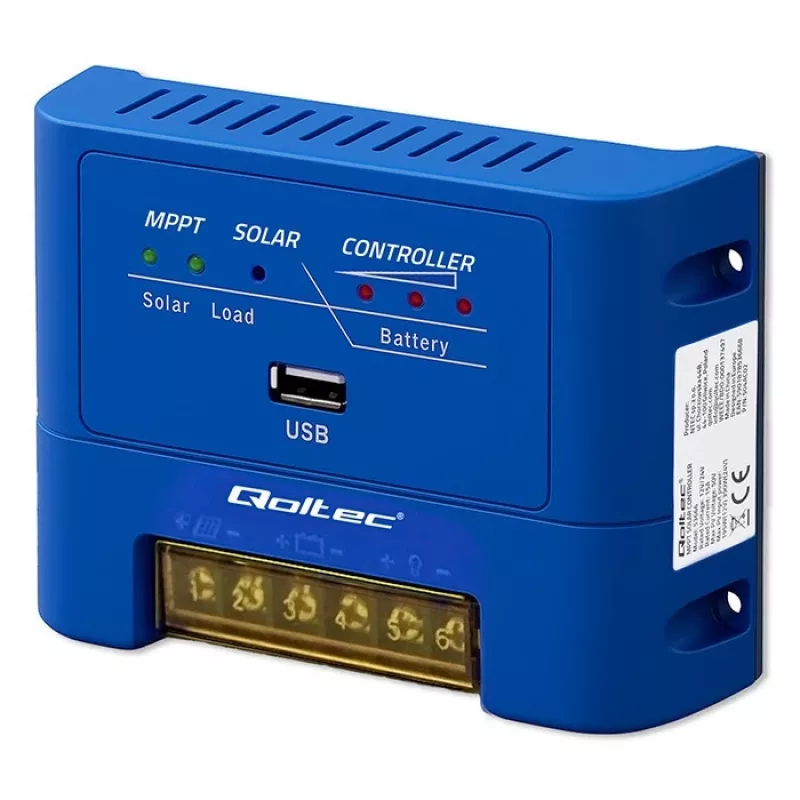

QOLTEC MPPT 15A solar charge controller (model 53666) is a compact device for regulating battery charging from photovoltaic panels in DC-powered systems. The controller uses Maximum Power Point Tracking (MPPT) to optimize energy harvest from solar modules, delivering up to 15A of charging current while providing essential protections such as overcharge prevention, short-circuit protection and reverse-polarity safeguard. Its design is intended for small off-grid installations, recreational vehicles, boats and backup power systems where efficient battery management is required.

Advantages

The MPPT algorithm increases charging efficiency compared with simple PWM controllers, enabling higher energy conversion from the same solar array. The controller supports regulated charging current up to 15A and includes built-in protection features to prolong battery life and ensure safe operation. Its compact form factor and straightforward connections make installation and integration into DC systems fast and practical.

Suitable for

• Small off-grid solar installations for cabins and sheds
• Boat and marine 12V DC power management
• Caravan and RV battery charging systems
• Backup power setups and small energy storage systems

Key specifications

• Maximum charging current: 15 A
• Operating voltage range: compatible with common 12 V DC battery systems
• MPPT charge regulation for improved photovoltaic efficiency
• Protection functions: overcharge protection, short-circuit protection, reverse-polarity protection
• Compact dimensions suitable for limited-space installations

How to use

Mount the controller in a dry, ventilated location close to the battery bank and protected from direct weather exposure. Connect the battery first, observing correct polarity, then connect the photovoltaic panel array to the controller input and finally connect any load outputs if required. Configure the controller according to the battery type and system voltage settings following the manufacturer’s instructions. Regularly check wiring connections and battery state to ensure stable operation.

Recommendations

For optimal performance, match the solar panel array voltage to the controller’s recommended input range and size the array so the peak current does not exceed the 15A charging limit. Use proper cable gauges and quality connection terminals to minimize voltage drop. Periodic inspection of battery health and terminal cleanliness will help maintain efficient charging and prolong battery life.
