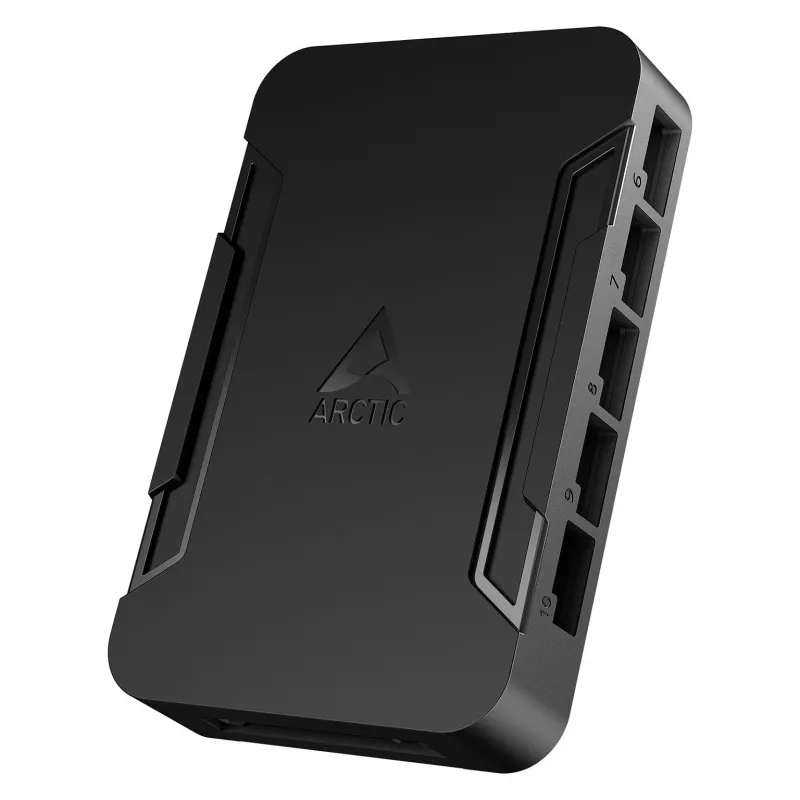

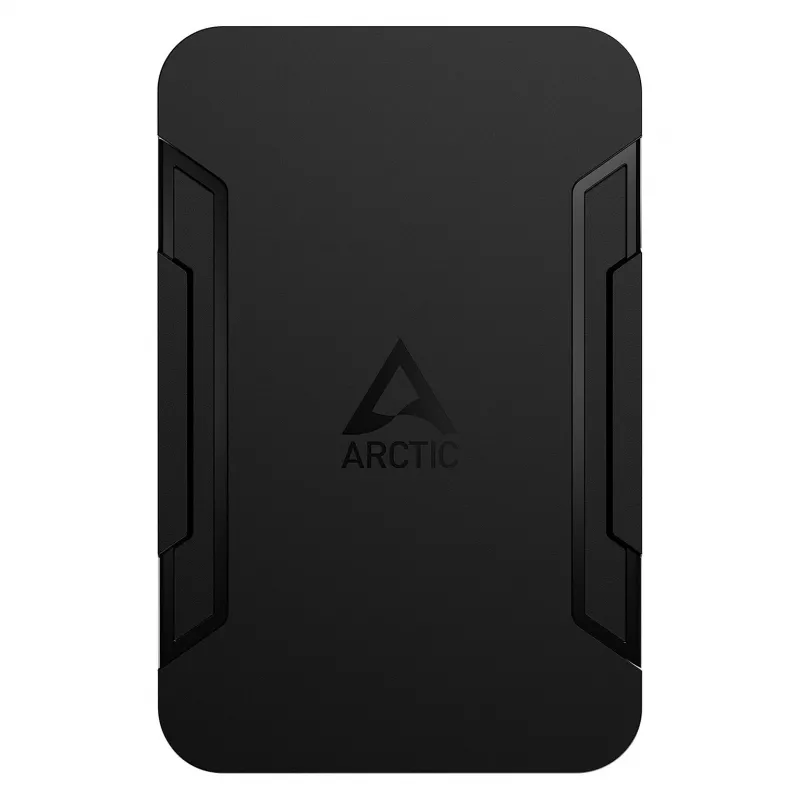

Controlador de ventoinhas ARCTIC 10-Port PWM Hub com alimentação SATA, Preto

Managing a large array of PWM fans often means tangled cables, overloaded motherboard headers, and inconsistent speeds. The ARCTIC Fan Controller solves this by offering ten 4-pin PWM ports powered directly from your PSU via SATA, while a single PWM input from the motherboard synchronizes every connected fan. This hub is ideal for water-cooling loops, server builds, or any system where clean cable routing and reliable fan control matter.

Highlights

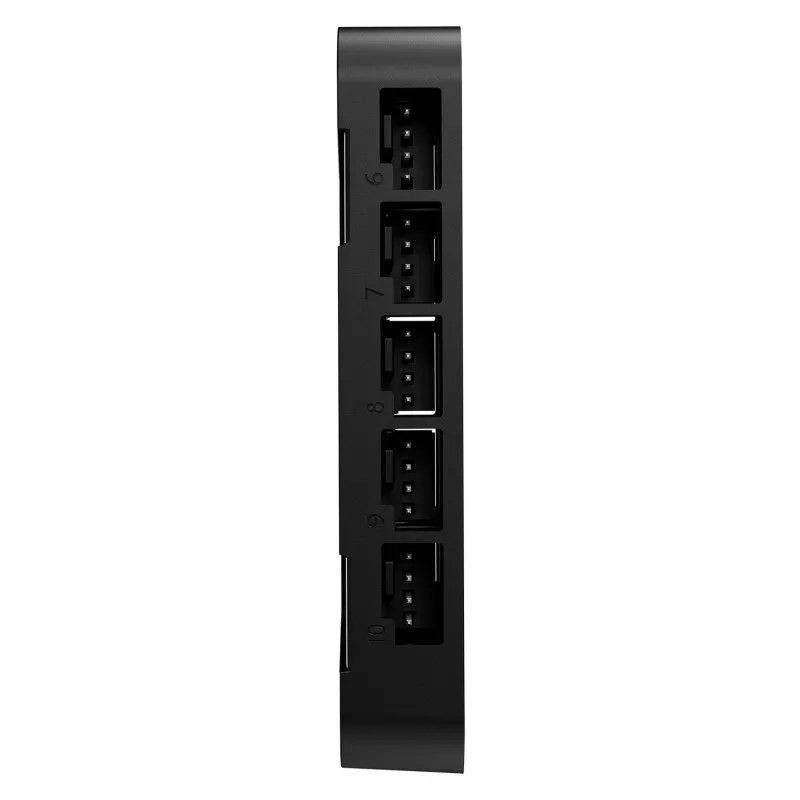

• 10 PWM fan ports with 4-pin connectors for broad compatibility
• SATA power input delivers up to 4.5 A total, protecting your motherboard header
• Single PWM input cable mirrors the motherboard signal to all fans for synchronized speed control
• Compact black PCB with adhesive pad for easy mounting inside the case
• 50 cm cables for both SATA power and PWM input offer flexible placement

In daily use

The hub acts as a central distribution point: connect your fans to the ten outputs, plug the SATA power cable into your PSU, and attach the PWM input to a motherboard header. All fans will follow the same PWM curve, ramping up or down together based on system temperature. The adhesive pad keeps the hub securely attached to a flat surface, reducing cable clutter and improving airflow. Since power comes from the PSU, you avoid overloading the motherboard's fan header, which is especially important when running high-performance fans or many units.

Full specifications

• Brand: ARCTIC
• Model: ACFAN00351A
• MPN: ACFAN00351A
• EAN: 4895265001567
• Number of fan ports: 10
• Fan connector type (output): 4-pin PWM
• Input connector type (motherboard): 4-pin PWM
• Power connector: SATA Power
• Colour: Black
• Function: PWM Signal Distribution, Power Distribution
• Compatibility: 4-pin PWM fans
• Mounting: Adhesive Pad (included)
• Max total current output: 4.5 A
• Voltage: 12V DC
• Control method: Motherboard PWM signal
• SATA power cable length: Approx. 50 cm
• PWM input cable length: Approx. 50 cm
• Material: PCB, Plastic, Copper
• Features: Synchronized fan speed control, cable management solution

Final note

With its robust SATA-powered design and ten PWM ports, the ARCTIC Fan Controller is a reliable backbone for any high-airflow build, keeping every fan in perfect sync without straining your motherboard.
