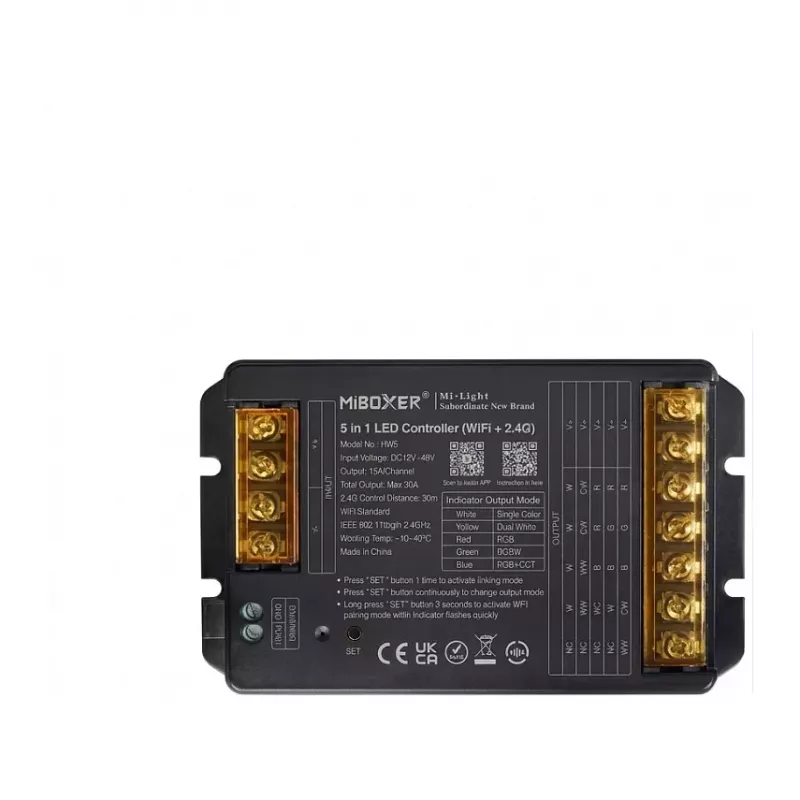

Controlador LED MIBOXER HW5 5 em 1 RGB+CCT DC12-48V 30A WiFi 2.4G série HC

The MIBOXER HW5 is a versatile 5-in-1 LED controller from the HC-Series, designed to manage RGB, RGBW, RGB+CCT, and single-color LED strips. It supports input voltages from DC 12V to 48V and delivers a maximum output current of 30A, making it suitable for a wide range of lighting installations. With built-in 2.4GHz RF and WiFi connectivity (via MiBoxer gateway), it offers flexible control through remote controls or a smartphone app.

Advantages

This controller provides seamless integration with MiBoxer/MiLight ecosystems, allowing for smooth dimming (0-100%) and color adjustments. Its robust aluminum alloy housing ensures durability and efficient heat dissipation, while overload and short circuit protection guarantee safe operation.

Suitable for

• Residential and commercial LED lighting projects
• RGB, RGBW, RGB+CCT, and single-color strip installations
• Smart home automation systems requiring WiFi control
• High-power LED setups up to 1440W (at 48V)

Key specifications

• Product Type: LED Controller
• LED Strip Compatibility: 5-in-1 (RGB, RGBW, RGB+CCT, Single Color)
• Input Voltage: DC 12V - 48V
• Max Output Current: 30A (Total)
• Output Channels: 5 Channels (Red, Green, Blue, Warm White, Cold White)
• Control Protocol: 2.4GHz RF (MiBoxer/MiLight)
• Connectivity: WiFi (via MiBoxer Gateway, e.g., WL-Box1)
• Control Method: MiBoxer/MiLight Remote Controls, Smartphone App (via gateway)
• Dimming Range: 0-100%
• Max Output Power: 1440W (at 48V)
• Series: HC-Serie
• Operating Temperature: -20°C to 60°C
• Housing Material: Aluminum Alloy
• Connection Type: Screw Terminals
• Protection Rating: IP20
• Control Distance (RF): Up to 30m
• Overload Protection: Yes
• Short Circuit Protection: Yes

Recommendations

For optimal performance, pair this controller with a compatible MiBoxer WiFi gateway (sold separately) to enable full smartphone control. Ensure the power supply matches the voltage and current requirements of your LED strip.
