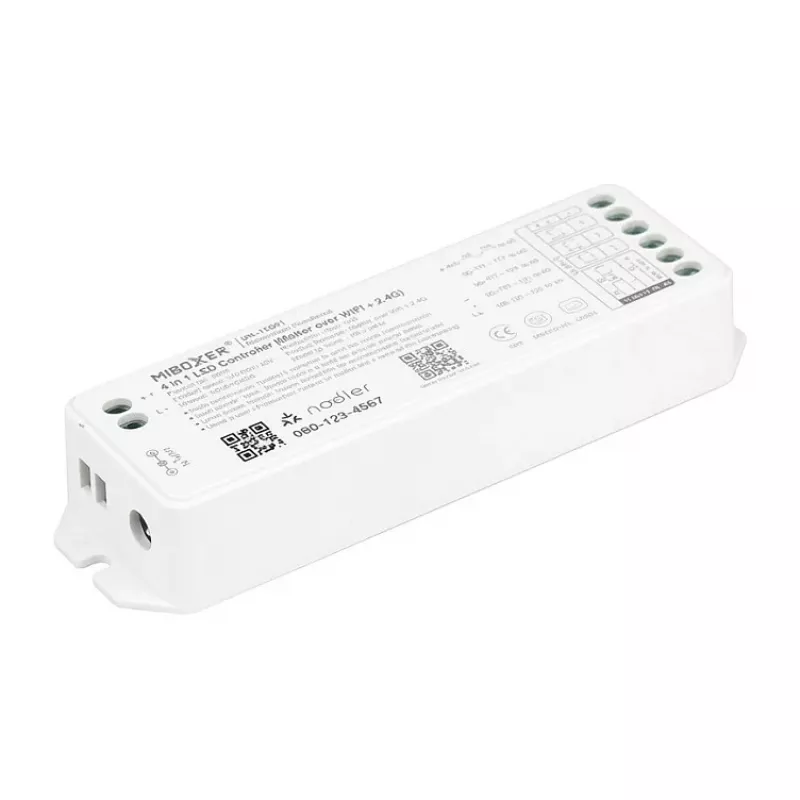

MIBOXER ML5 Controlador LED Matter Series 5em1 RGB-WW (RGB-CCT) DC12-24V Matter Over WiFi + 2.4G

The MIBOXER ML5 LED Controller is a versatile 5-in-1 controller that supports Single Color, CCT, RGB, RGBW, and RGBCCT LED strips. It integrates Matter over WiFi for seamless smart home integration and also features 2.4GHz MiBoxer/MiLight RF for remote control. With a wide input voltage range of DC 12-24V and high output power up to 360W (24V), it is suitable for various LED lighting projects.

Advantages

Compatible with Matter ecosystem for easy setup with major smart home platforms. Dual control modes (WiFi and RF) provide flexibility. High output current (up to 6A per channel, 15A total) supports large LED installations. Built-in overload and short circuit protection ensure safety.

Suitable for

• Smart home lighting systems
• RGB and tunable white LED strip installations
• Commercial and residential lighting projects
• DIY LED projects requiring multiple control modes

Key specifications

• Product Type: LED Controller
• Control Modes: 5-in-1 (Single Color, CCT, RGB, RGBW, RGBCCT)
• Smart Home Protocol: Matter over WiFi
• Wireless RF Protocol: 2.4GHz MiBoxer/MiLight RF
• Input Voltage: DC 12V-24V
• Output Current (Max per Channel): 6A
• Total Output Current (Max): 15A
• Max Output Power (12V): 180W
• Max Output Power (24V): 360W
• Wireless Standard: IEEE 802.11 b/g/n 2.4GHz
• Control Channels: 5 (Red, Green, Blue, Cold White, Warm White)
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Control Distance (RF): Up to 30m (line of sight)
• Housing Material: PC
• Protection: Overload, Short Circuit
• Connection: Screw Terminals
• Static Power Consumption: <1W
• Certifications: CE, RoHS

Recommendations

For best performance, use with a compatible Matter hub or MiBoxer/MiLight 2.4G remote. Ensure power supply voltage matches LED strip requirements. Suitable for indoor use only.
