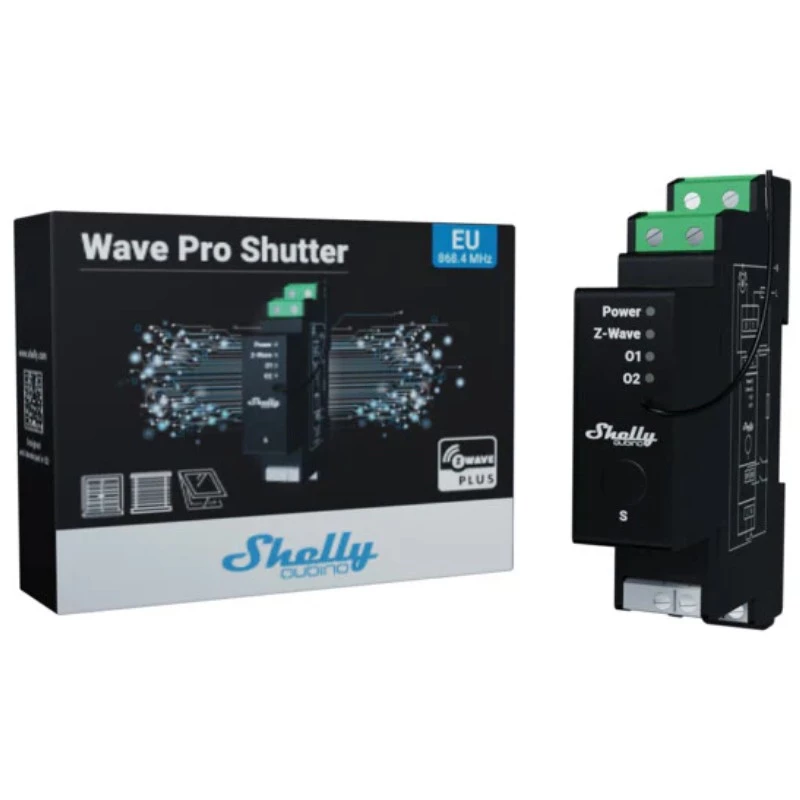

Controlo de estores Shelly Wave Pro Shutter, preto, caixa de plástico, 110–240 V AC, 50–60 Hz, 0,3 W, 19×69×94 mm

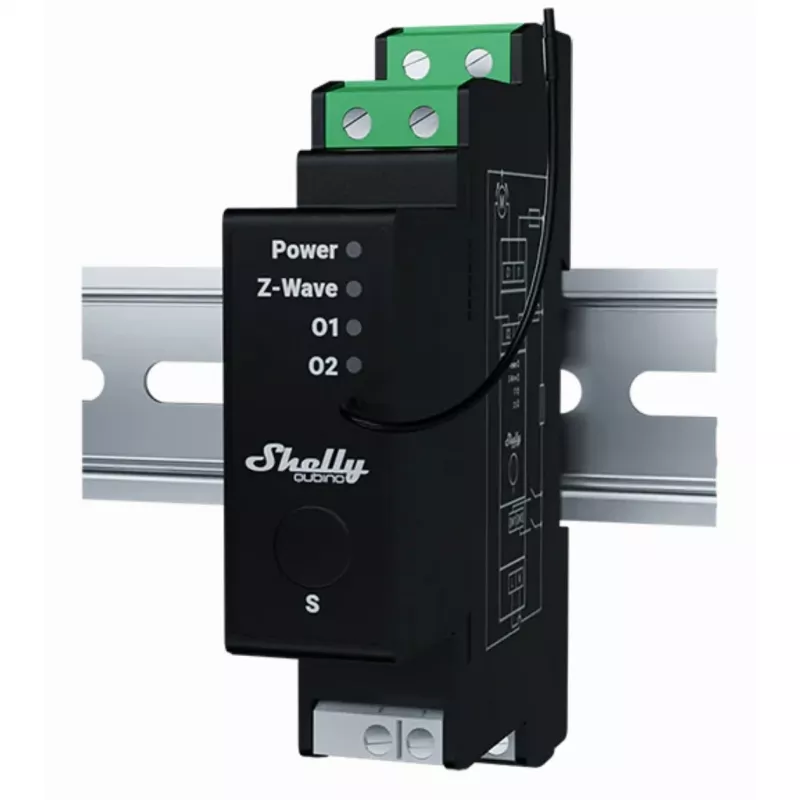

Shelly Wave Pro Shutter is a compact shutter control module in a black plastic housing designed to automate and control roller shutters, blinds and similar motor-driven window coverings. The device operates from 110–240 V AC at 50–60 Hz and has a very low standby power consumption of 0.3 W. Its slim dimensions (19×69×94 mm) allow installation inside standard wall boxes or behind switches, providing direct motor control for opening, closing and intermediate position management.

Advantages

The unit combines compact size with mains voltage compatibility, enabling use with a wide range of AC-driven shutter motors while minimizing the need for additional power supplies. Low standby consumption reduces energy use when the device is idle. The plastic housing and standardized dimensions make it suitable for typical in-wall installation scenarios, and electrical compatibility across 110–240 V AC and 50–60 Hz ensures reliable operation in multiple regions.

Suitable for

• Automating roller shutters and window blinds
• Retrofitting existing shutter motors to enable remote or programmable control
• Installation inside wall boxes or behind existing switches in residential and light-commercial spaces

Key specifications

• Supply voltage: 110–240 V AC, 50–60 Hz
• Power consumption (standby): 0.3 W
• Housing material and color: black plastic
• Dimensions: 19 × 69 × 94 mm
• Intended function: motor control for shutters, blinds and similar coverings

How to use

Mount the Shelly Wave Pro Shutter inside a compatible wall box or behind an existing switch following applicable local electrical codes. Connect the module to the mains supply and to the shutter motor according to the wiring diagram provided by the manufacturer. After wiring, power the device and configure any available control options or integration with external control systems if supported. Use the module to perform open, close and positional control of the connected shutter motor.

Recommendations

Ensure installation and wiring are performed by a qualified electrician. Verify compatibility of the shutter motor with mains voltage control and check that in-line protections (fuses or circuit breakers) are in place. Avoid exposing the module to moisture and install it in a ventilated, dry location within the recommended enclosure type.
