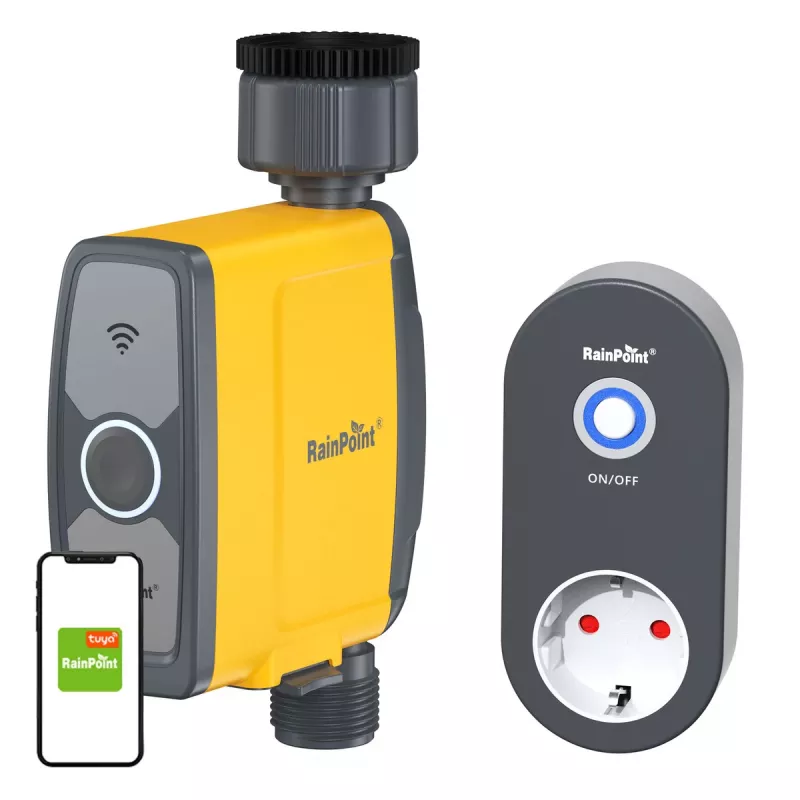

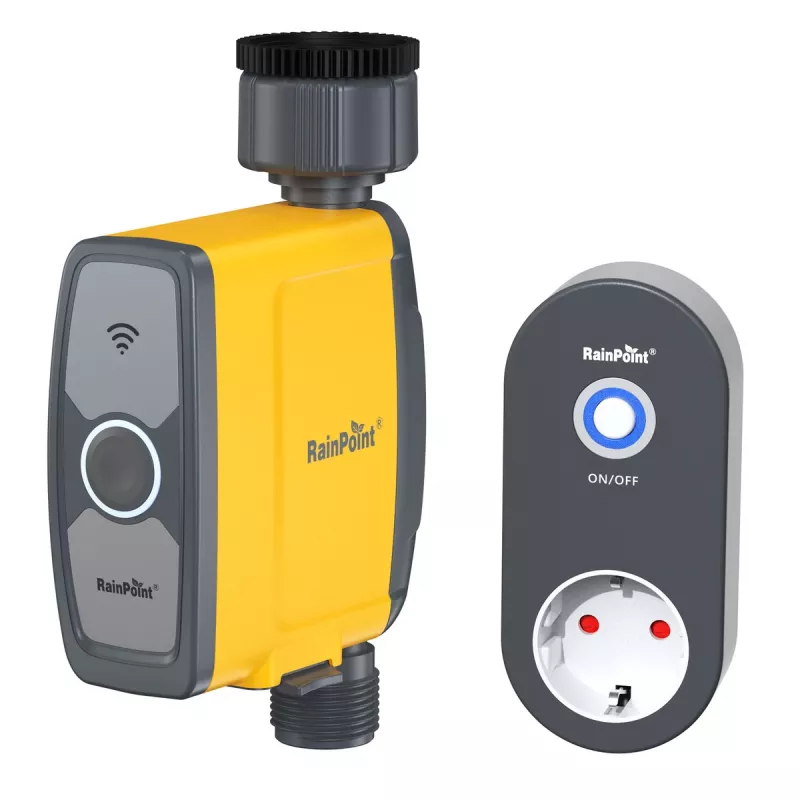

Controlo de rega RainPoint TTV103FRF controlado por app 1 zona (MPN TTV103FRF + TWG004WR)

RainPoint TTV103FRF is an app-controlled, single-zone irrigation controller supplied with the TWG004WR hub. It provides remote management of watering for a small garden, lawn or balcony system. Using the RainPoint Tuya app for iOS and Android you can start and stop watering manually, set up to three independent daily programs for the zone, choose between strong irrigation and gentle mist modes, and pause watering automatically in case of rain. The controller has an IP54-rated housing, an integrated debris filter and a built-in flow meter to track water use for the last 10 days. Notifications for low battery, leaks and faults help you monitor system status.

Advantages

The device combines simple mobile control with local automation: remote start/stop and scheduling via app, automatic soil-moisture-triggered watering when optional sensors are connected, and weather-based pausing. The bundled TWG004WR hub expands system capabilities and provides a 2.4 GHz Wi‑Fi interface. Durable IP54 construction, a removable filter that reduces particulate entry and a sealed battery flap increase reliability outdoors. The built-in flow meter and alert notifications support water-use tracking and early leak detection.

Suitable for (tasks / use cases)

• Small gardens and lawns
• Balcony or patio container irrigation
• Flowerbeds and vegetable beds with a single irrigation zone
• Remote watering control and scheduled irrigation

Key specifications

• Manufacturer: RainPoint
• Model: TTV103FRF + TWG004WR
• Zones: 1
• Wireless range: 60 m (open space)
• Water pressure: 0.5–8 bar
• Operating temperature: controller 3°C–50°C; hub 3°C–40°C
• Power supply: 4 × AA batteries (not included)
• Waterproof rating: IP54
• Hub Wi‑Fi frequency: 2.4 GHz
• Hub input: 100–240 V, 50 Hz, 16 A
• Dedicated app: RainPoint Tuya (iOS, Android)

How to use

Install the controller near the irrigation valve and connect the hub according to the included manual. Insert four AA batteries into the sealed battery compartment. Pair the controller with the TWG004WR hub and add the device in the RainPoint Tuya app. Create up to three daily programs for the zone, select irrigation or mist mode, and set run times and start times. Optionally connect up to two soil moisture sensors to enable automatic watering based on measured humidity. Use the app to manually start or stop watering and to view flow meter data and system notifications.

Recommendations

To prolong service life and ensure reliable operation, install the controller in a shaded location protected from direct water jets, clean the integrated filter periodically, replace batteries before low-battery notifications accumulate, and verify fittings and hoses regularly to detect leaks early.
