Conversor de Media LevelOne Smart Gigabit RJ45-SC, Fibra Multimodo, 850 nm, 500 m, Compatível com Chassis de Rack de 19 Polegadas, 1000 Mbit/s

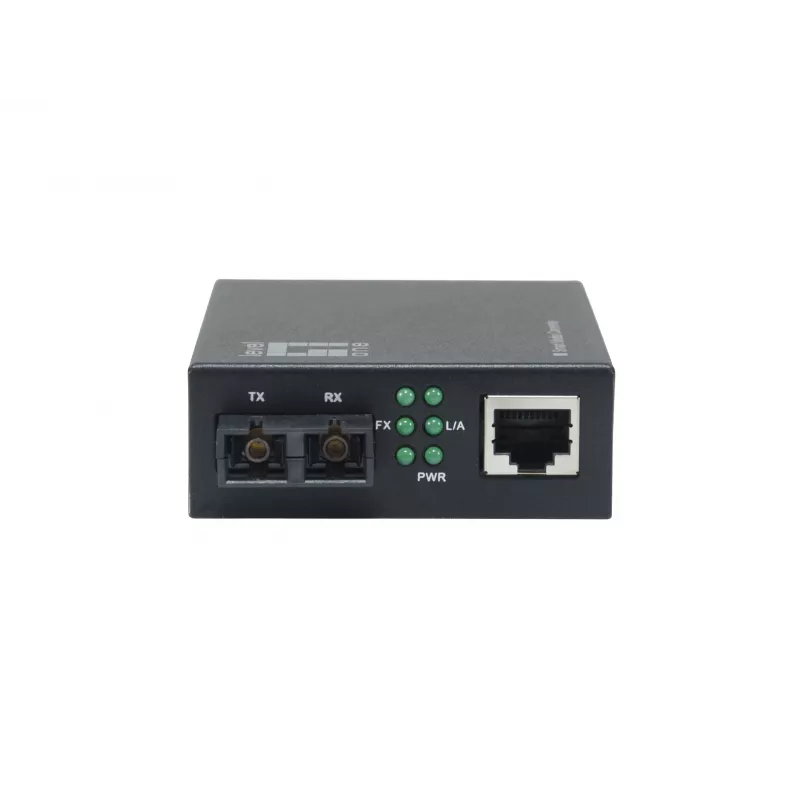

The LevelOne GVM-2001 is a high-performance Smart Gigabit Media Converter designed to extend network distances by converting 1000Base-T copper to 1000Base-SX fiber optics. It supports multimode fiber with a wavelength of 850 nm and a maximum distance of 500 meters, making it ideal for connecting devices across longer distances within a building or campus. The converter is compatible with 19-inch rack mount chassis for centralized deployment.

Advantages

This media converter offers reliable and fast data transmission with full duplex support and auto MDI/MDI-X. It features Link Fault Pass-Through (LFP) for easy troubleshooting and is energy-efficient with IEEE 802.3az compliance. The metal housing ensures durability, and the external power adapter provides flexibility in installation.

Suitable for

• Extending network reach in enterprise LANs
• Connecting devices over multimode fiber in campus networks
• Integration into 19-inch rack mount chassis for centralized management

Key specifications

• Connectivity Technology: Wired
• Ethernet Port: 1x RJ45 (10/100/1000Base-T)
• Fiber Optic Port: 1x SC (1000Base-SX)
• Fiber Type: Multimode
• Wavelength: 850 nm
• Maximum Fiber Distance: 500 m
• Data Transfer Rate: 1000 Mbit/s (1 Gbps)
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
• Full Duplex Support: Yes
• Auto MDI/MDI-X: Yes
• Link Fault Pass-Through (LFP): Yes
• Rack Mountable: Compatible with 19-inch rack mount chassis
• LED Indicators: Power, Link/Act, FDX, Speed
• Power Supply: External DC Power Adapter
• Operating Temperature: 0 - 50 °C
• Housing Material: Metal

Recommendations

For optimal performance, use with high-quality multimode fiber cables and ensure proper installation in a well-ventilated area. The converter is plug-and-play, requiring no configuration.
