Conversor de mídia Fast Ethernet LevelOne RJ45 para SC, fibra monomodo, 1310 nm, 40 km

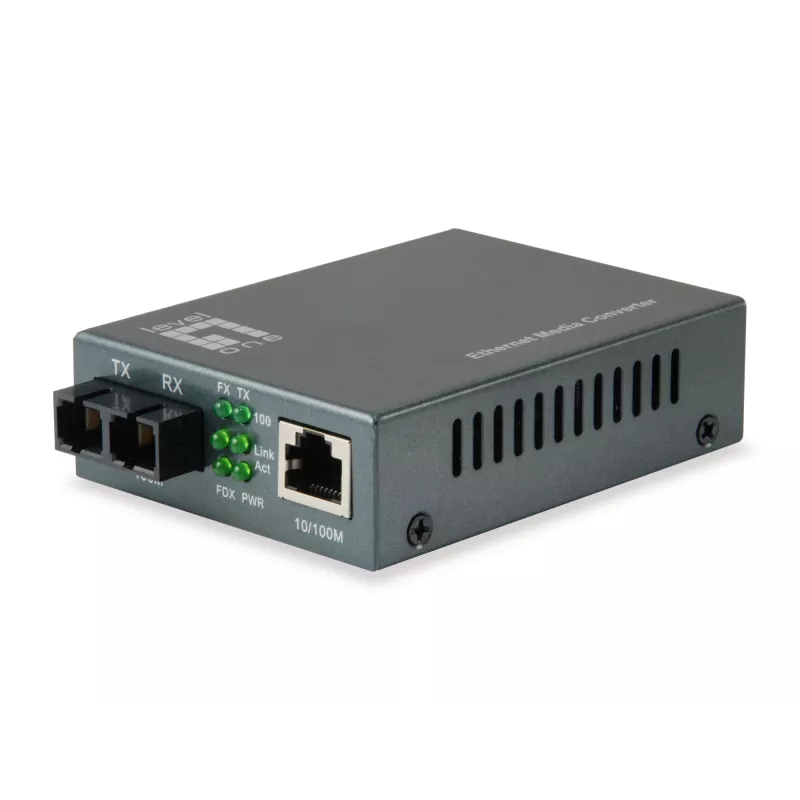

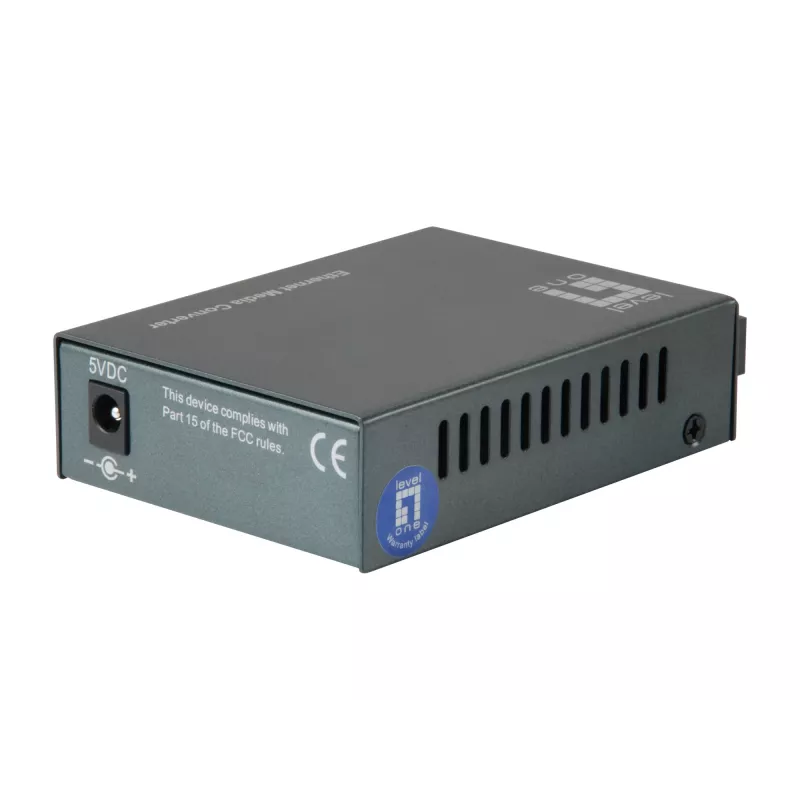

The LevelOne FVT-1103 single-mode fiber optic media converter with SC connector converts network signals between copper and single-mode fiber networks. It provides one 10/100Base-TX RJ-45 port, supports both full-duplex and half-duplex operation, and automatically detects 10Base-T or 100Base-TX link speeds. With appropriate single-mode fiber cabling, the converter supports link distances up to 40 km. The unit can operate as a standalone device or be installed as a plug-in module in a CHV-2000 19" chassis that holds up to 14 converters for centralized rack deployment.

Advantages

The FVT-1103 enables seamless integration of copper Ethernet and single-mode fiber infrastructure, extending network reach without changing existing copper equipment. Auto-negotiation of speed and duplex mode simplifies installation. Compatibility with the CHV-2000 chassis allows compact, centralized installation of multiple converters in a wiring closet.

Key specifications

• Model: LevelOne FVT-1103
• Fiber type: single-mode
• Fiber connector: SC
• Copper port: 10/100Base-TX RJ-45
• Duplex: full-duplex and half-duplex
• Auto-sensing: 10Base-T / 100Base-TX
• Maximum fiber distance: up to 40 km (with appropriate cable)
• Mounting: standalone or CHV-2000 19" chassis (up to 14 units)

How to use

Connect the RJ-45 Ethernet cable from your copper network device to the 10/100Base-TX port on the converter and connect a single-mode fiber cable with an SC connector to the fiber port. Ensure cable polarity and connectors are correct, power the unit, and verify link LEDs for proper connection. For rack installation, insert the module into a CHV-2000 chassis according to the chassis instructions and secure power and fiber/copper connections.

Recommendations

Use certified single-mode fiber cabling and compatible SC connectors to achieve the stated 40 km reach. For multiple converters in one location, install them in the CHV-2000 chassis to simplify power and cable management.
