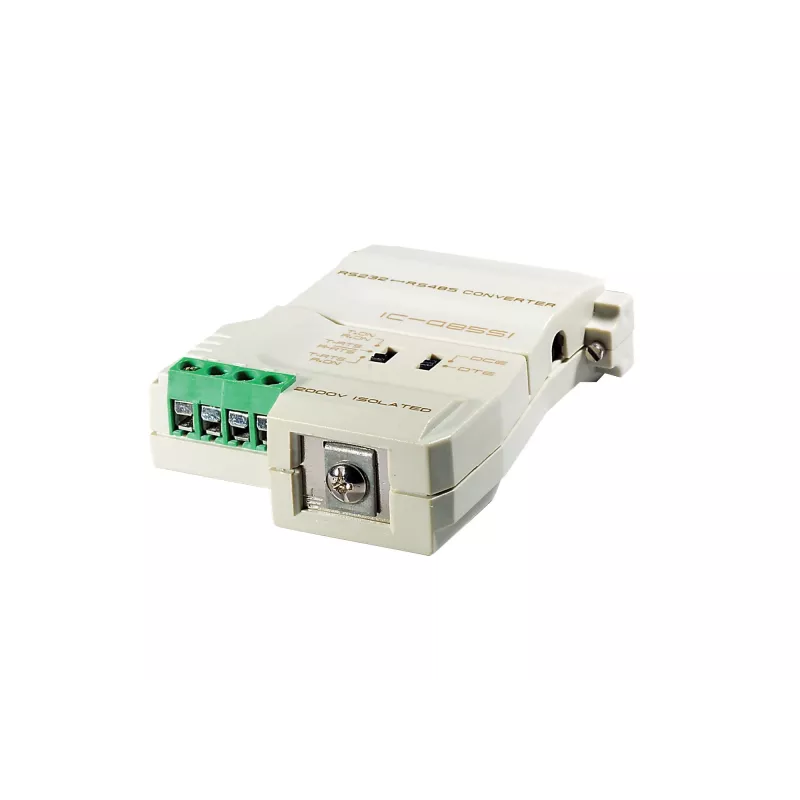

Conversor de sinal ATEN IC485SI-AT-GG branco

IC485S is a compact 2-way signal converter that converts RS-232 signals to and from RS-422/RS-485 for long-distance serial communication up to 1200 m (4000 ft.). The ATEN IC485SI-AT-GG model comes in white, with compact dimensions (54.5 mm × 79 mm × 21 mm) and a light weight of 0.05 kg, providing a space-saving solution for converting between serial interfaces while maintaining reliable data transmission.

Advantages

The converter supports bidirectional conversion between RS-232 and RS-422/RS-485, enables communication over extended distances up to 1200 m, and allows connection of up to 32 hubs. It includes monitoring functionality to confirm data flow between connected devices and is supplied in a compact, lightweight enclosure suitable for constrained installations.

Suitable for

• Extending serial communications over long distances (up to 1200 m / 4000 ft)
• Integrating RS-232 devices into RS-422/RS-485 networks
• Industrial and building automation where multiple hubs or nodes are required (up to 32 hubs)
• Environments requiring compact, low-profile converters

Key specifications

• Model: ATEN IC485SI-AT-GG (IC485S)
• Function: 2-way RS-232 ↔ RS-422/RS-485 converter
• Maximum distance: 1200 m (4000 ft)
• Topology support: up to 32 hubs
• Colour: White
• Dimensions (W×H×D): 54.5 mm × 79 mm × 21 mm
• Weight: 0.05 kg
• Brand: ATEN
• MPN: IC485SI-AT-GG
• EAN: 4710423772137

How to use

Connect the RS-232 device to the converter's RS-232 port and wire the RS-422/RS-485 side to the target bus according to the wiring diagram for your installation. Power the converter as specified by the manufacturer's instructions and verify link/activity using the built-in monitoring indicators. Configure baud rate and serial parameters on the connected devices to match; the converter performs transparent signal translation without additional protocol conversion.

Recommendations

For reliable long-distance links, use proper twisted-pair cabling with correct termination and grounding. When deploying multiple hubs, plan node addressing and cable layout to stay within RS-485 network limitations and consult ATEN documentation for detailed wiring and installation guidance.
