Cortador de papel Dahle 00564-20215 4,5 mm 45 folhas

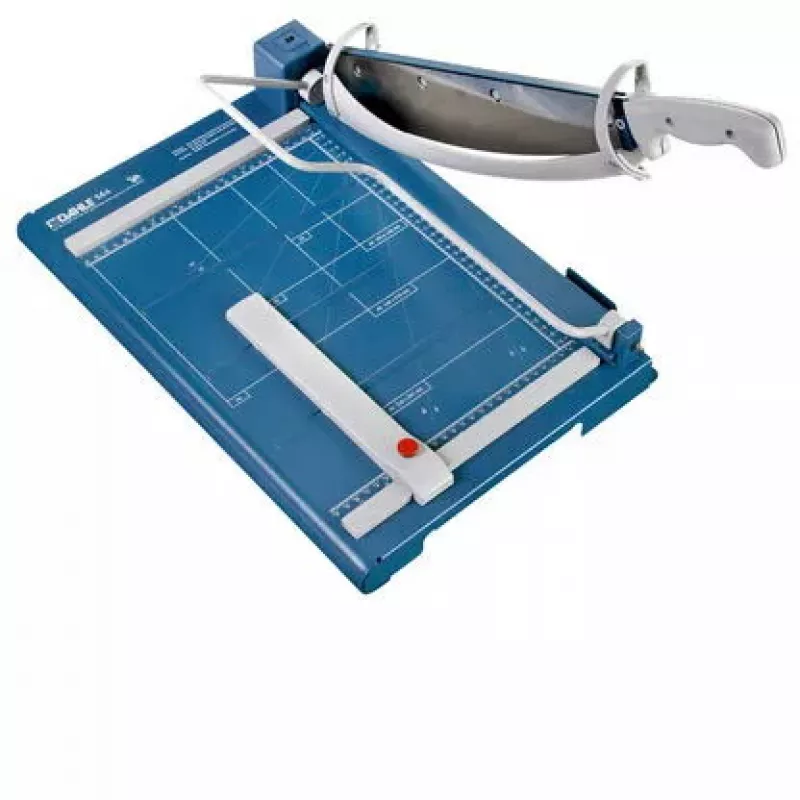

The DAHLE 00564-20215 paper cutter is a professional guillotine designed for precise cutting tasks. It offers a cutting capacity of 4.5 mm (up to 45 sheets) and a cutting length of 36 cm, mounted on a sturdy solid metal table with rounded edges and non-slip rubber feet. The unit includes a screw-mounted, ground upper and lower blade made of re-sharpenable Solingen steel and a solid-steel blade holder for long-lasting performance.

Advantages

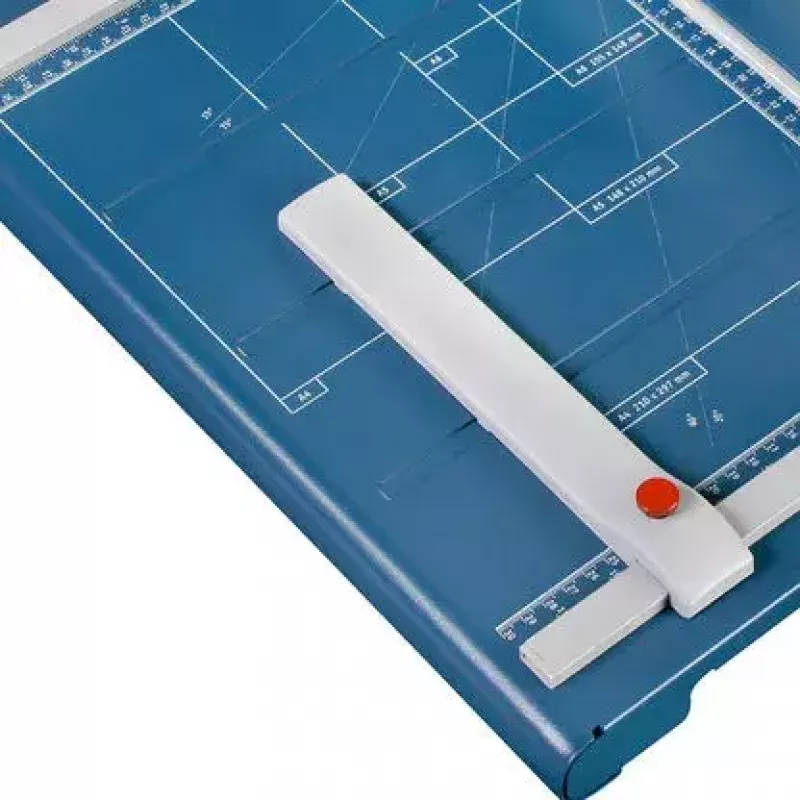

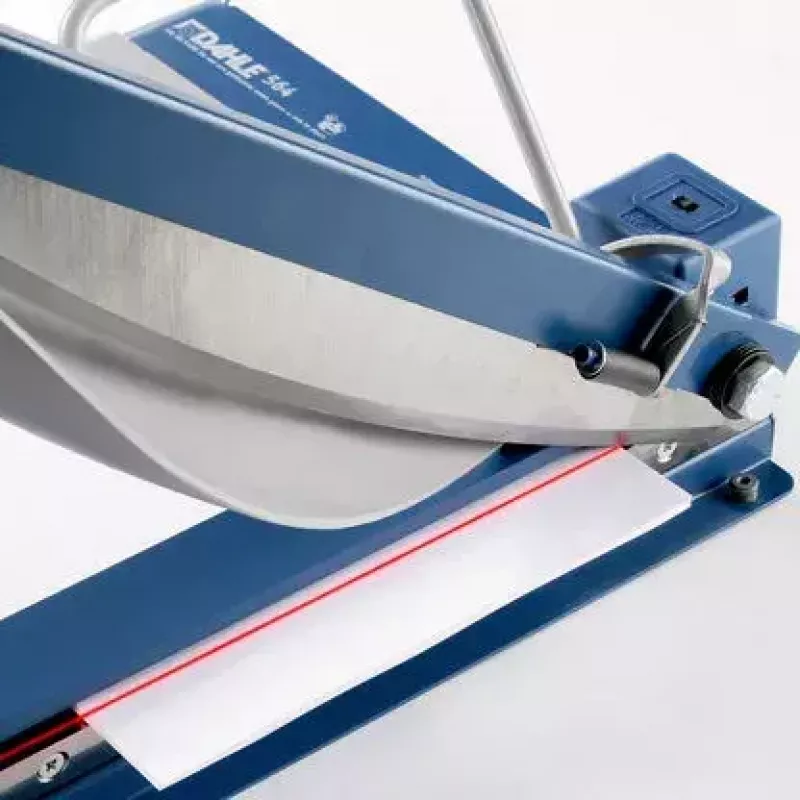

The cutter features a reliable automatic safety guard, an ergonomically shaped handle and practical recessed grips for safe handling. Format lines on the table, two scale bars with mm scale, a precision laser beam line indication and an adjustable backstop in guide channels enable accurate and repeatable cuts. Narrow guide channels prevent single sheets from slipping through, and a manual D-bar clamp with push-in front stop secures the material during cutting.

Suitable for

• Office document trimming and batch paper cutting
• School and educational materials preparation
• Graphic and print finishing for small runs
• Workshops requiring precise straight cuts on paper

Key specifications

• Brand: DAHLE
• Model / MPN: 06.00564
• EAN: 4007885239187
• Cutting capacity: 4.5 mm (up to 45 sheets)
• Cutting length: 36 cm
• Dimensions (W x D): 475 x 310 mm
• Weight: 9.3 kg

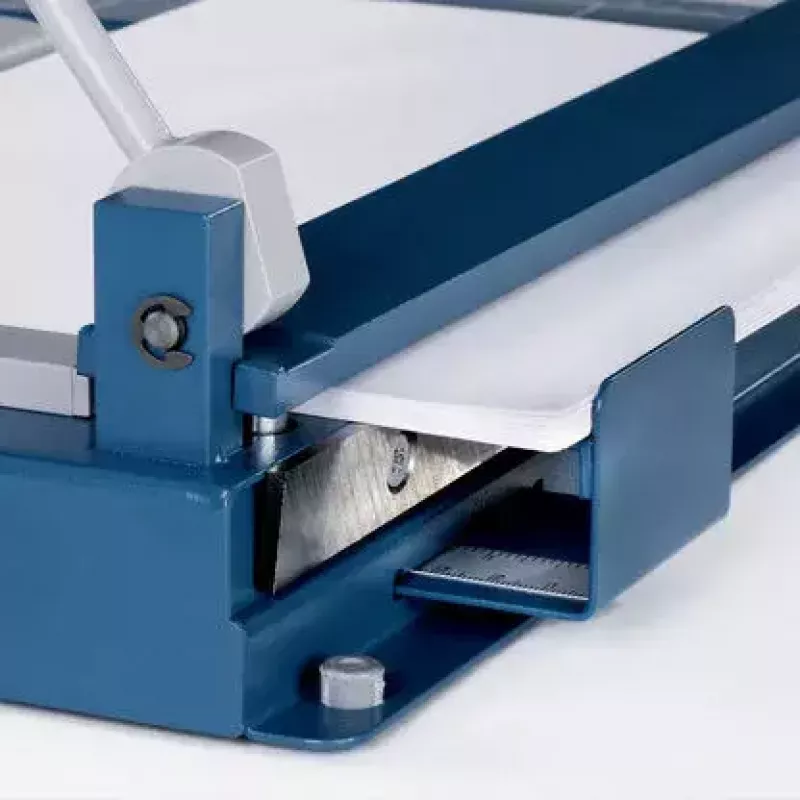

• Blades: Screw-mounted, ground upper and lower blades; Solingen steel, re-sharpenable

How to use

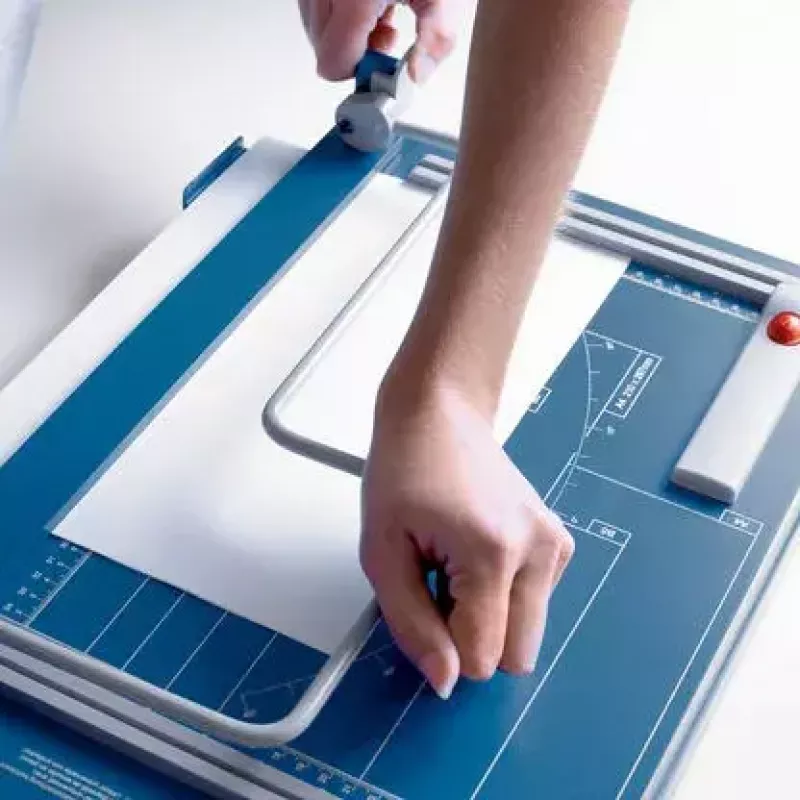

Place the paper stack on the metal table aligning it with the format lines and the scale bars. Use the adjustable backstop and the push-in front stop to position the material accurately. Lower the manual D-bar clamp to hold the stack firmly. Verify the cutting line using the precision laser beam indicator, then pull the ergonomically shaped handle to make the cut. After cutting, raise the clamp and remove the trimmed material. Follow the safety guard instructions and keep hands clear of the blade area during operation.

Recommendations

For best results and longevity of the blades, avoid cutting materials thicker than the specified 4.5 mm capacity and have the Solingen steel blades re-sharpened by a qualified service when dull. Regularly clean the table grooves and keep the guide channels free of debris to ensure consistent cutting accuracy.
