CyberPower PDU20BHVIEC12R unidade de distribuição de energia (PDU) 12 saídas AC 1U preto

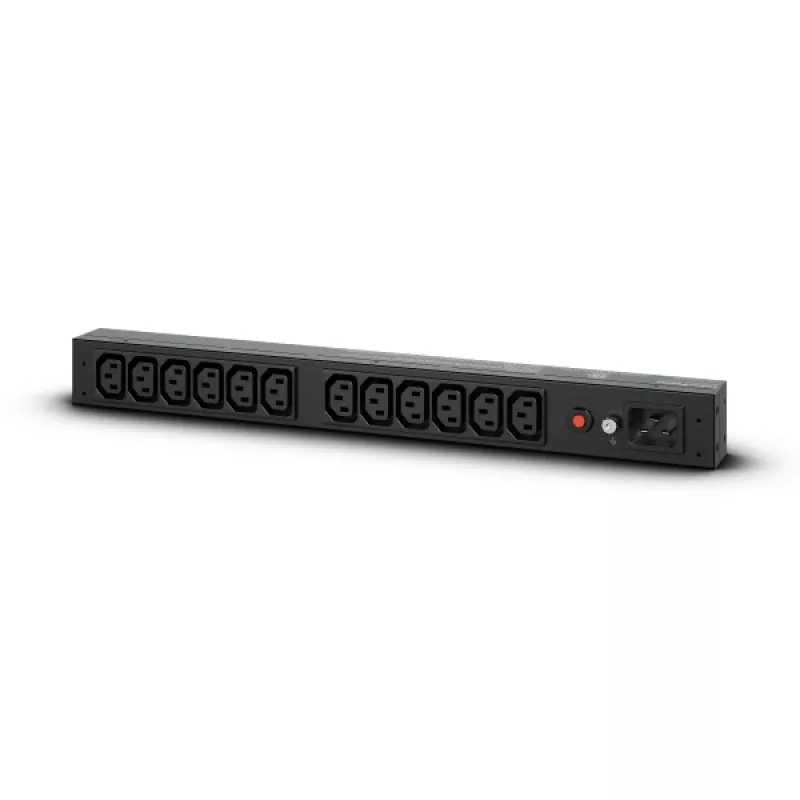

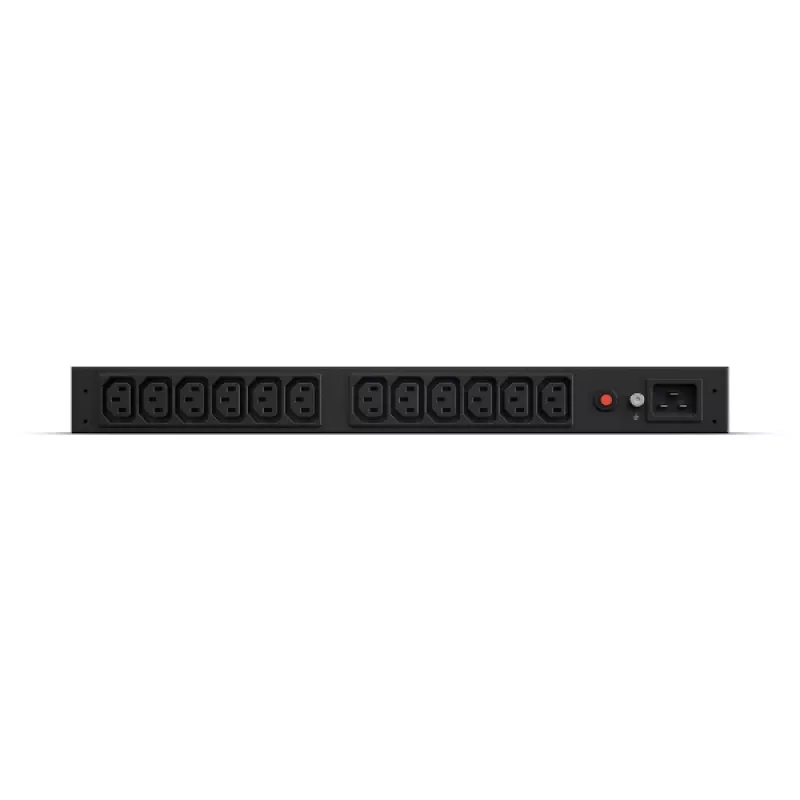

The CyberPower PDU20BHVIEC12R is a 1U rack-mount basic power distribution unit that delivers 208/230V output through a single IEC-320 C20 plug to twelve IEC-320 C13 receptacles. Housed in a metal chassis with a 10 ft (3.05 m) AC power cord and designed for datacenters and server rooms, it provides unfiltered electrical pass-through and a rugged build suitable for demanding electrical environments. The unit is ETL and RoHS certified and covered by a lifetime warranty against defects in design, assembly, material or workmanship.

Advantages

The PDU offers 12 IEC-320 C13 outlets from one IEC-320 C20 input, a compact 1U rack profile for horizontal or vertical mounting, integrated cord retention, and a metal industrial-grade housing for durability. It supports 208/230V at up to 20 A electrical capacity with circuit protection and includes a long 3.05 m power cord for flexible installation in rack environments.

Suitable for

• Data centers and server rooms
• Network cabinets and IT racks
• High-density equipment installations requiring multiple C13 outlets
• General purpose power distribution in professional AV and lab racks

Key specifications

• Model: PDU20BHVIEC12R
• Brand: CyberPower
• Type: Basic PDU, 1U rack-mount
• Input plug: IEC-320 C20 (single)
• Output receptacles: 12 × IEC-320 C13
• Nominal input voltage: 200–240 V (208/230 V listed)
• Maximum current: 16 A (product data) / rated capacity 20 A with circuit breaker (manufacturer spec)
• Frequency: 50/60 Hz
• Power cord length: 3.05 m (10 ft)
• Colour: Black
• Certifications: ETL, RoHS (meets UL60950_1 where applicable)
• Weight: 0.9 kg

How to use

Mount the PDU in a 1U rack space either horizontally or vertically using standard rack-mount hardware. Connect the IEC-320 C20 plug to a compatible UPS or power source rated for the unit's input voltage and current. Plug equipment power cords into the twelve IEC-320 C13 outlets. Use the integrated cord retention tray to secure the input cable and prevent accidental disconnection. Verify load and circuit protection ratings before connecting high-current devices.

Recommendations

Install the PDU in a properly grounded rack and ensure the upstream power source matches the nominal 200–240 V range. Distribute connected equipment to avoid exceeding the unit's maximum current rating and periodically inspect connections and the cord retention to maintain reliable operation.
