Dahua Câmara 4-em-1 5MP com Lente Dupla HAC-PTS1500C-E2-IL-A-0280B/0600B

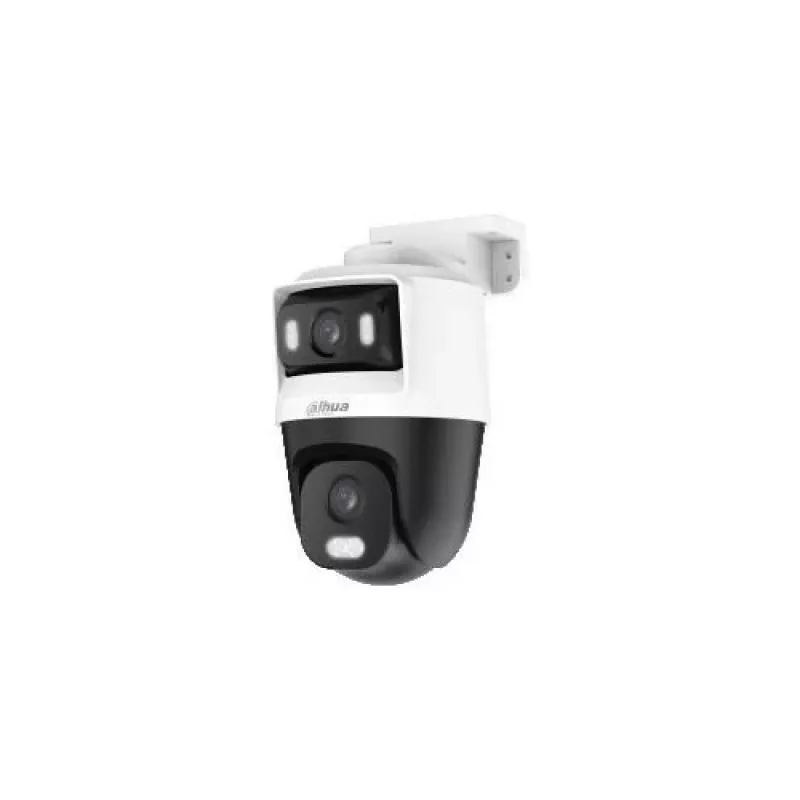

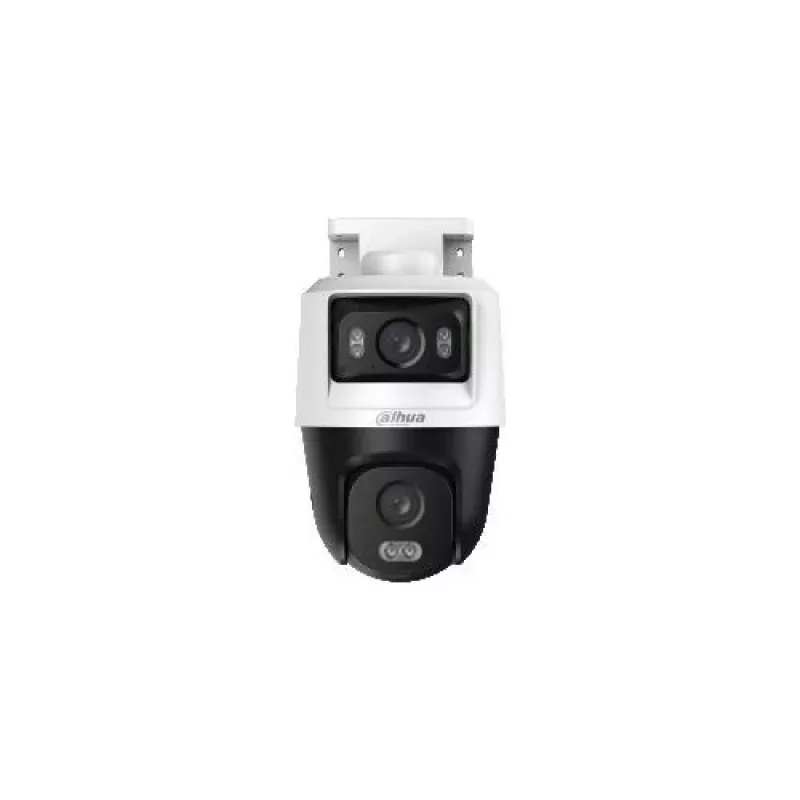

The Dahua HAC-PTS1500C-E2-IL-A-0280B/0600B is a high-performance 5MP 4-in-1 dual lens camera designed for versatile surveillance applications. With two fixed focal lengths (2.8mm and 6.0mm), it provides wide and narrow field of view options, making it suitable for both indoor and outdoor use. The camera supports multiple video outputs (HDCVI, AHD, TVI, CVBS) and features a built-in microphone for audio recording. Its IP67-rated metal housing ensures durability in harsh environments, while the IR distance of up to 20m enables clear night vision.

Advantages

This camera offers exceptional flexibility with its dual lens design, allowing users to choose between a wide 98° horizontal view or a narrower 50° view for detailed monitoring. The 5MP resolution delivers crisp images, and the digital WDR enhances visibility in high-contrast scenes. Easy installation and OSD menu support make it user-friendly.

Suitable for

• Residential and commercial security
• Retail stores and offices
• Warehouses and parking lots
• Outdoor perimeter monitoring

Key specifications

• Sensor: 5MP CMOS
• Resolution: 2592 x 1944
• Lens: Dual fixed-focal (2.8mm & 6.0mm)
• Video Output: 4-in-1 (HDCVI/AHD/TVI/CVBS)
• IR Distance: Up to 20m
• Audio: Built-in microphone
• WDR: Digital WDR
• Minimum Illumination: 0.005 Lux (color), 0 Lux (IR)
• Frame Rate: 5MP@20fps; 4MP@25/30fps; 1080P@25/30fps
• Ingress Protection: IP67
• Power Supply: 12V DC ±30%
• Power Consumption: Max 4.9W
• Operating Temperature: -40°C to +60°C
• Casing Material: Metal

Recommendations

For optimal performance, use a regulated 12V DC power supply and ensure proper cable connections. The camera is compatible with Dahua XVRs and other 4-in-1 DVRs. Regular cleaning of the lens and IR LEDs is recommended to maintain image quality.
