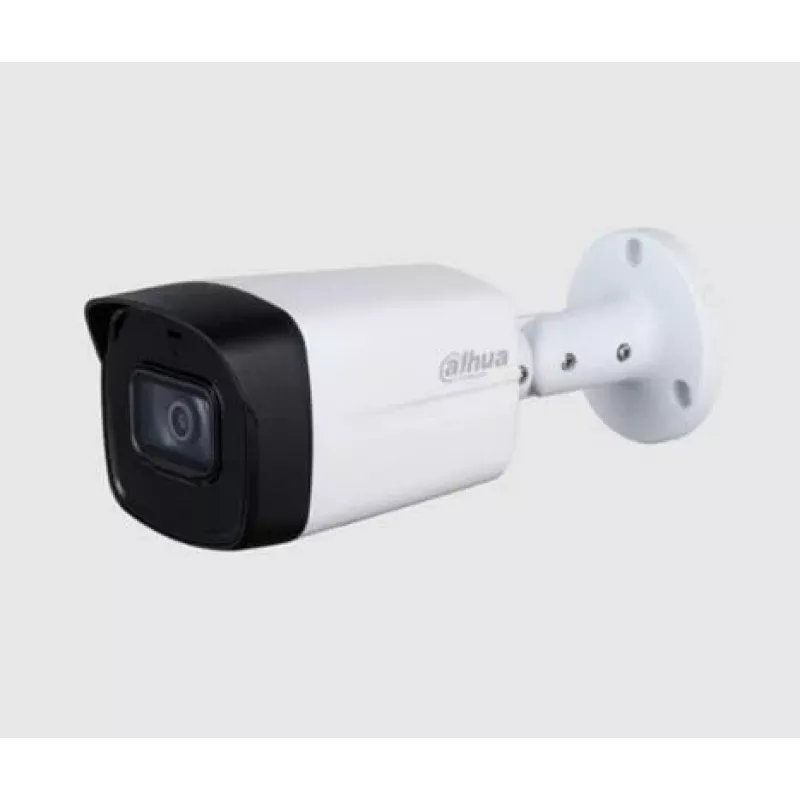

DAHUA Câmara HDCVI Bullet 5MP HFW1500TLM-IL-A-0280BS3DIP — 5MP, HDCVI, Bullet

Outdoor HDCVI camera with a fixed 2.8mm M12 lens, offering an effective resolution of 2880 × 1620 pixels in a compact white housing (198.9 × 80.2 × 76.2 mm). The camera is designed for outdoor installation, provides high sensitivity in low light down to 0.001 Lux, transmits video via the HDCVI interface and is powered from a 12 VDC supply (±30%).

Advantages

The HDCVI camera provides high effective resolution for detailed images and a wide 2.8mm focal length to cover broader scenes. Very low minimum illumination (0.001 Lux) improves performance in dim conditions, while the HDCVI interface ensures compatibility with HDCVI recording systems. The M12 lens mount simplifies installation and replacement of the fixed 2.8mm lens, and the compact white housing is suitable for various outdoor mounting locations.

Key specifications

• Type: Outdoor
• Video interface: HDCVI
• Focal length: 2.8mm
• Lens mount: M12
• Minimum illumination: 0.001 Lux
• Effective pixels: 2880 (H) × 1620 (V)
• Electronic shutter speed: PAL 1/25 s–1/100,000 s; NTSC 1/30 s–1/100,000 s
• Power supply requirements: 12 VDC (±30%)
• Colour: White
• Dimensions: 198.9 × 80.2 × 76.2 mm

How to use

Mount the camera on a stable outdoor surface and connect the video output with an HDCVI-compatible cable to an HDCVI recorder or monitor. Insert and secure the fixed 2.8mm lens into the M12 mount. Supply power from a 12 VDC source within the specified ±30% tolerance and adjust the camera position and angle to obtain the desired coverage. Protect exposed connectors and cable entries from weather during outdoor installation.

Recommendations

Use with an HDCVI recorder and a regulated 12 VDC power supply for reliable operation. Verify compatibility with your recording equipment and ensure weatherproofing of exposed connections. For best low-light results, choose a mounting position that minimizes backlight and reflections.
