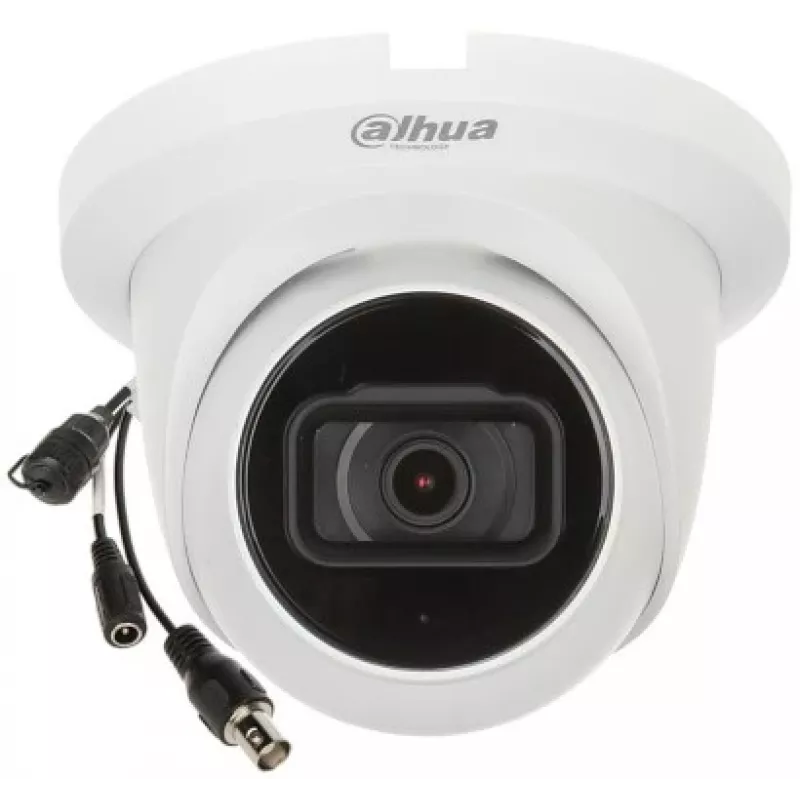

Dahua HAC-HDW2241TMQ-A-0280B-S2-DIP câmara eyeball HDCVI IR 2MP, 2.8mm, 1080p

The Dahua HAC-HDW2241TMQ-A-0280B-S2-DIP is a high-performance 2MP HDCVI IR eyeball camera designed for professional surveillance. Featuring Starlight technology and 120dB True WDR, it delivers clear images even in challenging lighting conditions. The camera supports multiple video formats (HDCVI/HDTVI/AHD/CVBS) switchable via DIP switch, making it versatile for various systems.

Advantages

With a 2.8mm fixed lens providing a 106° horizontal angle of view, this camera covers wide areas effectively. The built-in Smart IR ensures up to 30 meters of night vision, while the IP67 rating guarantees reliable outdoor operation. The metal front cover and plastic body offer durability.

Suitable for

• Residential and commercial security
• Outdoor surveillance in harsh environments
• Retail stores, offices, and warehouses
• Integration with HDCVI, HDTVI, AHD, or analog DVRs

Key specifications

• Resolution: 2MP (1920x1080)
• Sensor: 1/2.8" CMOS
• Lens: 2.8mm fixed, F1.6
• Video Output: HDCVI / HDTVI / AHD / CVBS (switchable)
• IR Distance: Up to 30m
• WDR: 120dB True WDR
• Minimum Illumination: 0.002 Lux (color), 0 Lux (IR on)
• Audio: Built-in microphone
• Power: 12V DC, max 4.9W
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, use with a compatible Dahua DVR or HDCVI recorder. Ensure proper power supply and weatherproof installation.
