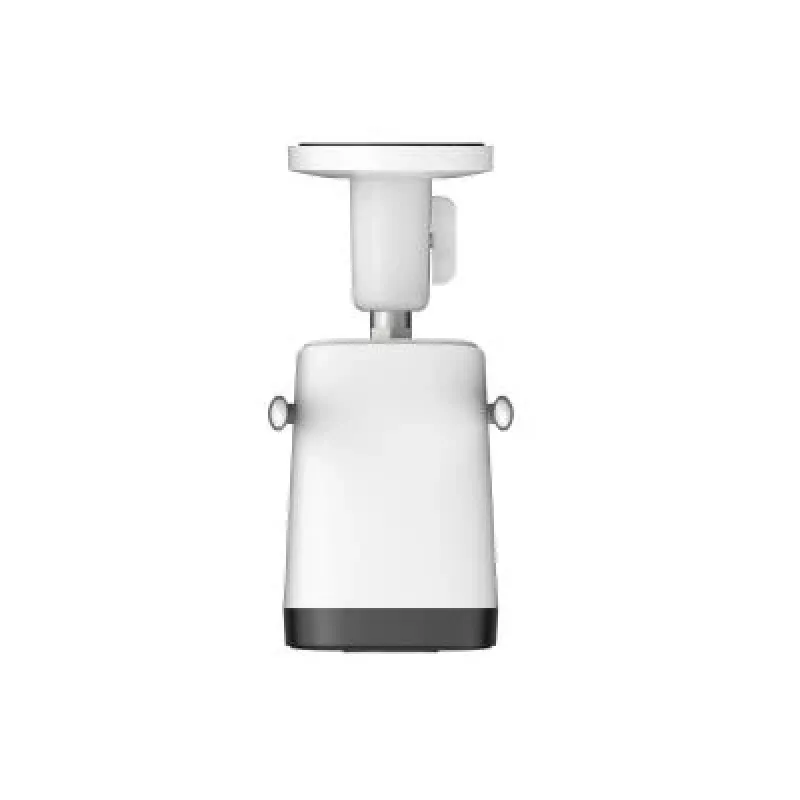

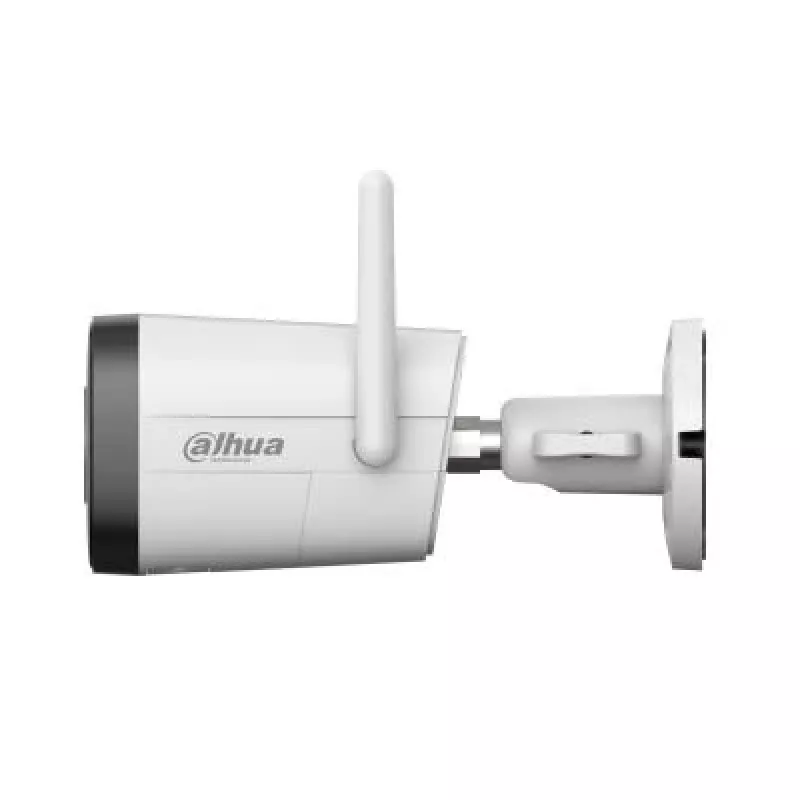

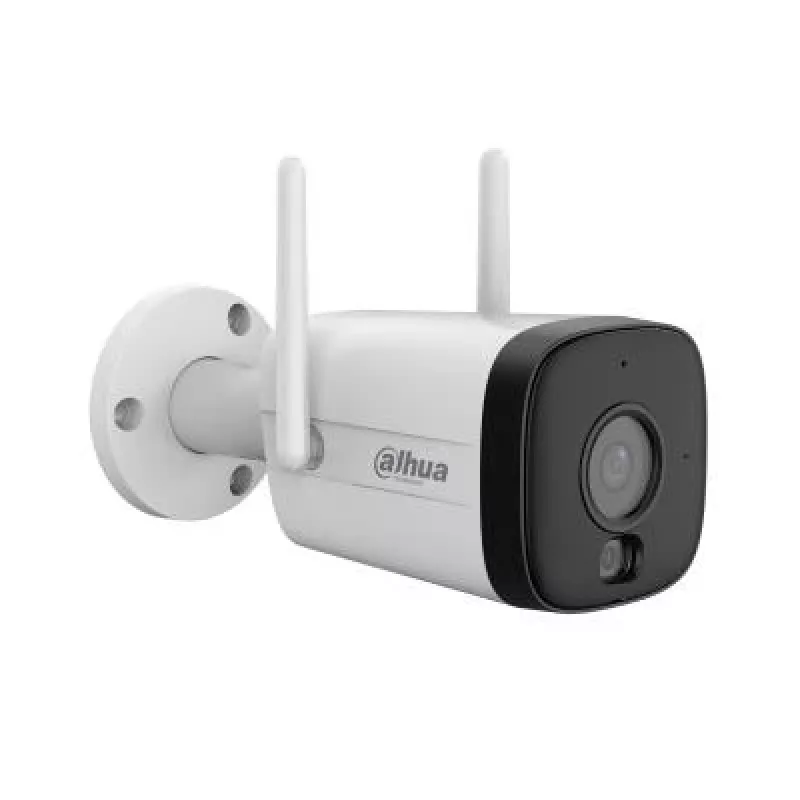

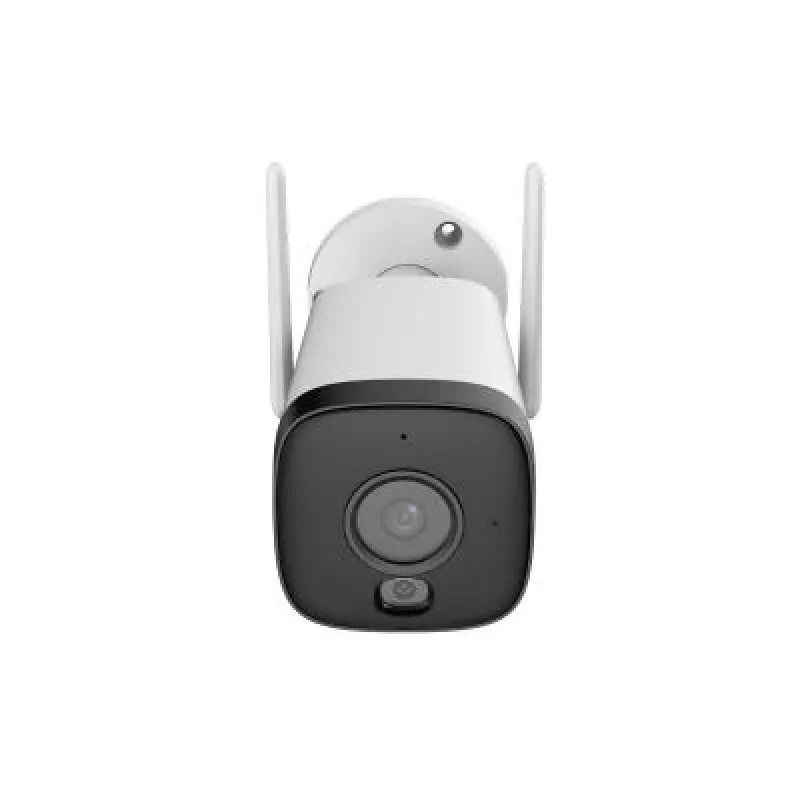

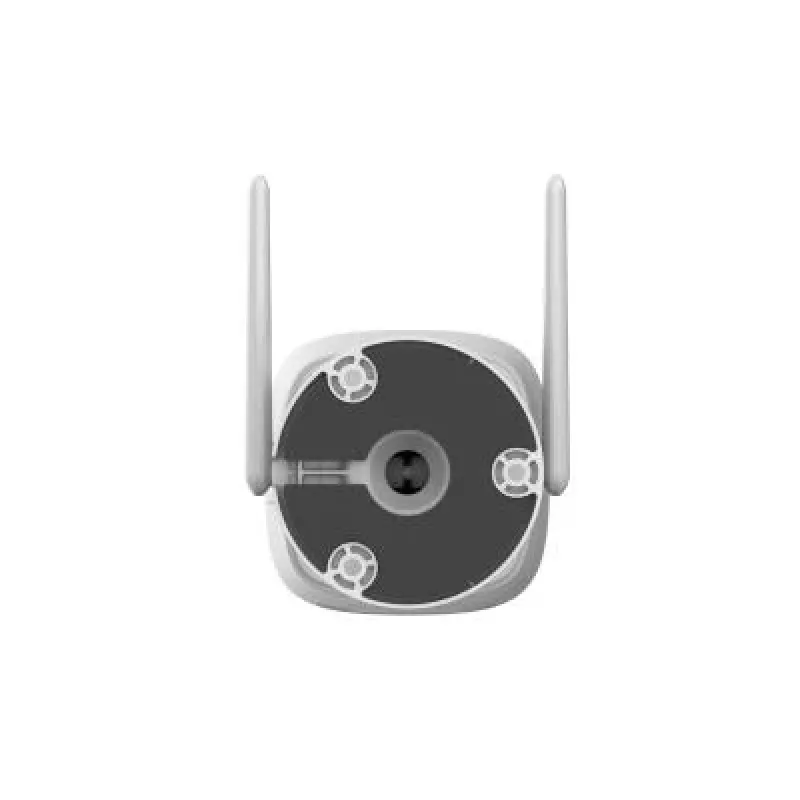

Dahua IPC-HFW1539DTK1-SW-PV-0280B 5MP câmara bullet Wi-Fi

The Dahua IPC-HFW1539DTK1-SW-PV-0280B is a 5 MP Wi-Fi bullet camera with a 1/2.7" CMOS sensor and H.265 compression. It features built-in multi-core IR and warm light illumination, a built-in microphone and speaker, and supports microSD cards up to 256 GB.

Key features

• 5 MP resolution (2880 × 1620) at 25/30 fps
• 1/2.7" CMOS sensor
• H.265 compression, Smart H.264+/H.265+
• Built-in multi-core IR and warm light illumination: IR range up to 30 m, warm light range up to 20 m
• Smart Dual Light
• Human and vehicle detection
• Built-in microphone and speaker
• MicroSD card support up to 256 GB
• Wi-Fi 6 and Bluetooth pairing
• IP67 protection
• 12 VDC power

Specifications

• Brand: Dahua
• MPN: IPC-HFW1539DTK1-SW-PV-0280B
• Camera type: Bullet
• Image sensor: 1/2.7" CMOS
• Effective sensor resolution: 5 MP
• Maximum resolution: 2880 × 1620
• Frame rate: up to 25/30 fps at 2880 × 1620
• Scanning system: Progressive
• Electronic shutter: Auto/Manual, 1/3 s – 1/100,000 s
• Minimum illumination: 0.007 lx @ F1.6 (color, 30 IRE); 0.0007 lx @ F1.6 (B/W, 30 IRE); 0 lx with illuminator on
• Signal-to-noise ratio: >56 dB
• Lens: Fixed focal
• Focal length: 2.8 mm
• Lens mount: M12
• Max aperture: F1.6
• Field of view: Horizontal: 104°; Vertical: 56°; Diagonal: 124°
• Minimum focusing distance: 1.1 m
• DORI range: Detection: 64 m; Observation: 25.6 m; Recognition: 12.8 m; Identification: 6.4 m
• Illuminator: Multi-core IR + warm light
• IR range: up to 30 m
• Warm light range: up to 20 m
• Illuminator control: Auto/Manual
• Video compression: H.265 / H.264 / H.264H / H.264B
• Smart Codec: Smart H.265+ / Smart H.264+
• Main stream: 2880 × 1620 at 1–25/30 fps
• Sub stream: 640 × 360 at 1–25/30 fps
• Number of streams: 2
• Supported resolutions: 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p
• Bitrate control: VBR / CBR
• Video bitrate: H.264: 32–6144 kb/s; H.265: 32–6144 kb/s
• Day/Night mode: Auto (ICR) / Color / B/W
• WDR: DWDR
• BLC: Yes
• HLC: Yes
• Noise reduction: 3D NR
• White balance: Auto, natural, street lamp, outdoor, manual, regional settings
• Motion detection: Yes, up to 4 rectangular areas
• Human detection: Yes
• Vehicle detection: Yes
• Privacy masks: Yes
• Audio compression: G.711a / G.711Mu / PCM / AAC-LC
• Audio sampling: 16 kHz
• Alarm events: No SD card, full SD card, SD card error, network loss, IP conflict, unauthorized access, motion detection, video tampering, audio detection, intensity change, SMD human/vehicle, security exception
• Network interface: RJ-45 10/100 Base-T
• Wi-Fi: IEEE 802.11b/g/n/ax, 2.4 GHz, EIRP ≤20 dBm
• Wi-Fi pairing: Via Bluetooth
• Network protocols: IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP, P2P, Auto Registration
• SDK / API: Yes
• Storage: MicroSD up to 256 GB
• Recording modes: Manual, video detection, schedule, alarm
• Software: Smart PSS Lite / DSS / DMSS
• Mobile devices: iOS / Android
• Power supply: 12 VDC
• Power consumption: Basic: 2.4 W; Max: 6.9 W
• Protection: IP67
• Operating temperature: –30°C to +50°C
• Operating humidity: ≤95% RH, non-condensing
• Housing material: Metal + plastic
• Dimensions: 172.4 × 83.3 × 75.0 mm
• Net weight: 0.3 kg
• Mounting: Wall, ceiling or pole
• Power supply included
• Lens included
