DAHUA PFB302S-V2 Suporte de parede para câmaras dome PTZ, branco, liga de alumínio

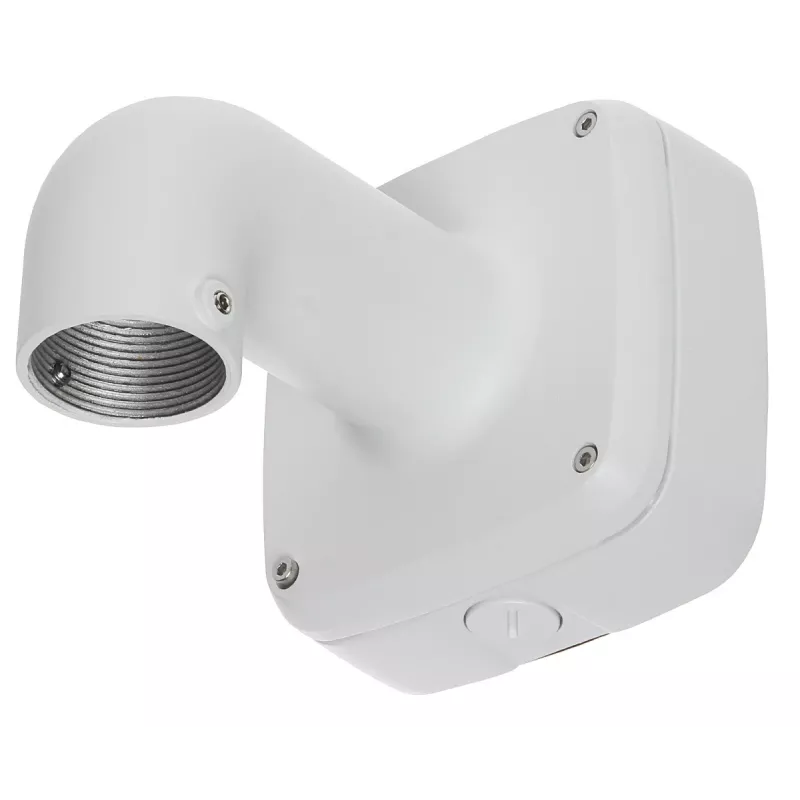

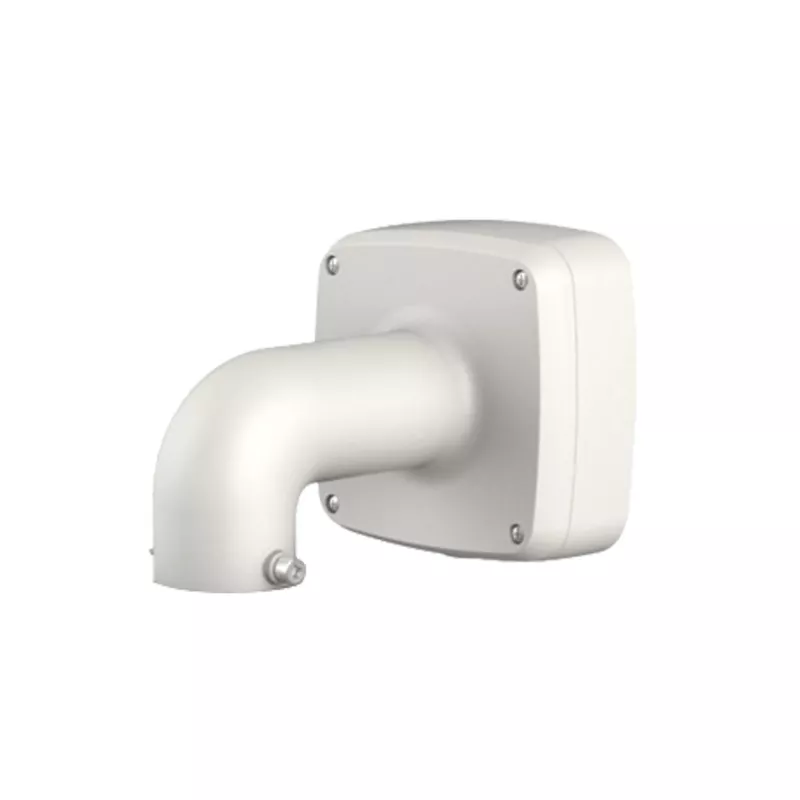

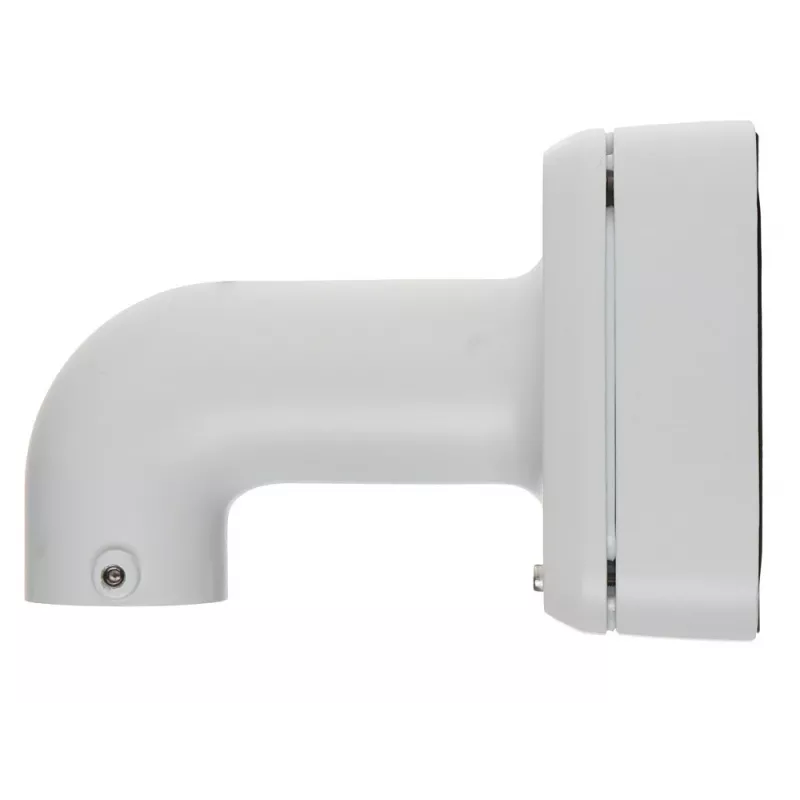

The DAHUA PFB302S-V2 is a high-quality wall mount bracket designed for professional surveillance systems. Constructed from die-cast aluminum alloy with a powder-coated finish, it offers excellent corrosion and weather resistance for both indoor and outdoor use. This mount is compatible with Dahua PTZ dome cameras from the SD5A, SD59, and SD6AL series, providing a secure and stable mounting solution.

Advantages

Robust aluminum alloy construction ensures durability and long service life. Integrated cable management keeps wiring neat and protected. The mount supports a load capacity of up to 3 kg (6.61 lbs) and operates reliably in temperatures from -40°C to +60°C (-40°F to +140°F). Its white powder-coated finish blends seamlessly with most camera housings.

Suitable for

• Dahua PTZ dome cameras (SD5A, SD59, SD6AL series)
• Professional indoor and outdoor surveillance installations
• Wall mounting applications requiring a sturdy bracket

Key specifications

• Material: Aluminum Alloy (die-cast)
• Mounting Type: Wall Mount
• Compatibility: Dahua PTZ Dome Cameras (SD5A, SD59, SD6AL Series)
• Load Bearing Capacity: 3 kg (6.61 lbs)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Operating Humidity: 0~90% RH
• Color: White
• Cable Management: Integrated
• Installation Environment: Indoor/Outdoor

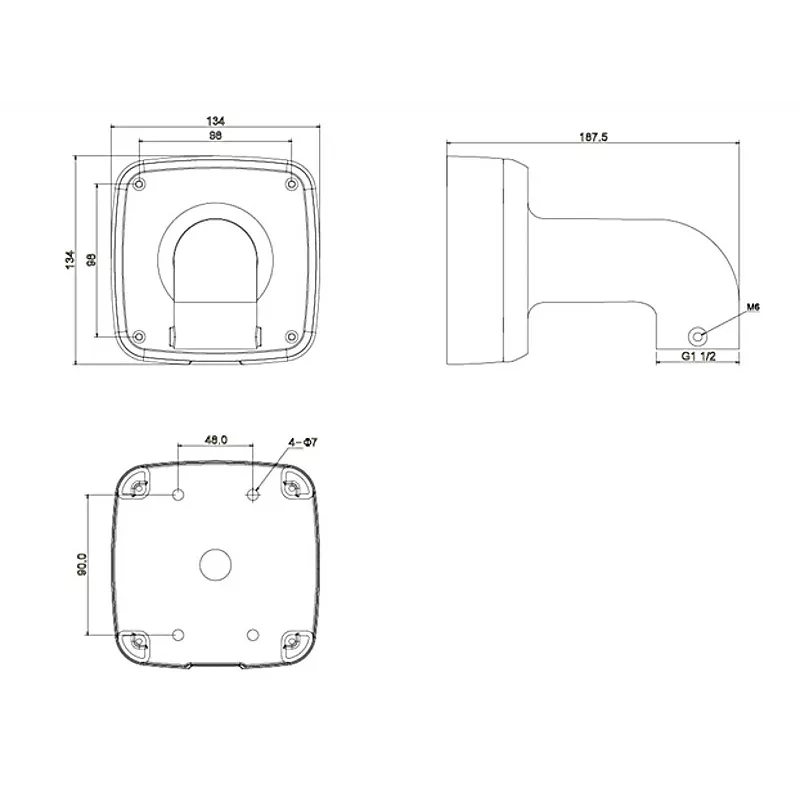

• Pipe Thread: G1 1/2"
• Finish: Powder-coated
• Corrosion Resistance: Yes
• Weather Resistance: Yes

Recommendations

For optimal performance, ensure the mounting surface is solid and capable of supporting the combined weight of the mount and camera. Use appropriate hardware for installation. This mount is designed specifically for Dahua PTZ dome cameras; verify compatibility with your camera model before purchase.
