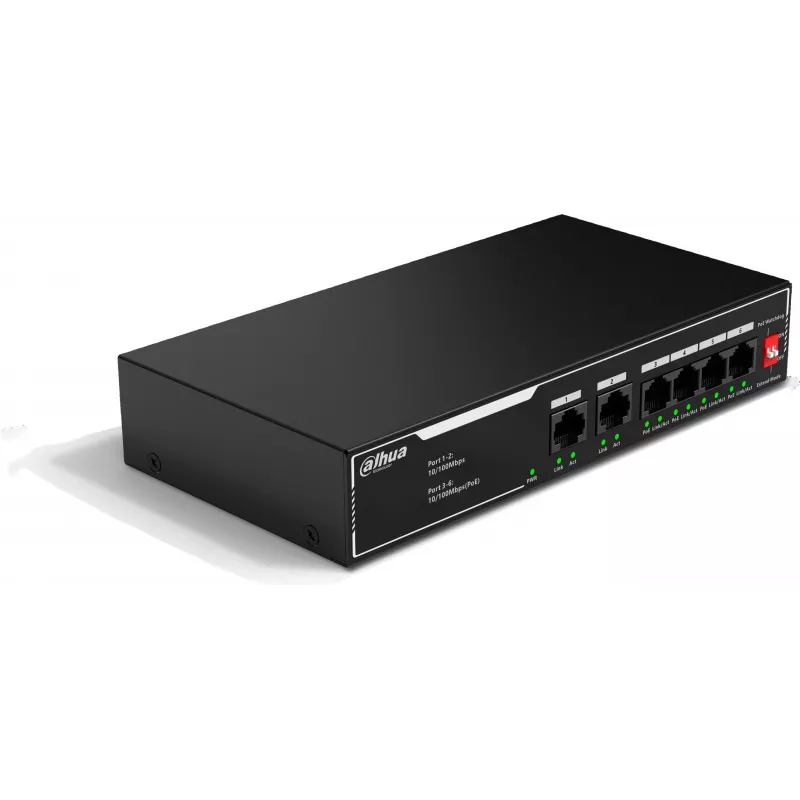

DAHUA SF1006LP Switch PoE não gerido, 6 portas, 4 portas PoE, orçamento 36W, secretária

The DAHUA SF1006LP is a compact and reliable unmanaged PoE switch designed for small to medium-sized networks. With 6 ports including 4 PoE ports, it delivers power and data over a single Ethernet cable, simplifying installation and reducing cable clutter. Ideal for IP cameras, wireless access points, and VoIP phones, this switch offers a total PoE budget of 36W, with Port 1 supporting up to 60W for high-power devices. Its plug-and-play design requires no configuration, making it a cost-effective solution for expanding your network.

Advantages

Easy deployment with no configuration needed; supports PoE+ and Hi-PoE on Port 1 for demanding devices; long-distance PoE transmission up to 250 meters; robust protection against ESD and surges; compact desktop form factor saves space.

Suitable for

• Small offices and home networks
• IP surveillance systems
• Wireless access point installations
• VoIP phone deployments

Key specifications

• Switch type: Unmanaged
• Total ports: 6
• PoE ports: 4 x 10/100 Mbps RJ45
• Uplink ports: 2 x 10/100 Mbps RJ45
• PoE standard: IEEE 802.3af, IEEE 802.3at, Hi-PoE (Port 1)
• Total PoE power budget: 36W
• Max PoE power per port: Port 1: 60W, Ports 2-4: 30W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table size: 2K
• Jumbo frame support: 1536 Bytes
• Power supply: DC 48V–57V
• Power consumption (full load): 36W
• Operating temperature: –10°C to +55°C (14°F to 131°F)
• Protection: ESD, Surge
• Special features: Long Distance PoE (up to 250m), PoE Watchdog
• Mounting type: Desktop

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is designed for indoor use only. Ensure adequate ventilation to prevent overheating.
