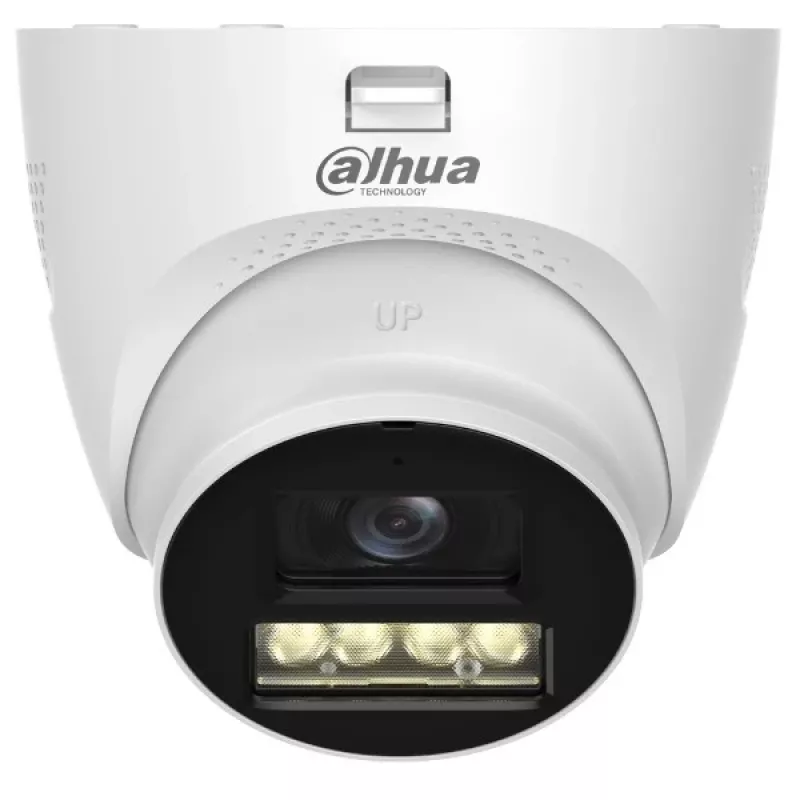

Dahua Technology Lite HAC-HDW1500TQ-IL-T câmara de segurança dome, interior e exterior, montagem em teto/parede

The Dahua Technology Lite HAC-HDW1500TQ-IL-T is a dome security camera suitable for indoor and outdoor use, with ceiling or wall mounting. It features a 5 MP CMOS sensor and provides a maximum resolution of 2880 × 1620. The camera offers IR and warm light illumination with a range of 40 m, and includes a built-in microphone and speaker for two-way communication.

Key features

• 5 MP CMOS sensor
• Maximum resolution: 2880 × 1620
• IR and warm light illumination range: 40 m
• Built-in microphone and speaker
• Two-way communication (CVI, TVI)
• Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
• Smart IR & WL (CVI, TVI); WL mode; IR mode
• 3D NR noise reduction
• Privacy masks: 8 areas, rectangular
• Operating temperature: –40 °C to +60 °C

Specifications

• Brand: Dahua
• MPN: HAC-HDW1500TQ-IL-T-0280B-DIP
• Image sensor: 5 MP CMOS
• Scanning system: Progressive
• Electronic shutter speed: PAL: 1/25 s – 1/100 000 s; NTSC: 1/30 s – 1/100 000 s
• Minimum illumination: 0.01 [email protected] (Color, 30 IRE); 0.001 [email protected] (B/W, 30 IRE); 0 lux (with illuminator on)
• Signal-to-noise ratio: >65 dB
• Illumination range: IR: 40 m; Warm light: 40 m
• Illuminator control: Auto / Manual
• Number of LEDs: 4 (multi-core light)
• Lens type: Fixed focal
• Autofocus: No
• Lens mount: M12
• Focal length: 3.6 mm; 2.8 mm
• Maximum aperture: F1.6
• Angle of view: 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°; 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
• Aperture control: Fixed
• Minimum focusing distance: 2.8 mm: 0.8 m; 3.6 mm: 1.3 m
• DORI range: 2.8 mm: Detect: 59.8 m; Observe: 23.9 m; Recognize: 12.0 m; Identify: 6.0 m; 3.6 mm: Detect: 77.0 m; Observe: 30.8 m; Recognize: 15.4 m; Identify: 7.7 m
• Frame rate: CVI: PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL/NTSC: 5M 16:9@20 fps; CVBS: PAL/NTSC: 960H
• Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1665)
• Day/Night mode: Auto (ICR) / Color / B/W
• BLC: BLC; HLC; WDR
• WDR: DWDR
• White balance: Auto / Area balance
• Gain: Auto / Manual
• Noise reduction: 3D NR
• Illumination mode: Smart IR & WL (CVI, TVI); WL mode; IR mode
• Mirror: Yes
• Privacy masks: On / Off (8 areas, rectangular)
• Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
• Audio: Built-in microphone: Yes; Audio support: CVI; TVI; Microphone range: 8 m; Two-way communication: Yes (CVI, TVI); Speaker: Yes; Speaker range: 8 m
• Video output: CVI / TVI / AHD / CVBS (1 BNC port, DIP switch)
• Power supply: 12 V DC (±30%) – recommended power supply with dedicated adapter for one camera
• Power consumption: Max. 9.5 W (with WLED on)
• Operating temperature: –40 °C to +60 °C
