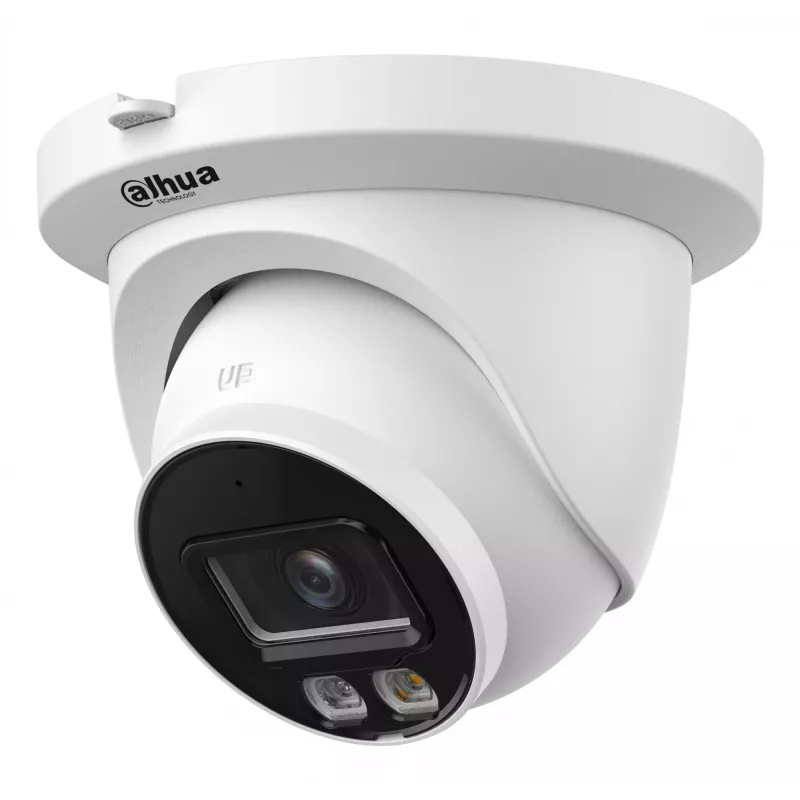

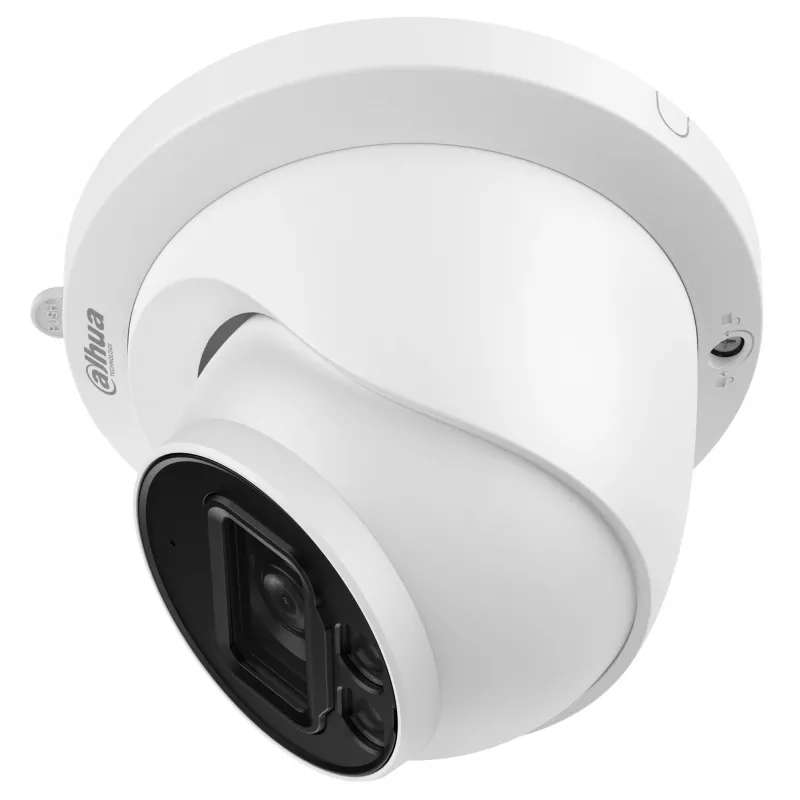

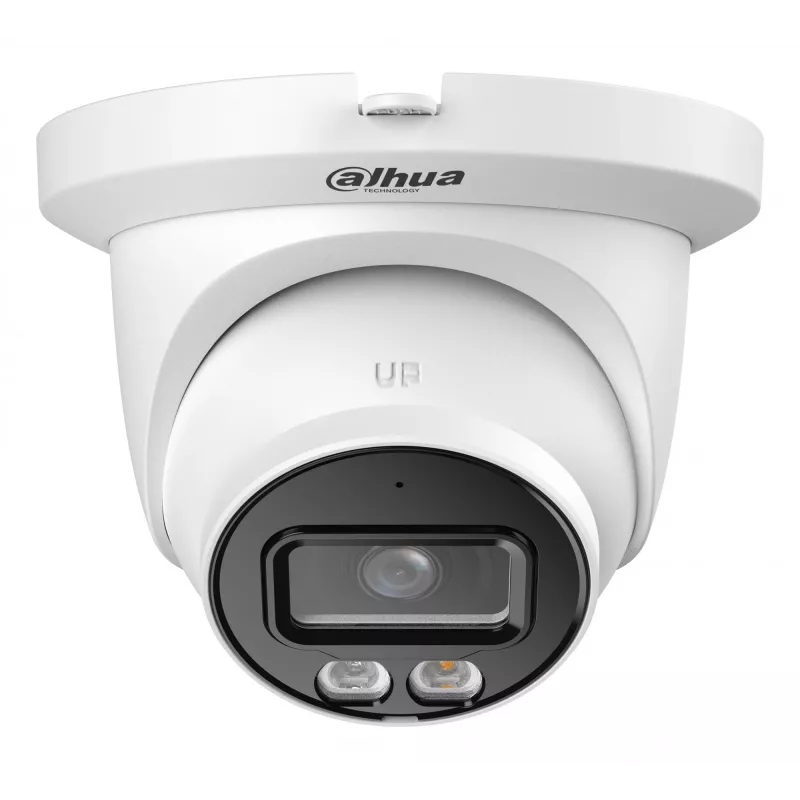

Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B câmara de segurança turret IP câmara de segurança interior 3288 x 1850 Pixel teto/parede/poste

Dahua WizSense IPC-HDW2649TM-S-IL-0280B is an indoor turret IP security camera designed for wired Ethernet installations. It features a 1/2.7" CMOS sensor capable of up to 6 MP (3288×1850) output, a 112° horizontal field of view and support for 360° rotation modes. The camera provides advanced low-light performance down to 0.0007 lx and integrated illumination with IR and warm light, together with smart video analytics and H.265 compression for efficient storage and network use.

Advantages

The camera combines high-resolution imaging and low-light sensitivity with efficient H.265 compression to reduce bandwidth and storage requirements. Built-in IR and warm light extend effective monitoring to nighttime scenes, while intelligent detection features such as intrusion and tripwire help distinguish between humans and vehicles. A wide set of image enhancement functions — including WDR, 3D noise reduction, HLC and BLC — maintain image clarity across varying indoor lighting conditions. The unit supports Micro SD storage up to 256 GB and offers flexible installation on ceilings, walls or poles.

Suitable for

• Indoor retail and shop floor monitoring
• Office spaces and reception areas
• Corridors, stairwells and entrance halls
• Storage rooms and inventory control
• Indoor areas requiring motion-triggered recording and analytics

Key specifications

• Image sensor: 1/2.7" CMOS, low luminance, high definition
• Maximum resolution: 3288×1850 (up to 6 MP) and 2688×1520 supported at 25/30 fps
• Frame rate: up to 30 fps (depending on resolution and codec)
• Video codec: H.265 / H.264 with SMART H.264+/H.265+ support
• Horizontal field of view: 112°
• Rotation support: 360° rotation mode
• Low-light sensitivity: minimum illumination 0.0007 lx
• Night vision: IR LED up to 30 m; built-in warm light up to 30 m
• Wide dynamic range and noise reduction: WDR, 3D NR, HLC, BLC
• Intelligent functions: intrusion, tripwire, motion detection and alarm rules
• Storage: Micro SD card slot supporting up to 256 GB
• Audio: built-in microphone
• Connectivity: wired Ethernet LAN (PoE and 12 VDC supported)
• Mounting: ceiling, wall or pole
• Ingress protection: IP67 for dust and water resistance
• Color: white
• Weight: approximately 0.53 kg

How to use

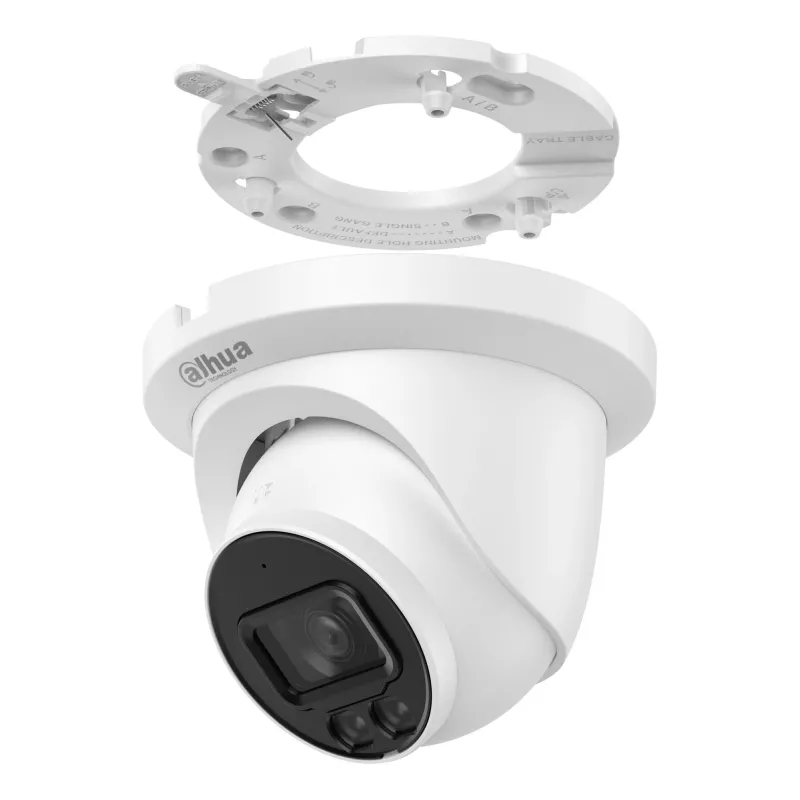

Install the camera on a ceiling, wall or pole using the turret mounting hardware and ensure the housing is oriented for the desired 112° field of view. Connect the device to a PoE-capable switch or provide 12 VDC power and connect to the local wired Ethernet network. Configure basic settings — resolution, frame rate and compression (H.265 recommended for lower bandwidth) — via the Dahua web interface or compatible NVR. Enable intelligent detection rules (intrusion, tripwire) and set sensitivity and object classification to match the monitored environment. Insert a Micro SD card if local recording is required and format it through the camera menu.

Recommendations

Position the camera to minimize direct strong light sources in the frame and use the rotation mode to fine-tune coverage. For storage efficiency, use H.265 with ROI settings and adjust IR/warm light usage according to ambient light to avoid overexposure. Regularly check firmware updates and test alarm rules and SD card health to ensure continuous operation.
