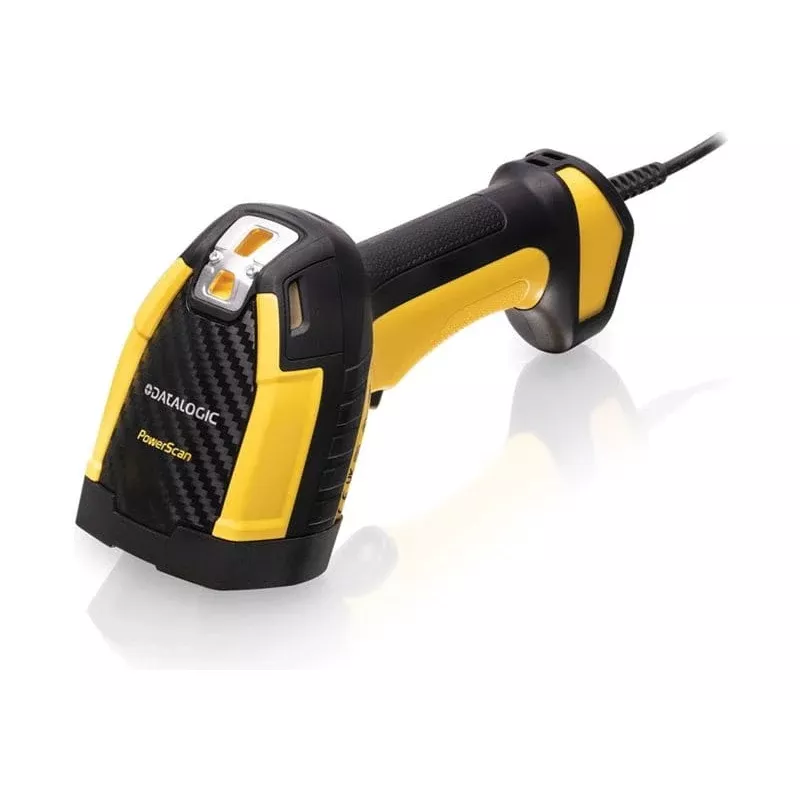

Datalogic PowerScan PD9630-AR Auto Range USB/RS-232

The Datalogic PowerScan PD9630-AR stands apart from ordinary barcode scanners with its extraordinary auto-range reading capability—capturing 1D codes from contact up to an astonishing 20 meters and 2D codes up to 11 meters. Built for demanding industrial environments, this corded scanner combines rugged durability with advanced imaging technology, ensuring reliable performance even in the harshest conditions.

Highlights

• Auto-range 2D area imager reads 1D, 2D, postal, and stacked barcodes from near contact to 20 m (65.6 ft) for 1D and 11 m (36 ft) for 2D
• Rugged IP65-rated housing withstands dust, water jets, and 2.5 m (8.2 ft) drops onto concrete
• Versatile connectivity: USB, RS-232, and Keyboard Wedge interfaces for seamless integration
• High-resolution 1280 x 800 pixel sensor with white LED illumination and red laser dot aiming
• Datalogic Green Spot good-read feedback plus beeper and vibration for confirmation in noisy environments
• Wide operating temperature range from -20°C to 50°C (-4°F to 122°F) and 20 kV ESD protection

In daily use

Operators benefit from the PD9630-AR's intuitive aiming and fast reading, even on damaged or low-contrast codes (minimum 15% print contrast). The scanner's motion tolerance of 3.0 m/s (118 in/s) allows swift scanning without pausing. Its ergonomic design and balanced weight reduce fatigue during long shifts, while the yellow/black high-visibility colour enhances safety and quick identification on busy work floors.

Full specifications

• Scanner type: 2D Area Imager
• Connectivity: Corded
• Host interfaces: USB, RS-232, Keyboard Wedge
• Decoding capability: 1D, 2D, Postal, Stacked codes
• Reading range: Auto Range (contact to 20 m for 1D, up to 11 m for 2D)
• IP rating: IP65
• Drop specification: 2.5 m (8.2 ft) onto concrete
• Light source: White LED
• Aiming system: Red Laser Dot
• Image sensor: 1280 x 800 pixels
• Minimum print contrast: 15%
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Feedback indicators: Beeper, Good Read LED, Datalogic Green Spot, Vibrator
• Colour: Yellow/Black
• Power source: Host powered or external power supply
• Motion tolerance: 3.0 m/s (118 in/s)
• Field of view: 48° H x 30° V
• ESD protection: 20 kV air discharge, 10 kV contact discharge

Final note

For warehouses, logistics, and manufacturing where long-range scanning and rugged reliability are non-negotiable, the PowerScan PD9630-AR delivers unmatched performance and durability, backed by Datalogic's proven industrial pedigree.
