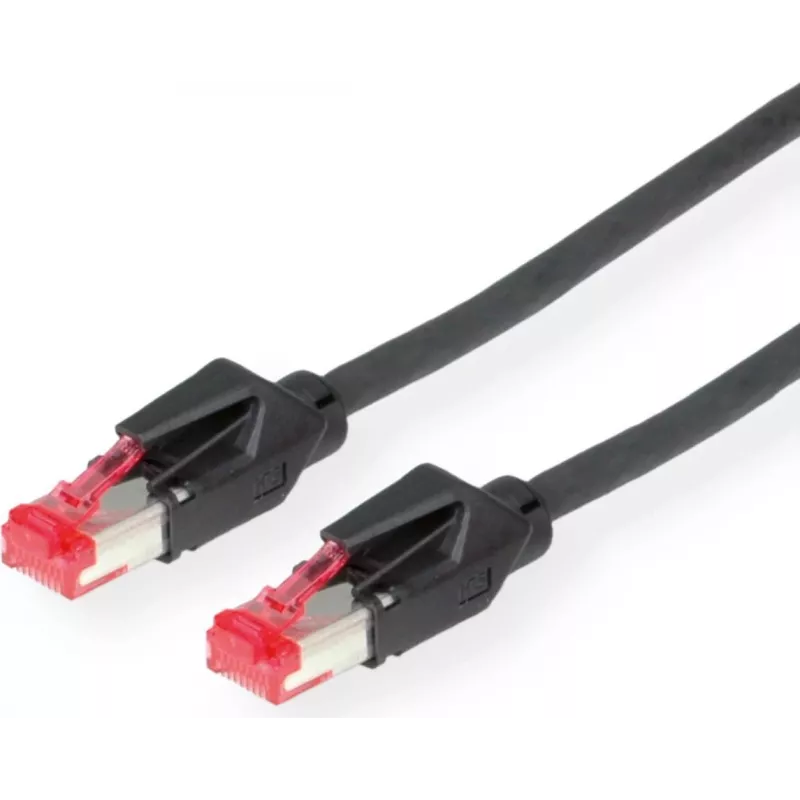

Dätwyler 21.05.0005 cabo de patch Cat 6 S/FTP, ficha RJ-45 para ficha RJ-45, 0,5 m, preto, LSZH, 10 Gbps

Experience 10 Gigabit Ethernet performance in a compact 0.5-meter package. This Dätwyler patch cable features S/FTP shielding with individually foiled pairs and an overall braid, delivering exceptional immunity to EMI and crosstalk for flawless high-speed data transfer.

Overview

The Dätwyler 21.05.0005 is a premium Cat 6 patch cable engineered for demanding network environments. It connects any RJ-45 equipped devices—servers, switches, routers, patch panels, or workstations—with a short, tidy link that reduces clutter without compromising signal integrity. The black LSZH jacket is halogen-free, emitting low smoke and toxic gases in case of fire, making it ideal for offices, data centers, and public buildings where safety is paramount.

What stands out

• S/FTP shielding: each twisted pair is foiled, plus an overall braided shield, providing superior protection against alien crosstalk and electromagnetic interference.
• LSZH (Low Smoke Zero Halogen) jacket: meets strict fire safety regulations, producing minimal smoke and no corrosive halogens.
• Bare copper conductors (AWG 26/7) ensure excellent conductivity and long-term reliability, unlike cheaper copper-clad aluminum.
• Supports up to 10GBASE-T over short distances and 1000BASE-T at full 100 meters, with a bandwidth of 250 MHz.
• Molded strain relief and snagless boots protect the locking tabs and extend cable life.

Technical details

• Cable length: 0.5 m (50 cm)
• Connectors: RJ-45 male to RJ-45 male
• Cable standard: Category 6 (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Black
• Data transfer rate: Up to 10 Gbps (10GBASE-T) over short distances, 1 Gbps (1000BASE-T) at 100 m
• Bandwidth: 250 MHz
• Conductor material: Bare copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring scheme: TIA/EIA-568B
• Number of pairs: 4 twisted pairs
• Flame retardancy: IEC 60332-1-2
• Operating temperature: -20°C to 60°C

Our verdict

For short, high-performance links in safety-conscious environments, this Dätwyler patch cable delivers robust shielding and fire-safe materials in a compact, reliable package.
