DEANTE Ralo de Chão 100 cm - Ralo de Duche Linear Reversível em Aço Inoxidável

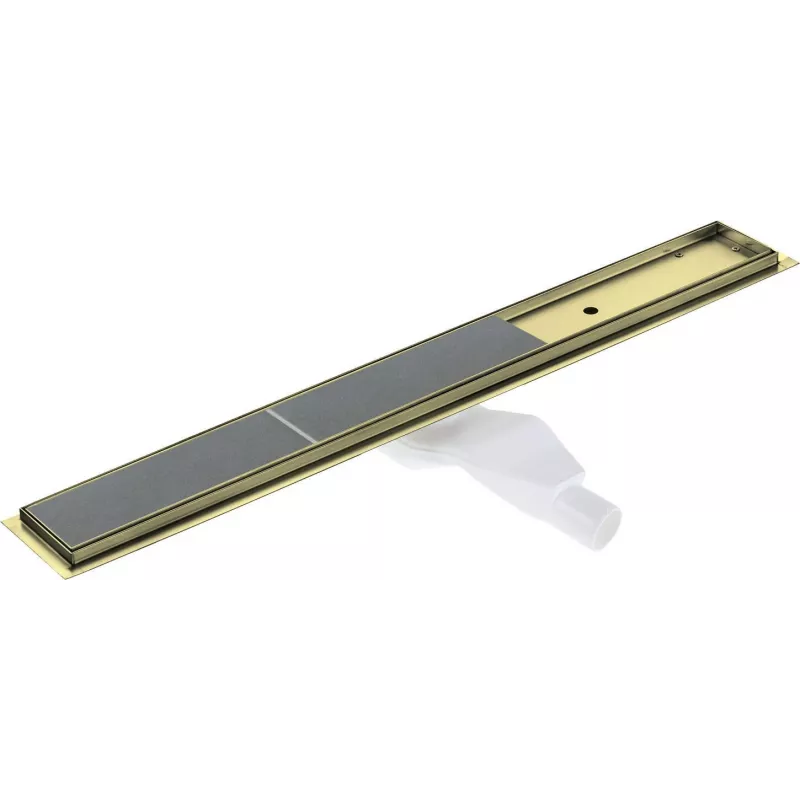

The DEANTE KOS_R10D floor drain is a premium linear shower drain designed for modern bathrooms and walk-in showers. With a length of 100 cm and a reversible grid, it offers flexibility in installation and a sleek, minimalist appearance. Crafted from high-quality AISI 304 stainless steel, this drain ensures long-lasting durability and corrosion resistance. The removable odor trap and easy cleaning access make maintenance simple, while the included waterproofing flange allows for seamless integration with liquid membrane waterproofing systems.

Advantages

This floor drain combines functionality with aesthetic appeal. The reversible grid can be used with tiles or as a brushed stainless steel finish, adapting to your design preferences. The high flow rate of 48 L/min efficiently handles water drainage, and the adjustable feet ensure precise height alignment during installation. The K3 load class makes it suitable for domestic use, providing reliable performance in residential bathrooms.

Suitable for

• Walk-in showers
• Bathrooms with linear drainage systems
• Tile-in installations
• Liquid membrane waterproofing applications

Key specifications

• Length: 1000 mm (100 cm)
• Overall Width: 110 mm
• Channel Width: 70 mm
• Minimum Installation Height: 80 mm
• Outlet Diameter: DN50 (50 mm)
• Grid Material: Stainless Steel AISI 304
• Channel Material: Stainless Steel AISI 304
• Flow Rate: 48 L/min
• Load Class: K3
• Includes: Hook for grid removal, sealing membrane, adjustable feet

Recommendations

For optimal performance, ensure proper slope during installation and connect to a suitable drainage system. The removable siphon allows easy cleaning; regular maintenance is recommended to prevent blockages.
