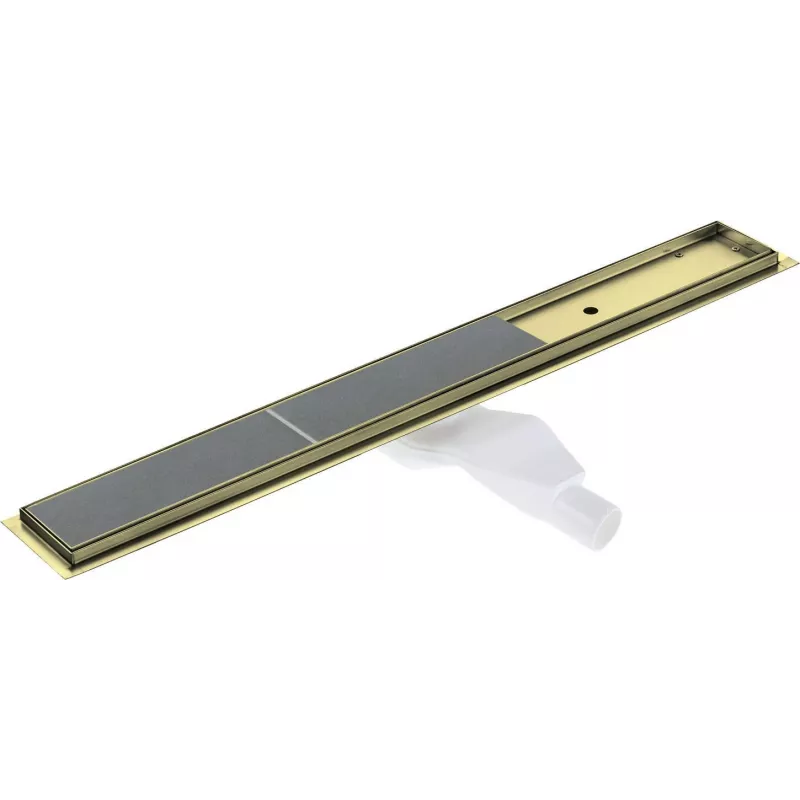

DEANTE Ralo de chão reversível 80 cm

The DEANTE Reversible 80 cm Floor Linear Drain is a high-quality stainless steel linear drain designed for modern bathrooms and wet rooms. Its reversible grille allows for either a tile insert or a flat stainless steel finish, seamlessly blending with your floor design. With a length of 800 mm and a flow rate of up to 60 L/min, it ensures efficient water drainage while maintaining a sleek appearance.

Advantages

Made from AISI 304 stainless steel, this drain offers excellent corrosion resistance and durability. The reversible grille provides design flexibility, and the removable wet siphon with odor trap ensures hygiene and easy cleaning. The integrated waterproofing flange and adjustable feet simplify installation, while the K3 load capacity (up to 300 kg) makes it suitable for residential use.

Suitable for

• Shower floors and wet rooms
• Bathroom renovations and new constructions
• Modern and minimalist interior designs

Key specifications

• Drain Type: Linear Floor Drain
• Grille Design: Reversible (Tile Insert / Flat Stainless Steel)
• Material: AISI 304 Stainless Steel
• Length: 800 mm
• Overall Width (with flange): 110 mm
• Visible Grille Width: 70 mm
• Minimum Installation Depth: 65 mm
• Outlet Diameter: 50 mm
• Flow Rate: 50-60 L/min
• Siphon Type: Removable, Wet Siphon (Odor Trap)
• Adjustable Feet: Yes
• Waterproofing Flange: Yes, integrated
• Connection Type: Horizontal
• Load Capacity: K3 (up to 300 kg)
• Finish: Brushed Stainless Steel
• Cleaning Access: Easy-clean siphon and hair trap
• Included Accessories: Grille removal hook, sealing membrane, adjustable feet
• Certifications: CE, EN 1253

Recommendations

For optimal performance, ensure proper slope during installation and regular cleaning of the siphon and hair trap. This drain is designed for horizontal connection to a 50 mm waste pipe.
