DEANTE Ralo de duche linear 80 cm - reversível

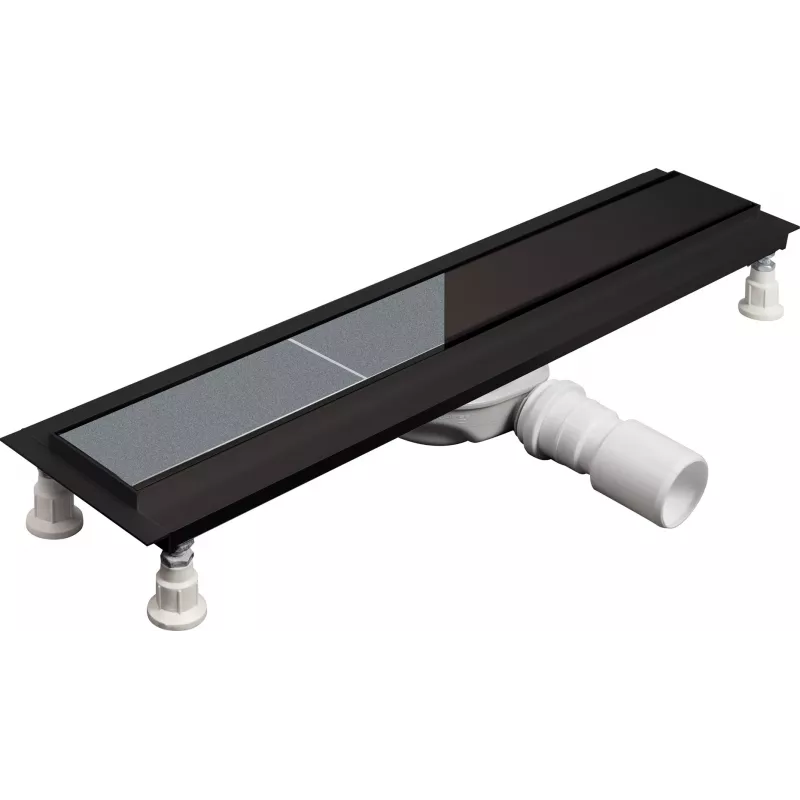

The DEANTE KNS_N08D Linear Shower Drain is a high-quality, reversible floor drain designed for modern walk-in showers and bathrooms. Crafted from AISI 304 stainless steel with a brushed finish, it offers durability, corrosion resistance, and a sleek appearance. The drain features a wet siphon (water trap) that effectively prevents odors, and its reversible grate allows for flexible installation. With a length of 800 mm and a flow rate of 50-60 L/min, it ensures efficient water drainage. The integrated waterproofing flange and adjustable feet simplify installation, while the removable siphon makes cleaning easy. Certified to CE and EN 1253 standards, this drain supports loads up to 300 kg.

Advantages

Reversible grate design for versatile installation; high flow rate prevents water pooling; easy-to-clean removable siphon; robust stainless steel construction; integrated waterproofing flange for reliable sealing.

Suitable for

• Walk-in showers
• Bathrooms with linear drainage
• Residential and commercial wet areas

Key specifications

• Product Type: Linear Shower Drain
• Length: 800 mm
• Grate Type: Reversible (Tileable / Brushed Stainless Steel)
• Material: AISI 304 Stainless Steel
• Outlet Diameter: 50 mm
• Flow Rate: 50-60 L/min
• Siphon Type: Wet Siphon (Water Trap)
• Minimum Installation Depth: 65 mm
• Adjustable Feet: Yes
• Waterproofing Flange: Integrated
• Cleaning: Removable Siphon for Easy Cleaning
• Load Capacity: Up to 300 kg
• Finish: Brushed Stainless Steel
• Application: Walk-in Showers, Bathrooms
• Certification: CE, EN 1253
• Grate Width: 60 mm
• Connection Type: Horizontal
• Odor Stop: Yes
• Included Accessories: Hook for grate removal, sealing membrane

Recommendations

Ensure the drain is installed with proper slope for optimal water flow. Compatible with standard 50 mm waste pipes. For best results, use with tileable grate inserts to match your floor finish.
