DEHN 204109 suporte de cabo de telhado ajustável aço inoxidável 60-100mm

Stainless steel roof conductor holder with 60–100 mm adjustable height for lightning protection and earthing systems.

Overview

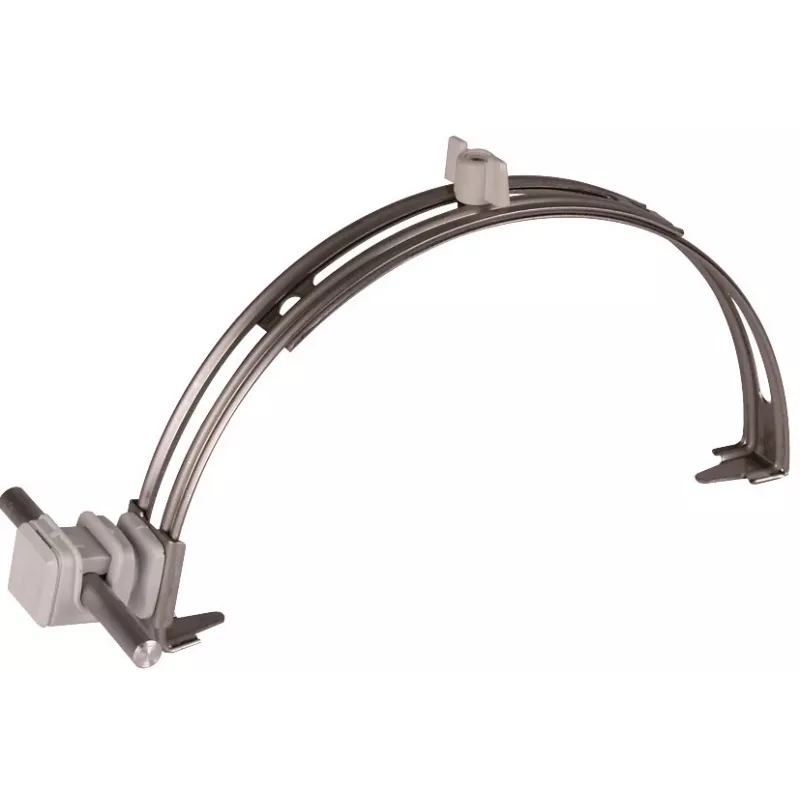

The DEHN 204109 is an adjustable roof conductor holder made of stainless steel (NIRO). It is designed for mounting round conductors with a diameter of 8–10 mm on roof tiles and various roof coverings. The holder provides a height adjustment range of 60–100 mm, allowing precise alignment on uneven surfaces.

What stands out

• High corrosion resistance and UV resistance for long-term outdoor use
• Adjustable height from 60 to 100 mm to accommodate different roof profiles
• Compatible with round conductors 8–10 mm in diameter
• Base plate dimensions approximately 80 x 80 mm for stable mounting
• Operating temperature range from -50 °C to +100 °C

Technical details

• Material: Stainless steel (NIRO)
• Product type: Roof conductor holder
• Design: Adjustable
• Conductor type: Round conductor
• Conductor diameter range: 8 - 10 mm
• Height adjustment range: 60 - 100 mm
• Mounting type: For roof tiles / various roof coverings
• Application: Lightning protection systems, earthing systems
• Corrosion resistance: High
• UV resistance: High
• Standard compliance: EN 62561-1
• Color: Metallic
• Temperature range: -50 °C to +100 °C

Our verdict

A robust and versatile roof conductor holder that ensures reliable conductor fixing with easy height adjustment, suitable for demanding outdoor environments.
