DEHN 308030 Conector de ligação para redondo 6-22mm em plano até 40mm, aço, zincado

Connect round conductors from 6 to 22 mm diameter to flat conductors up to 40 mm width with this DEHN connection clamp, built from galvanized steel for high corrosion resistance in lightning protection and earthing systems.

Overview

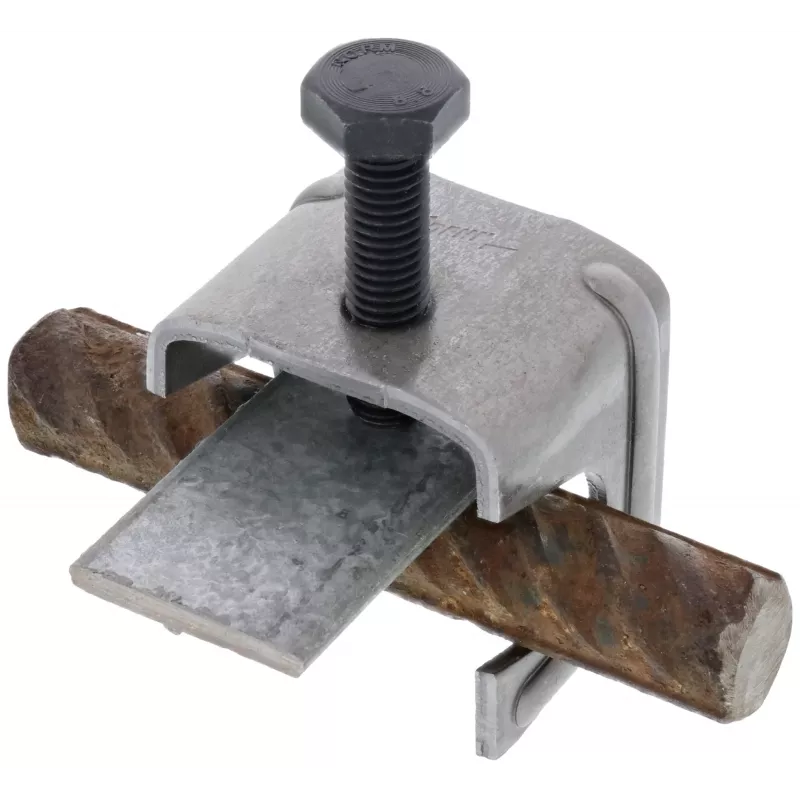

The DEHN 308030 is a screw clamp designed for cross connections between round and flat conductors. It accommodates round conductors with diameters from 6 mm to 22 mm and flat conductors up to 40 mm wide. The clamp body is made of steel with a galvanized finish, ensuring durability in outdoor and indoor installations.

What stands out

• Wide conductor range: round 6–22 mm, flat up to 40 mm
• Galvanized steel construction for corrosion resistance
• M8 screw connection for secure clamping
• Suitable for lightning protection and earthing applications

Technical details

• Product type: Connection clamp
• Conductor types: Round and flat
• Round conductor diameter: 6 - 22 mm
• Flat conductor width: up to 40 mm
• Material: Steel
• Surface finish: Galvanized
• Screw size: M8
• Number of conductors: 2 (one round, one flat)
• Installation environment: Outdoor and indoor
• Temperature range: -40°C to +80°C
• UV resistance: Yes
• Function: Cross connection (round to flat)

Our verdict

A robust and versatile clamp for reliable round-to-flat conductor connections in earthing and lightning protection systems.
