DEHN 308035 terminal de ligação universal para condutores redondos e planos, aço galvanizado a quente

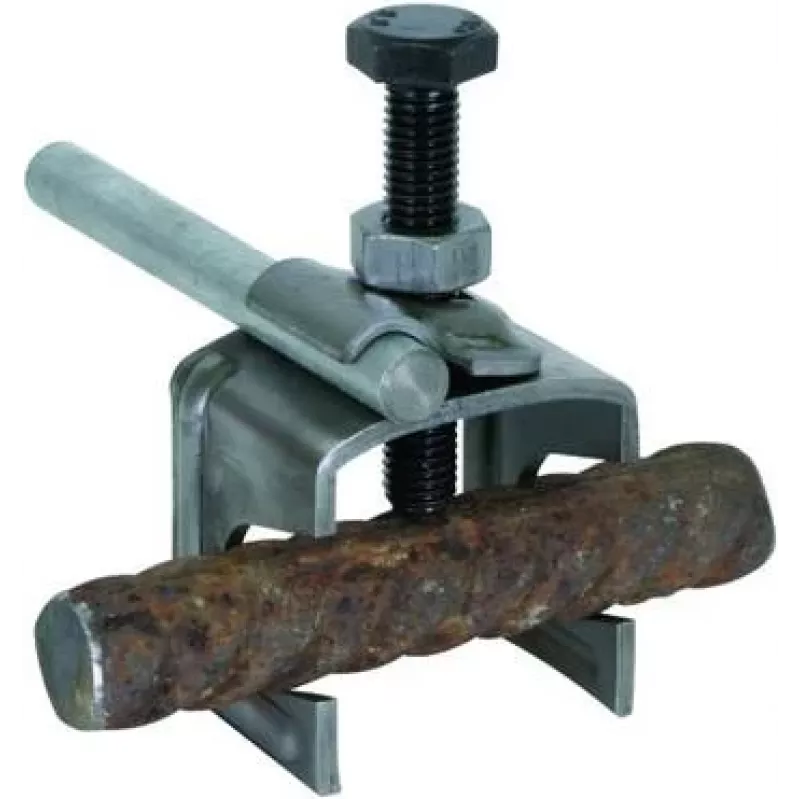

The DEHN 308035 universal connection clamp joins round and flat conductors in lightning protection and earthing systems. Its hot-dip galvanised steel body withstands harsh environments, and the M8 hexagon screw ensures a secure mechanical and electrical connection.

Overview

This clamp is designed for cross, parallel, and T-connections, accommodating round conductors from 8 to 10 mm diameter and flat conductors up to 30 mm width. It meets DIN EN 62561-1 and is suitable for both indoor and outdoor use.

What stands out

• Hot-dip galvanised steel for high corrosion resistance
• Supports round (Rd 8-10 mm) and flat (FL 30 mm) conductors
• Universal connection types: cross, parallel, T-connection
• Lightning current carrying capacity per DIN EN 62561-1

Technical details

• Material: Steel, hot-dip galvanised (St/tZn)
• Conductor compatibility: Round 8-10 mm, Flat 30 mm
• Connection: Screw connection with M8 hexagon head screw
• Number of conductors: 2
• Standard: DIN EN 62561-1

Our verdict

A robust and versatile clamp for professional lightning protection and earthing installations, built to last in demanding conditions.
