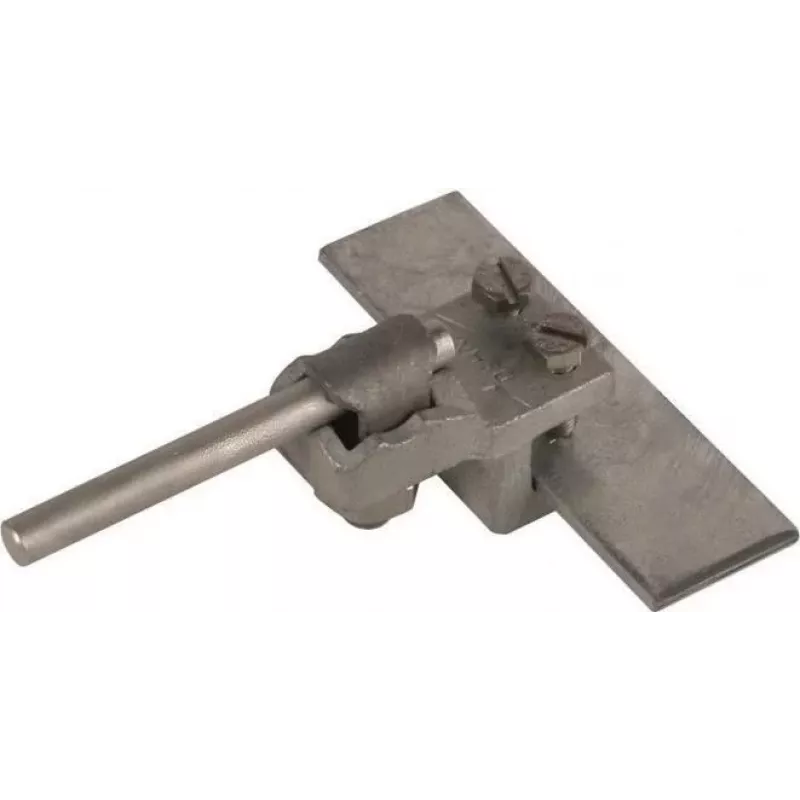

DEHN 370014 terminal de ligação para Rd 7-10 mm TG/tZn

The DEHN 370014 connection clamp is engineered for robust cross-connections between round conductors of 7–10 mm diameter and flat conductors from 30–40 mm width, making it a dependable choice for lightning protection and earthing systems. Its hot-dip galvanized steel construction ensures high corrosion resistance, suitable for outdoor and industrial environments where durability is critical.

Highlights

• Cross clamp design connects round to round or round to flat conductors
• Hot-dip galvanized steel (tZn) for long-term corrosion protection
• Heavy-duty screw connection with M8 hardware
• Complies with DIN EN 62561-1 (VDE 0185-561-1)

In daily use

Installation is straightforward: position the clamp over the conductors, tighten the M8 screw, and the connection is secure. The clamp accommodates up to two conductors, enabling efficient cross-bonding in equipotential bonding and earthing applications. Its UV-resistant finish maintains integrity even under prolonged sun exposure.

Full specifications

• Product type: Connection Clamp
• Clamp type: Cross Clamp
• Conductor compatibility (round): Rd 7-10 mm
• Conductor compatibility (flat): FL 30-40 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized (tZn)
• Connection method: Screw connection
• Screw size: M8
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Design: Heavy Duty
• Installation location: Outdoor, Industrial
• UV resistance: Yes

Final note

For reliable cross-connections in harsh environments, the DEHN 370014 delivers the strength and corrosion resistance required for professional lightning protection installations.
