DEHN 371008 TG7tZn abraçadeira universal para condutores redondos e planos

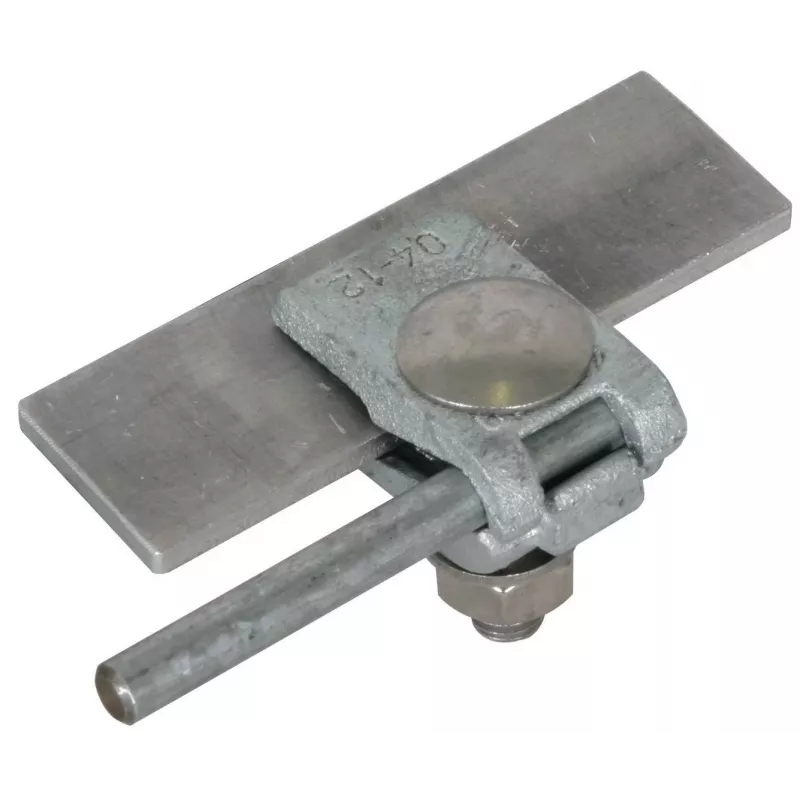

The DEHN 371008 TG7tZn connection clamp is engineered for reliable joining of round conductors (7–10 mm diameter) to flat conductors (30–40 mm width) or structural elements in lightning protection and earthing systems. Its hot-dip galvanized steel construction ensures high resistance to weathering, making it suitable for both outdoor and indoor use.

Highlights

• Universal connection clamp for round and flat conductors
• Hot-dip galvanized steel for corrosion protection
• Hexagonal screw M8 with 15 Nm tightening torque
• Complies with EN 62561-1

In daily use

The clamp is installed by screw fastening, providing a secure and durable connection. It accommodates two conductors and is designed for straightforward integration into existing lightning protection or earthing systems.

Full specifications

• Material: Hot-dip galvanized steel
• Conductor Type (Round): 7–10 mm diameter
• Conductor Type (Flat): 30–40 mm width
• Application: Connection of round to flat conductors or structural elements
• Standard Compliance: EN 62561-1
• Corrosion Protection: Hot-dip galvanized
• Screw Type: Hexagonal screw
• Screw Size: M8
• Tightening Torque: 15 Nm
• Clamp Type: Universal connection clamp
• Usage: Lightning protection and earthing systems
• Installation Method: Screw fastening
• Suitable for: Outdoor and indoor use
• Resistance to Weathering: High
• Product Family: DEHN + SÖHNE TG
• Number of Conductors: 2

Final note

Designed for professional lightning protection installations, this clamp offers a robust and weather-resistant solution for conductor connections.
