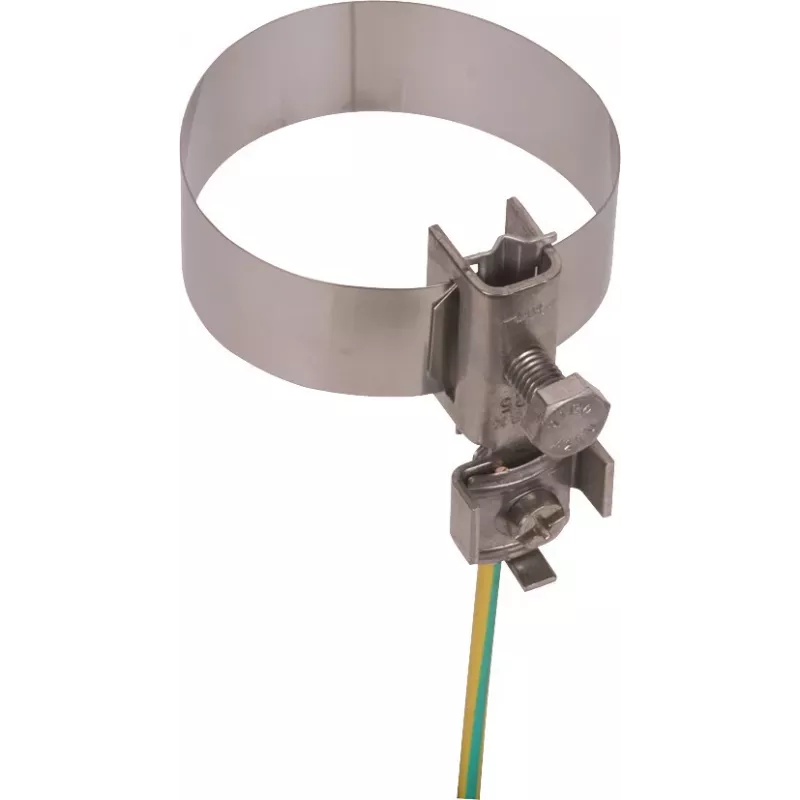

DEHN 540911 Abraçadeira de tubo para fita de terra para tubos 26,9-114,3 mm, aço inoxidável V2A

Earthing band pipe clamp for connecting flat conductors to pipes with diameters from 26.9 to 114.3 mm. The clamp body and screws are made of stainless steel (V2A / 1.4301), providing high corrosion resistance for earthing and lightning protection systems. It accommodates flat conductors up to 40 x 4 mm and is mounted directly on the pipe with a screw connection.

Advantages

Stainless steel construction ensures long-term reliability in outdoor and corrosive environments. The wide clamping range covers common pipe sizes from 1" to 4", reducing the need for multiple clamp types. The screw connection allows secure and repeatable installation.

Suitable for

• Earthing and lightning protection systems
• Connecting flat conductors to metallic pipes
• Industrial and building installations requiring corrosion-resistant clamps

Key specifications

• Pipe diameter range: 26.9 - 114.3 mm
• Max. flat conductor dimensions: 40 x 4 mm
• Material: Stainless steel (V2A / 1.4301)
• Connection type: Screw connection
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)

Recommendations

For optimal performance, ensure the pipe surface is clean before mounting and tighten the screws to the manufacturer's recommended torque. Use with flat conductors up to 40 x 4 mm.
